ACTIVESHOP Lafomed Autoclave standard line lfss12aa (02) with printer 12-l class-b medical

High-quality autoclaves

Lafomed is a brand of high-end autoclaves that have gained recognition in more than 50 countries worldwide. These autoclaves meet all medical standards and guidelines. They are characterized by a low failure rate and feature microprocessors that utilize the latest generation of electronic modules. Lafomed Autoclaves They are characterized by high efficiency and durability, and their operation is simple and intuitive.

Top-of-the-line autoclave

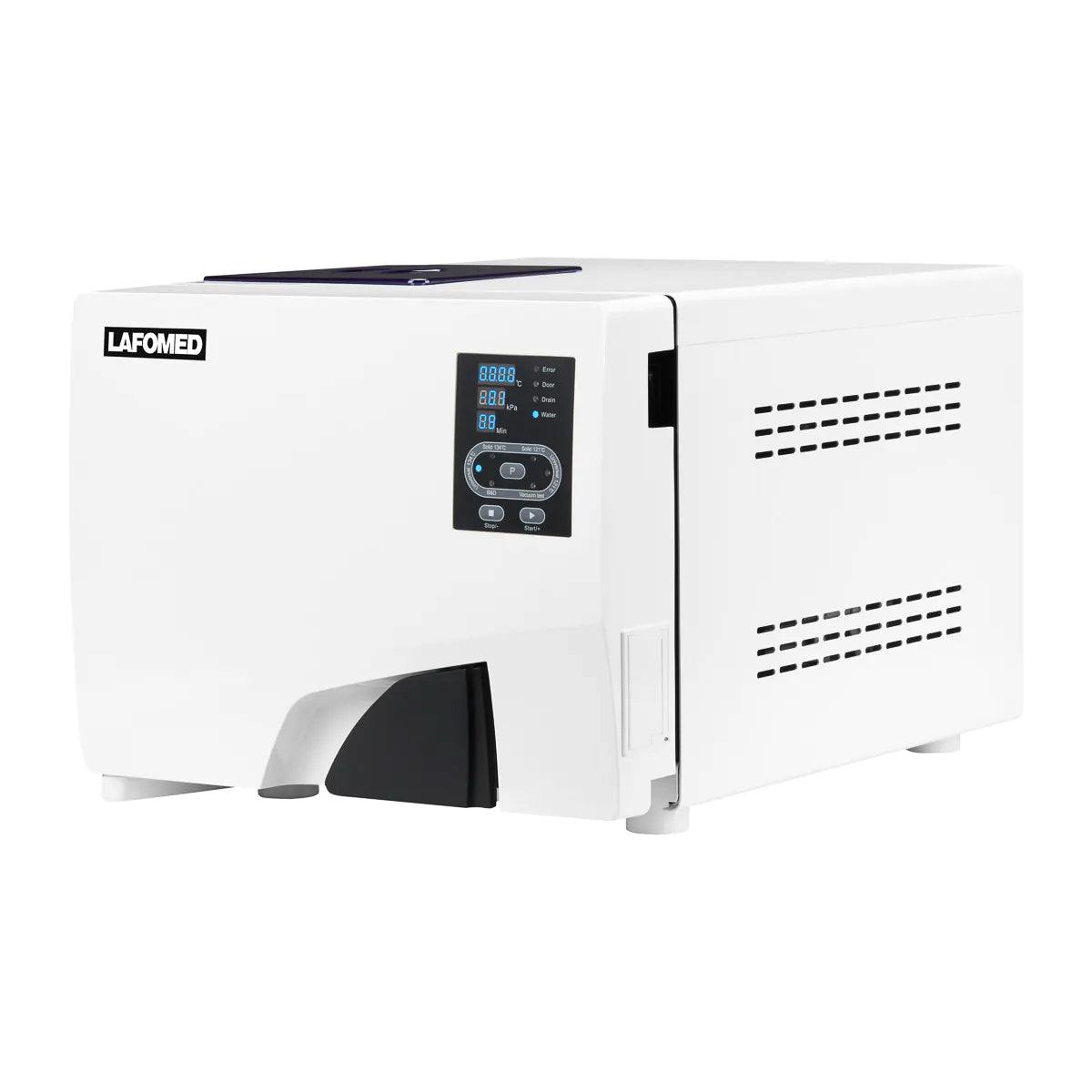

The Lafomed Standard 12 L autoclave with printer This device is particularly recommended for hospital wards, dental and ophthalmology departments, as well as biology institutes conducting research projects. It will also be perfect for hair salons, beauty parlors, tattoo studios, and aesthetic medicine salons. The unit is designed for the sterilization of both medical and non-medical instruments. Thanks to the collaboration between the technical departments of Lafomed and Activeshop, a device has been developed that satisfies even the most demanding users. Sterilization with a Class B medical autoclave ensures complete effectiveness and safety.

Functionality you'll appreciate

It is a compact device that has a A 12-liter autoclave combined with a built-in thermal printer. It has a LED display and one It has a USB port that allows you to connect a storage device to save the cycle results. 6 fully automatic programs ; 4 sterilization programs and 2 test programs. shortest sterilization program Including drying, the entire process takes only 8 minutes. The device has a built-in tank for clean (distilled) water used for sterilization, as well as a tank for used water, which can be drained from the front of the device. Self-diagnostic system It effectively protects against damage and preserves the device's lifespan. The following provides additional safety: Double door locking system.

Automatic sterilization programs

Sterilization program	Type of cargo	Total cycle time*
121°C Uniform	Unpackaged	24 min
121°C Universal	Packaged and unpackaged	35 min
134°C Uniform	Unpackaged	8 min
134°C Universal	Packaged and unpackaged	19 min
Bowie & Dick Test	Bowie Dick test package	4 min
Vacuum test	-	15 min

* Refers to the time after the device has warmed up.

Extended Warranty (24+12)

For the Lafomed Standard Autoclaves applies 24-month warranty. It is worth noting that the warranty does not depend on the number of autoclave cycles. It is possible to The warranty can be extended by a further 12 months , provided that a paid technical inspection is carried out at an authorized service center before the basic warranty period expires. This option applies to devices purchased from August 22, 2022 onwards. Furthermore, a Technical pass included free of charge!

Specification:

Medical Class B	This is the highest class of autoclaves, enabling the most effective sterilization of unpackaged and packaged items, regardless of the type of instrument.
High build quality	Autoclave manufactured according to ISO 13485 and CE 1023 certified. It also meets the requirements of the European standard BS EN 13060:2014+A1:2018.

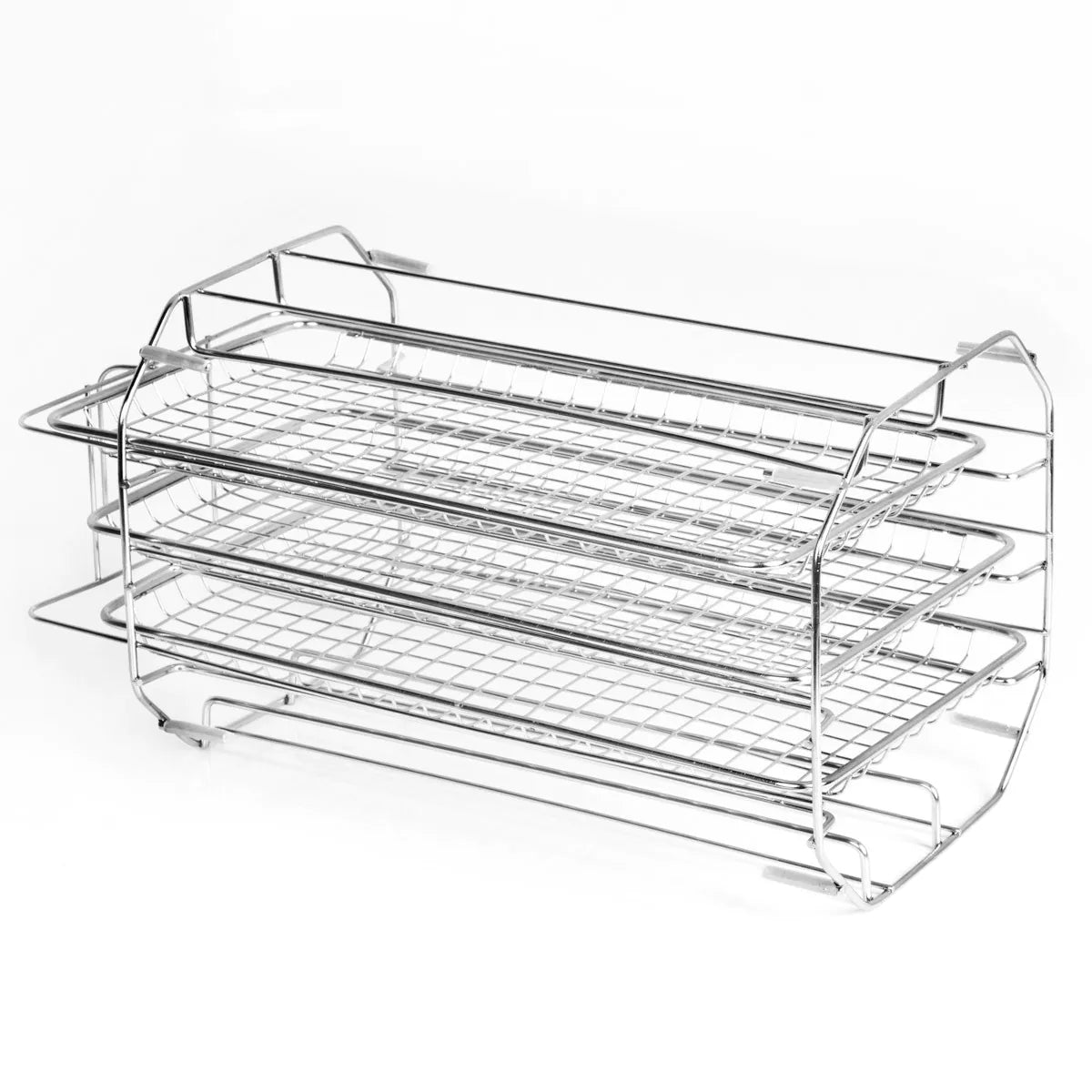

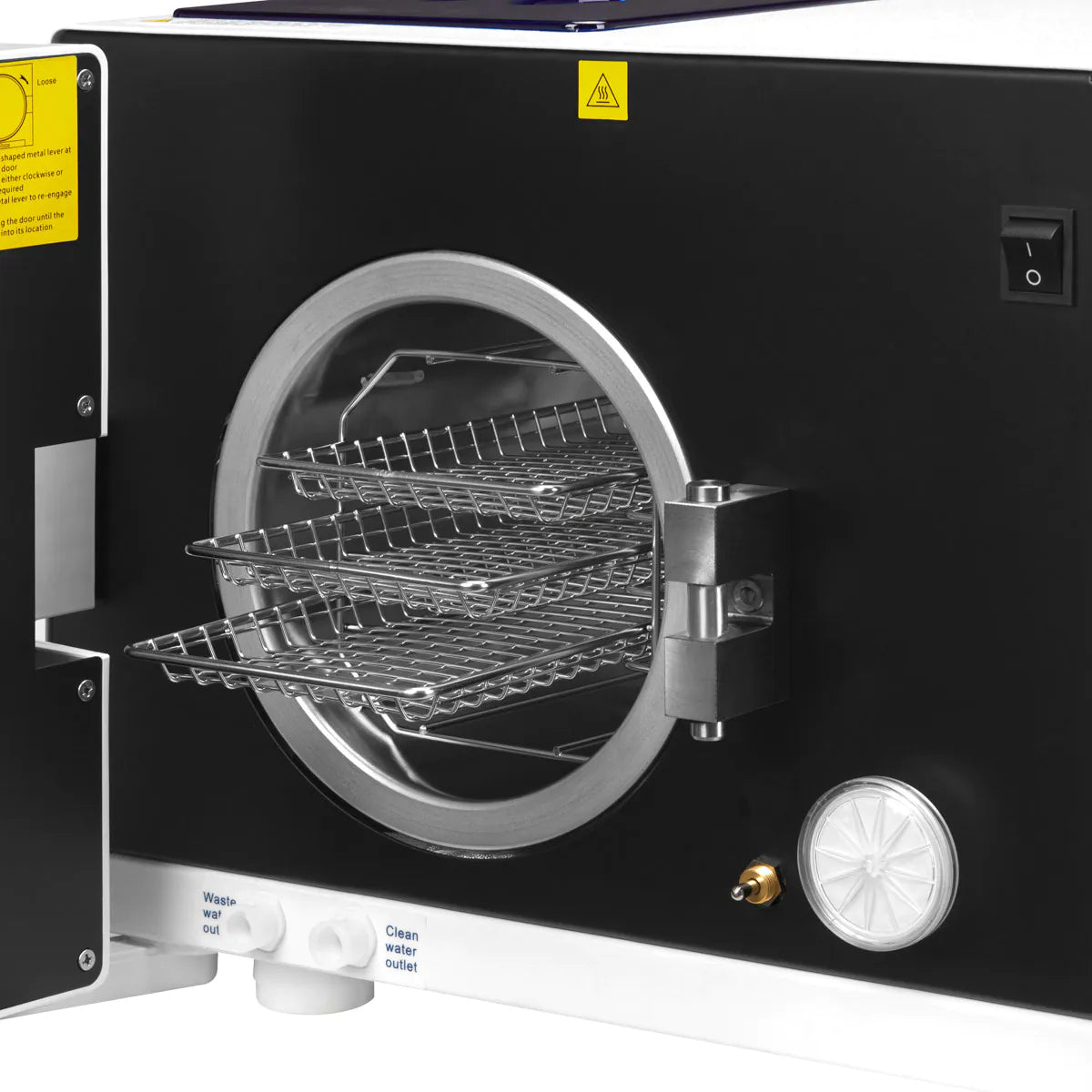

Capacity 12 L	The 12-liter autoclave is perfect for, for example, a beauty salon or a tattoo studio. We will place a rack with three trays inside the chamber.

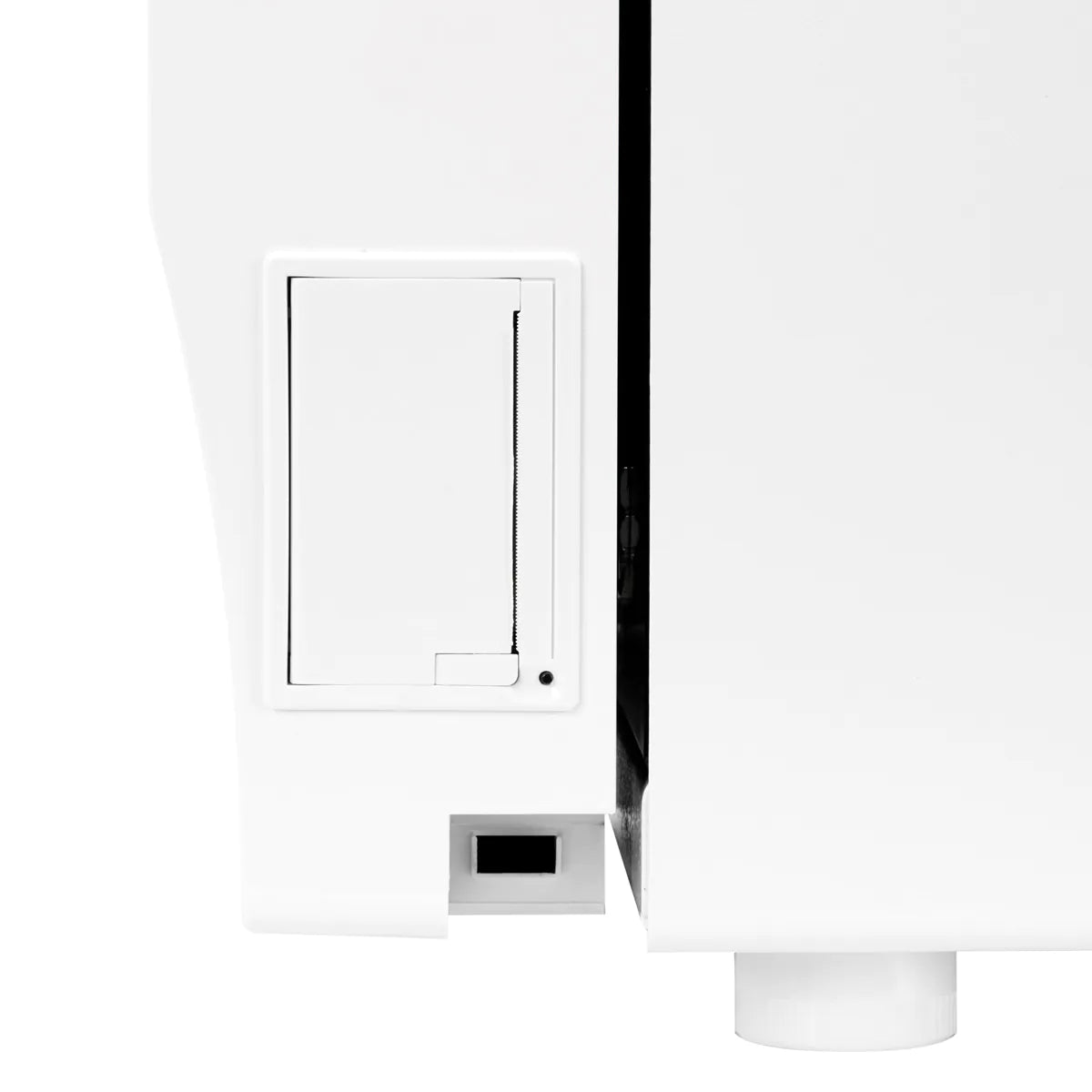

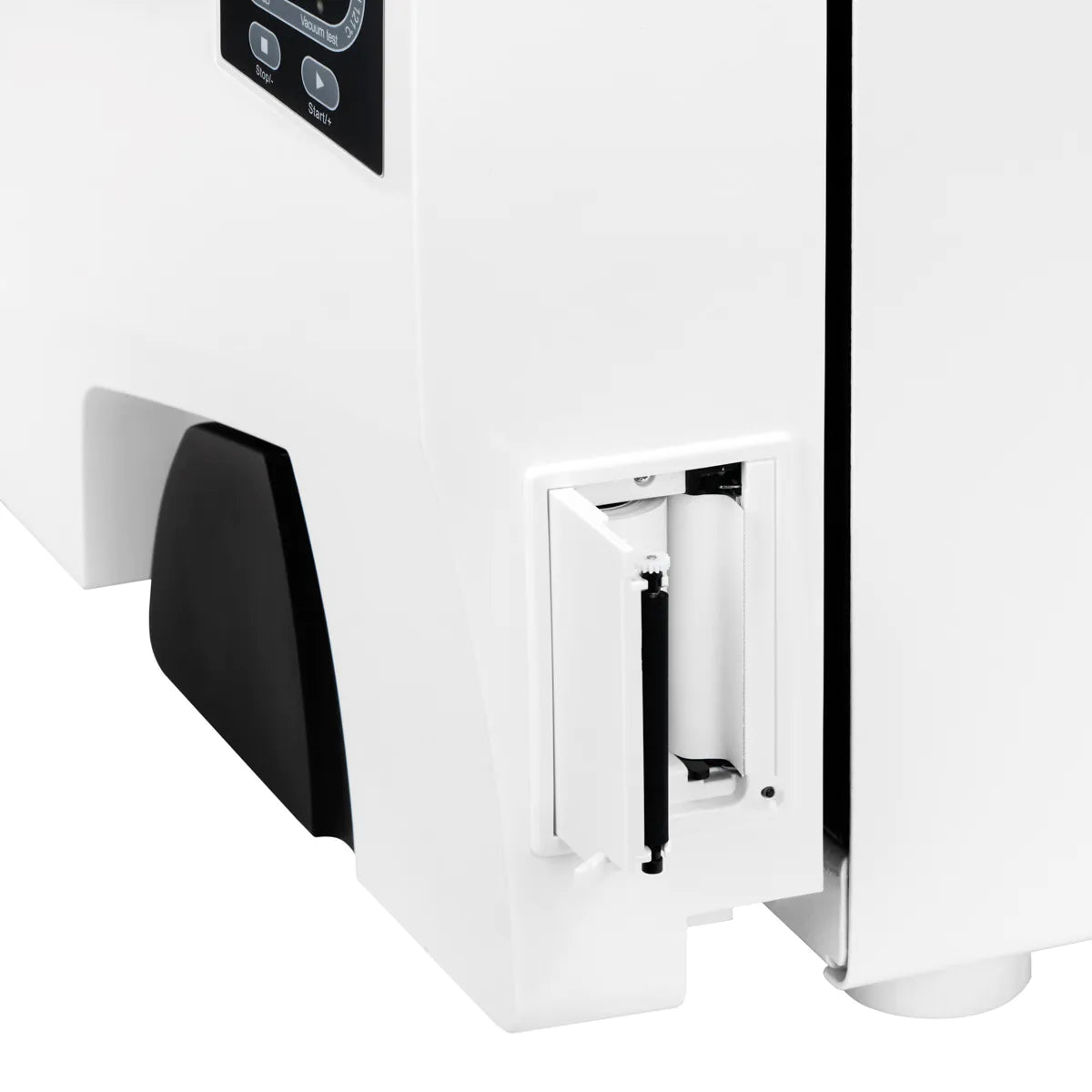

Built-in printer	No ink is required due to the use of thermal paper.
Sterilization of tools in bulk or in packaging	The Class B autoclave allows for the sterilization of both unpackaged and packaged tools (solid or hollow).

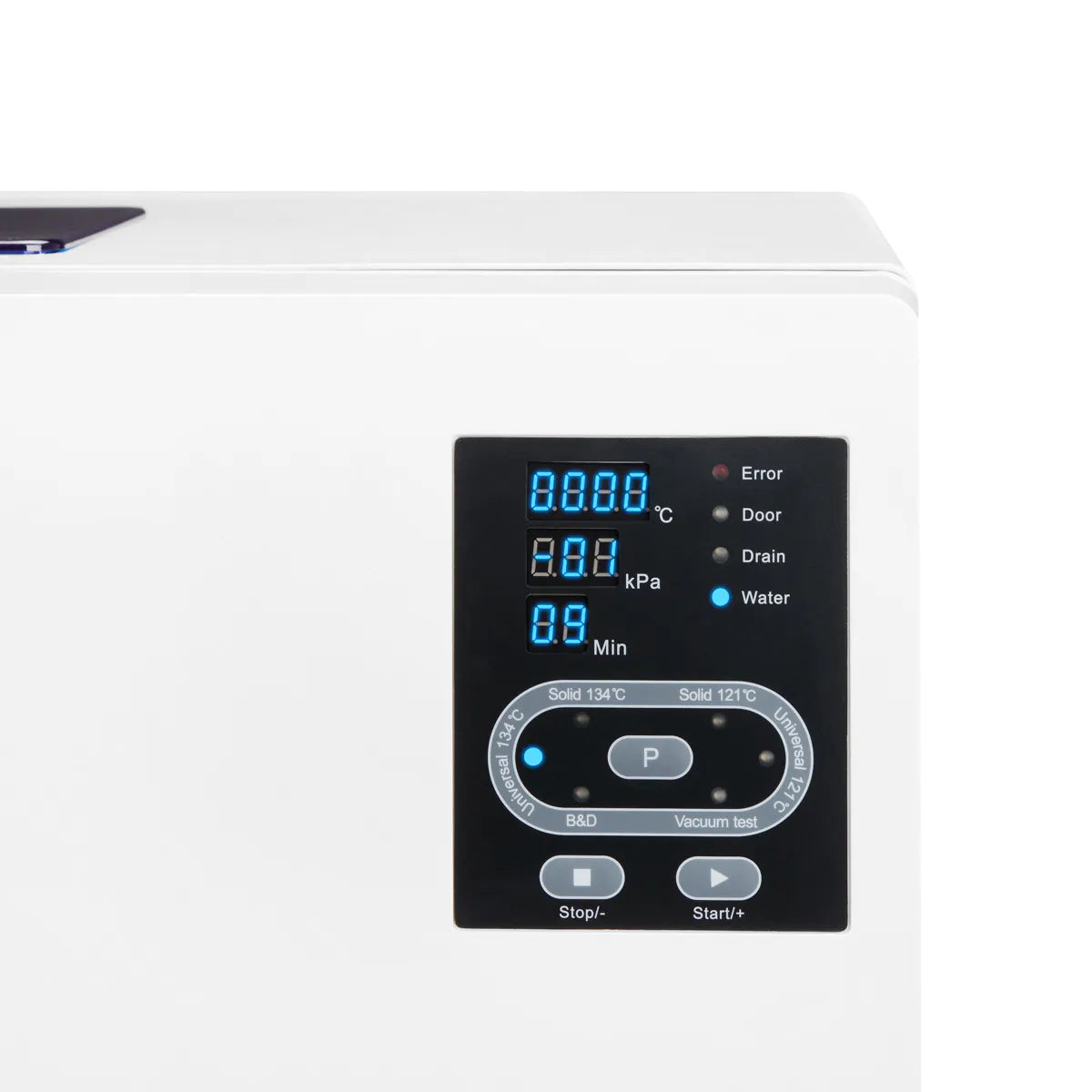

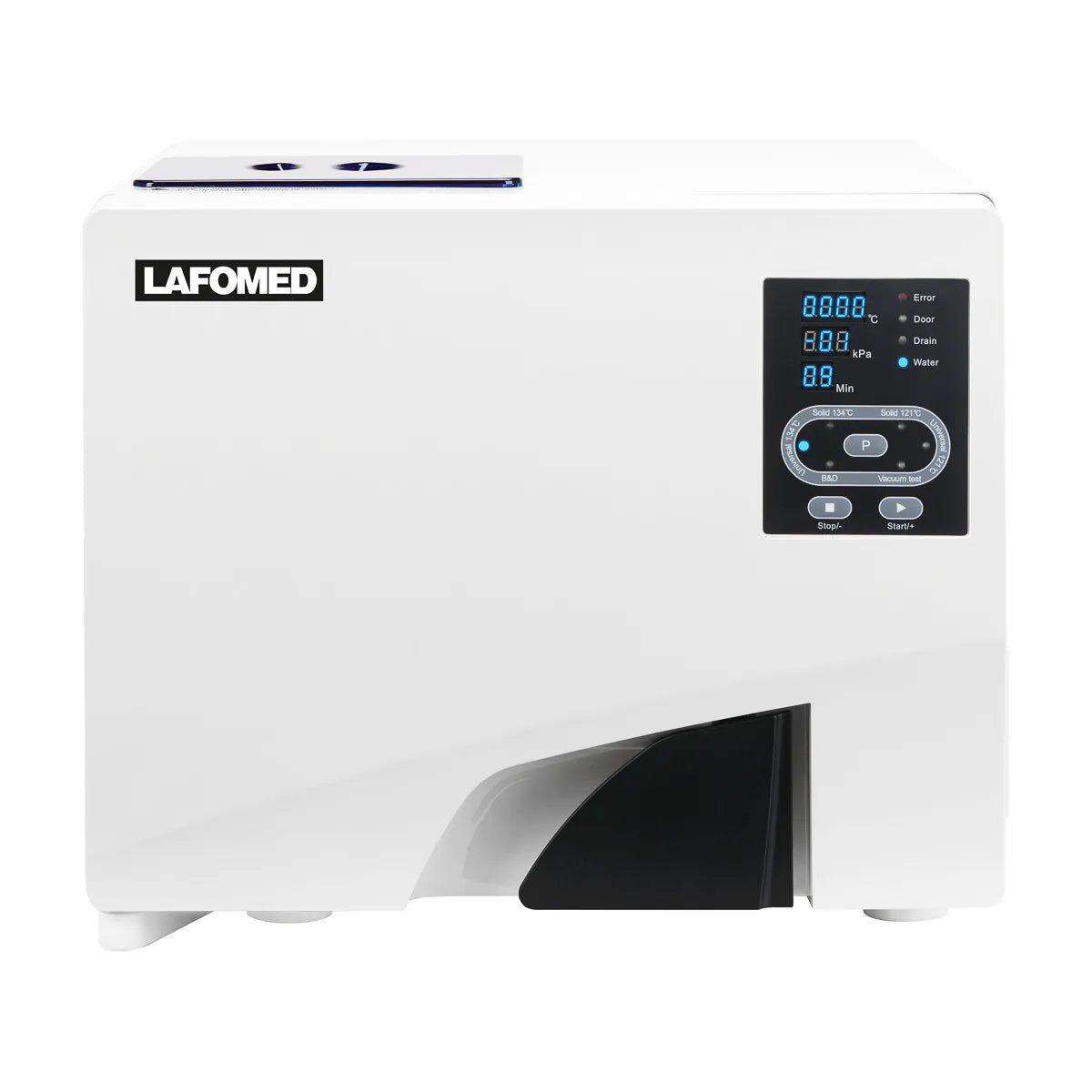

LED	Displays time, temperature, and pressure.
Simple and efficient operation	The intuitive menu allows you to quickly select the program or adjust parameters, and the user-friendly interface is in German.
6 automatic programs	4 sterilization programs, 2 test programs; Bowie & Dick and vacuum test.
Cleaning program	Designed for cleaning the autoclave. Specifically, it will be indicated when the message "CLEANING REQUIRED" appears.
USB connection	Store data digitally on a flash drive and don't worry about losing or destroying the valuable evidence you need.
Preheating function	When this function is enabled, the device warms up before the program or parameters are set.
Temperature maintenance function	The autoclave heats the chamber and starts the steam generator to maintain a constant, warm temperature (for a maximum of 8 hours). This makes it possible to shorten the time required for each sterilization cycle.
Self-diagnostic system	Effective protection against damage.
Stainless steel chamber grade 304	This makes it extremely durable and aesthetically pleasing, and testifies to the high quality of the device.

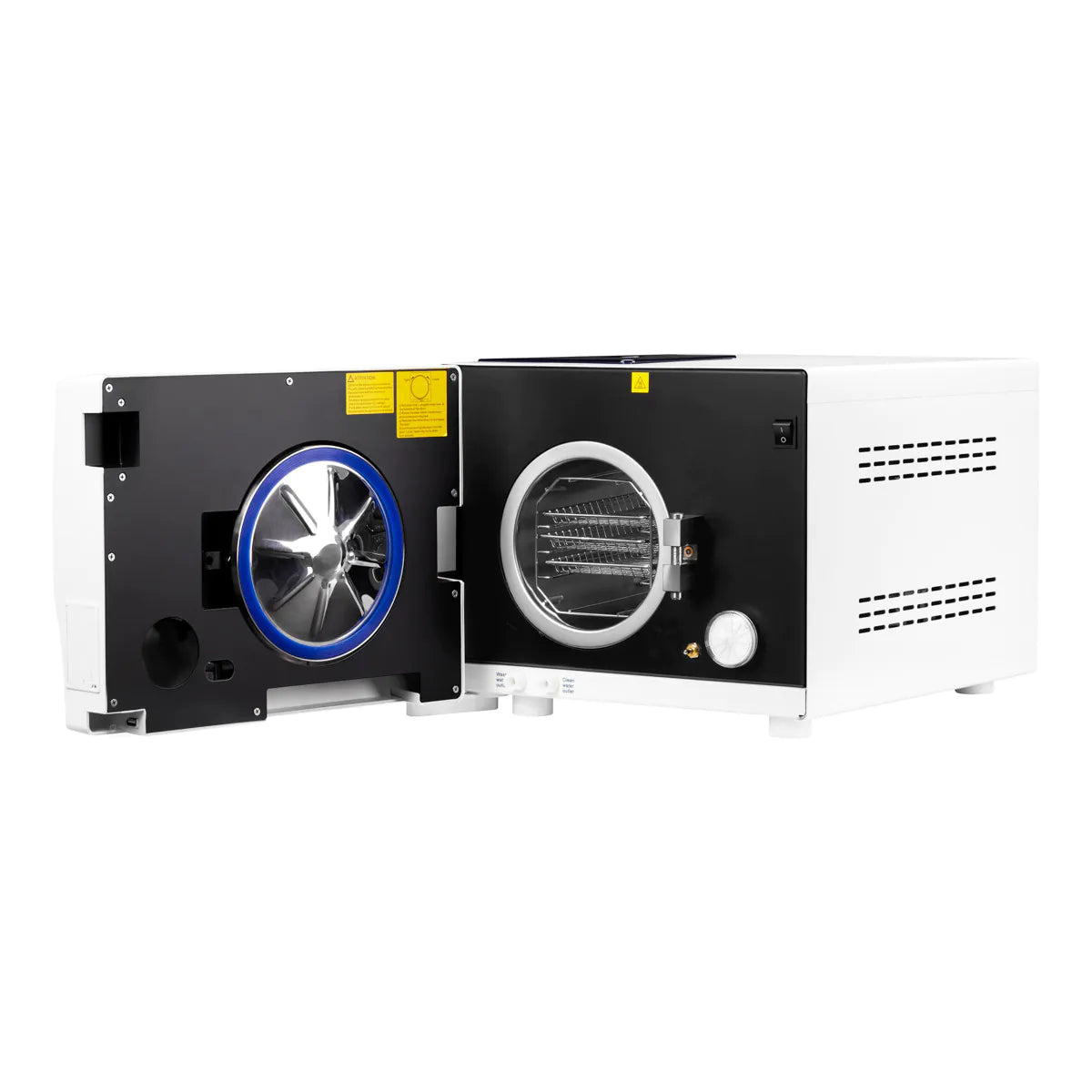

Double door lock	Advanced door protection system, mechanical and electronic

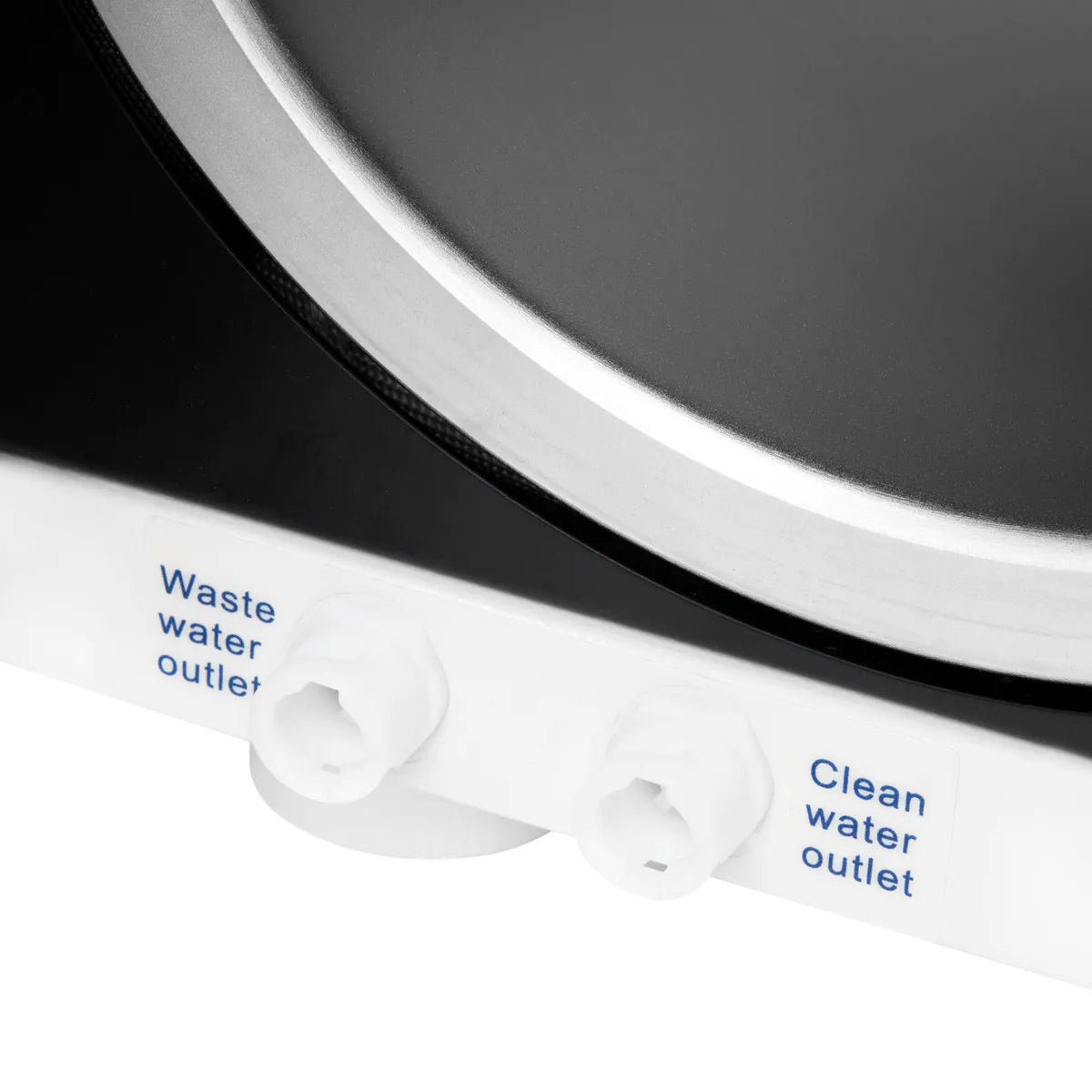

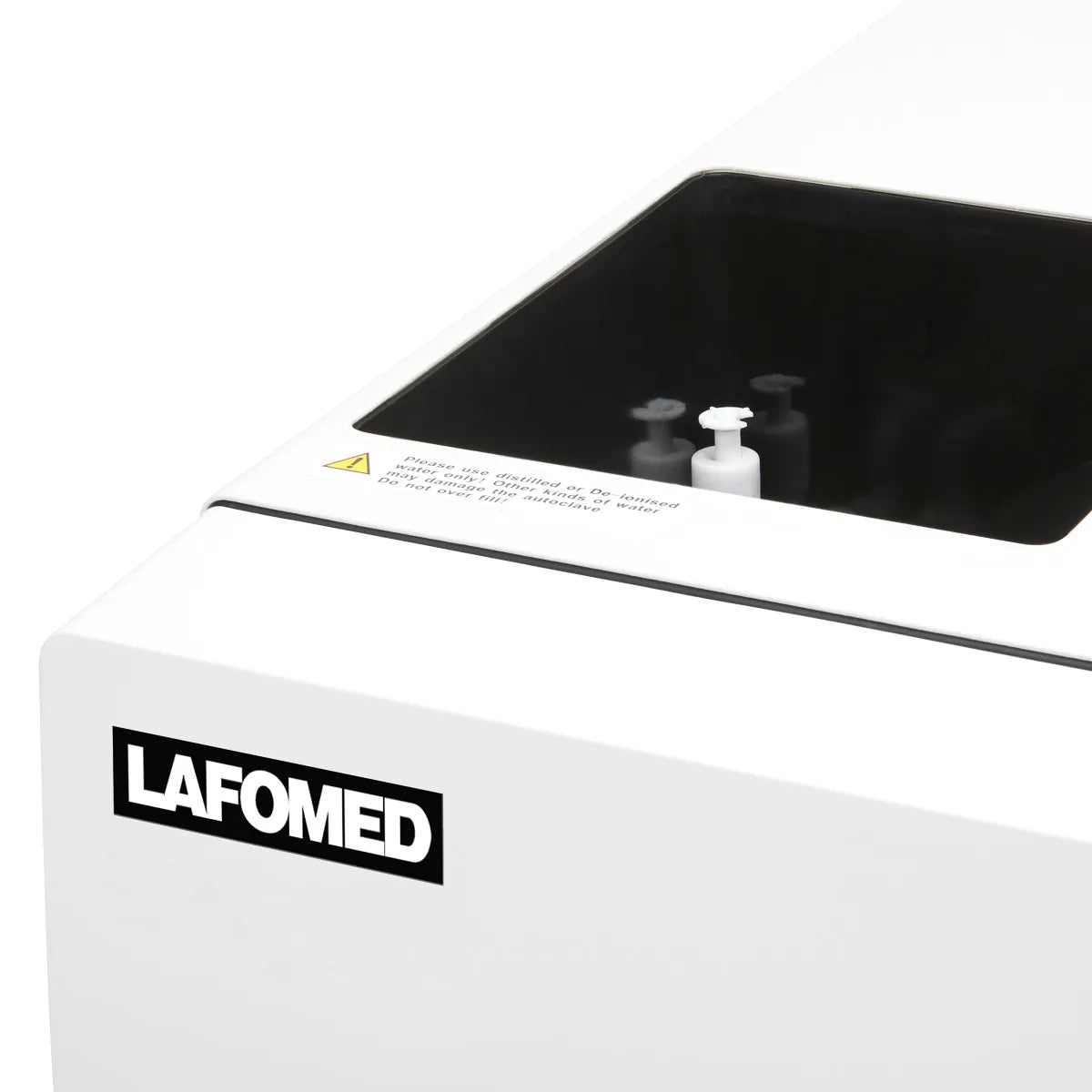

Built-in tanks for clean and used water	The clean water tank is designed for distilled or deionized water used for sterilization. The presence of a used water tank means we do not need to use an external container.
High-quality bacteria filter	Replaceable every 150 cycles, filters available in our shop.
Meets international requirements.	Used by professionals in many fields.
Technical Passport	A passport worth EUR 61.50 is included in the set.
guarantee	24-month warranty with the option to extend for a further 12 months.

Technical data:

Certificates and standards	CE 1023, ISO 13485, BS EN 13060:2014+A1:2018
Performance	1.95 kW
Tension	230 V
frequency	50/60 Hz
Maximum operating temperature	137°
Maximum operating pressure	0.21-0.23 MPa
Design pressure	-0.1 / 0.27 MPa
Target pressure of the safety valve	0.24 MPa
Safety valve opening pressure	0.24 MPa ~ 0.26 MPa
User program	All parameters
Time control	4-60 min
Drying time	1-25 min
Vacuum times	1-10 times
Automatic programs	-134°C Uniform -134°C Universal -121°C Uniform -121°C Universal - Vacuum test - Bowie & Dick/Helix Test
Chamber capacity	12 L
External dimensions	73 cm x 52 cm x 43 cm
Dimensions of the device	63 cm x 43 cm x 36 cm
Chamber dimensions	Diameter 20 cm; Depth 33 cm
Chamber material	Stainless steel 304
Net weight	51 kg
Weight including packaging	59kg

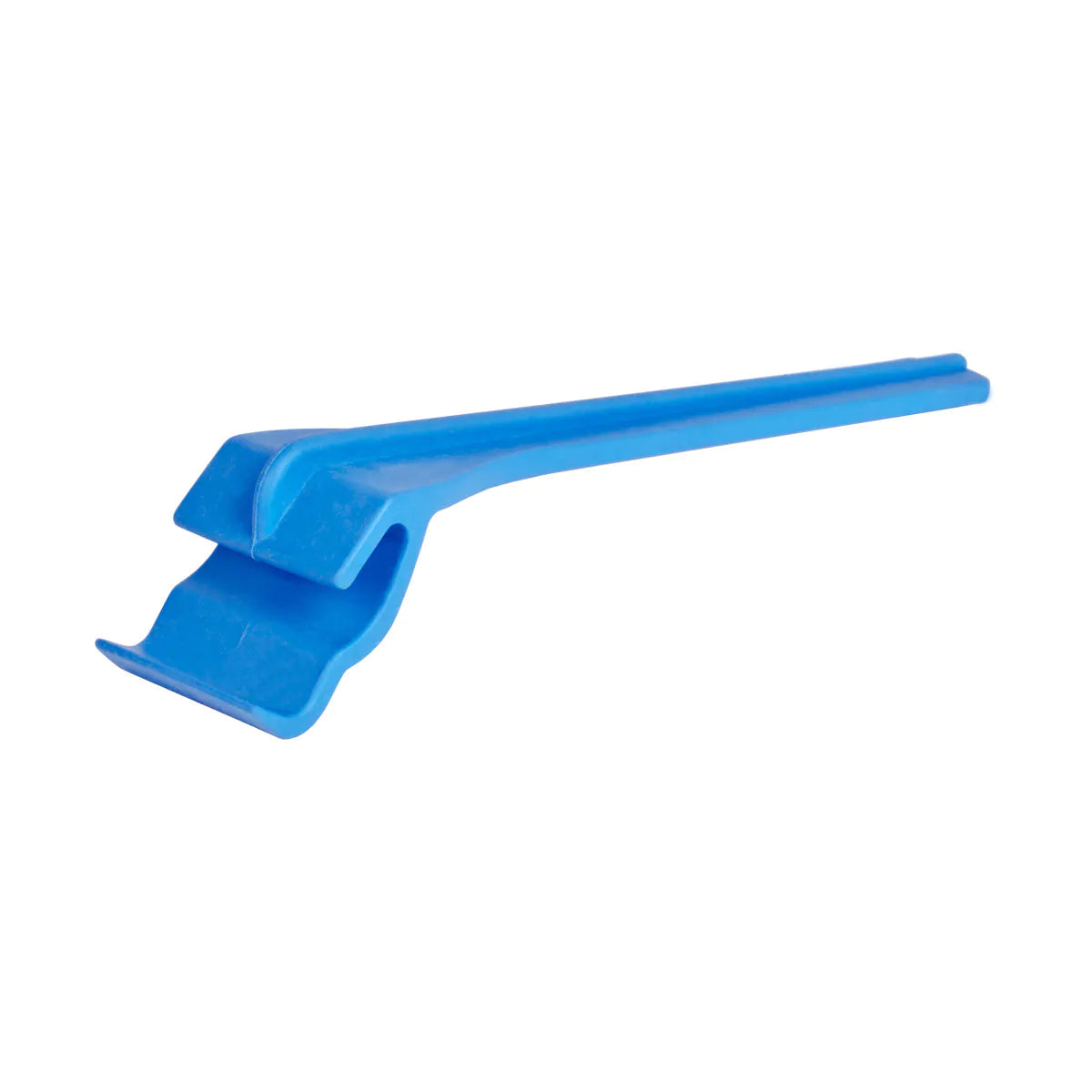

The set contains: Autoclave, drain cable, 3 trays, power cable, tray stand, tray remover holder, fuse, operating instructions, technical passport.

brand	LAFOMED
Product feature	With heating function, programming function, overload sensor, LED, timer, and printer
Product code	127652
Weight	51,000,000
EAN	5906717423338
volume	0.164100
Color	White
capacity	12 L
