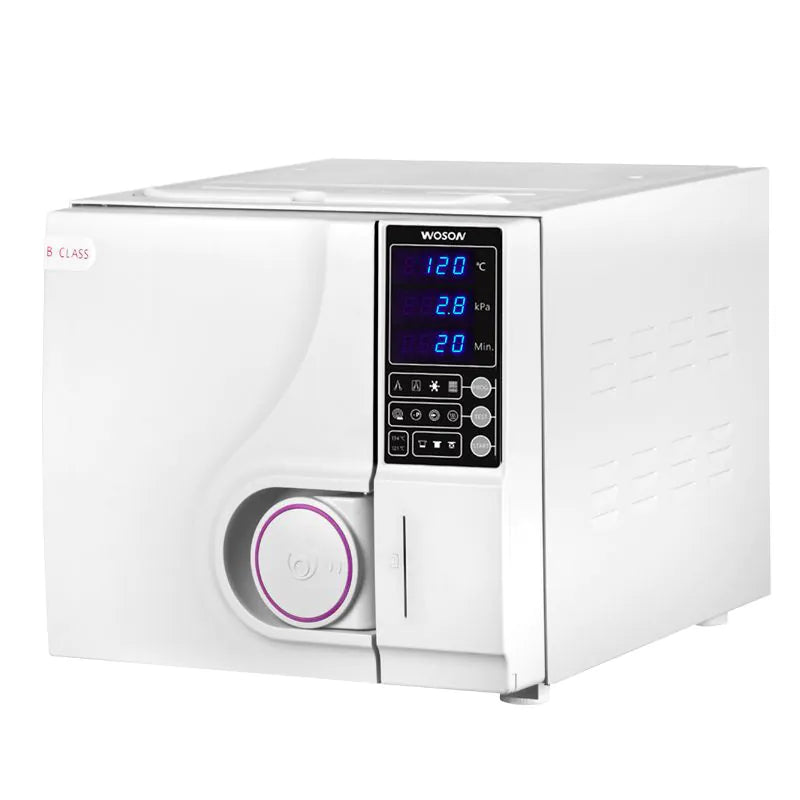

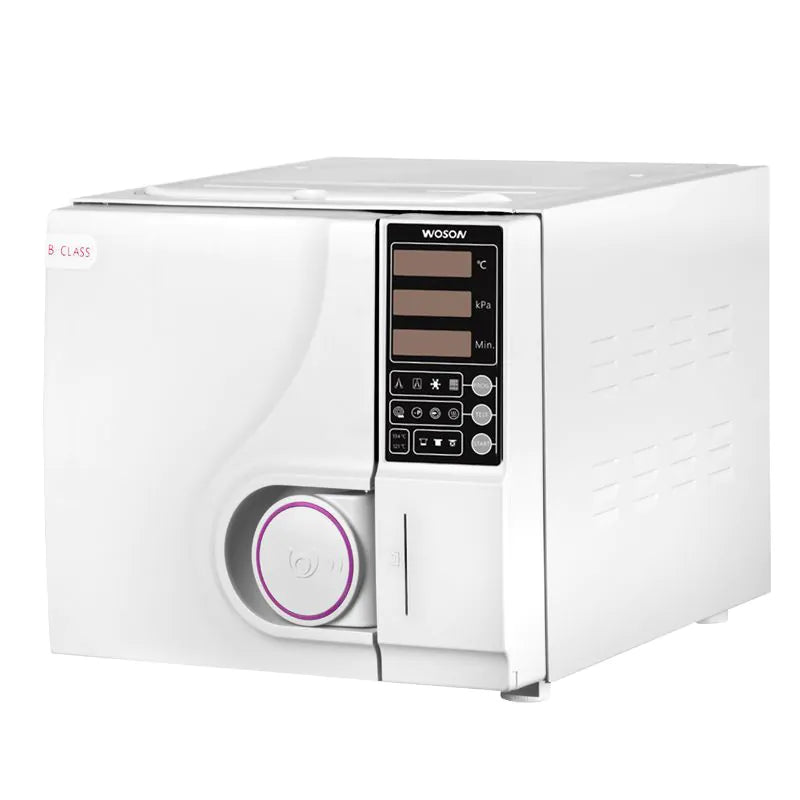

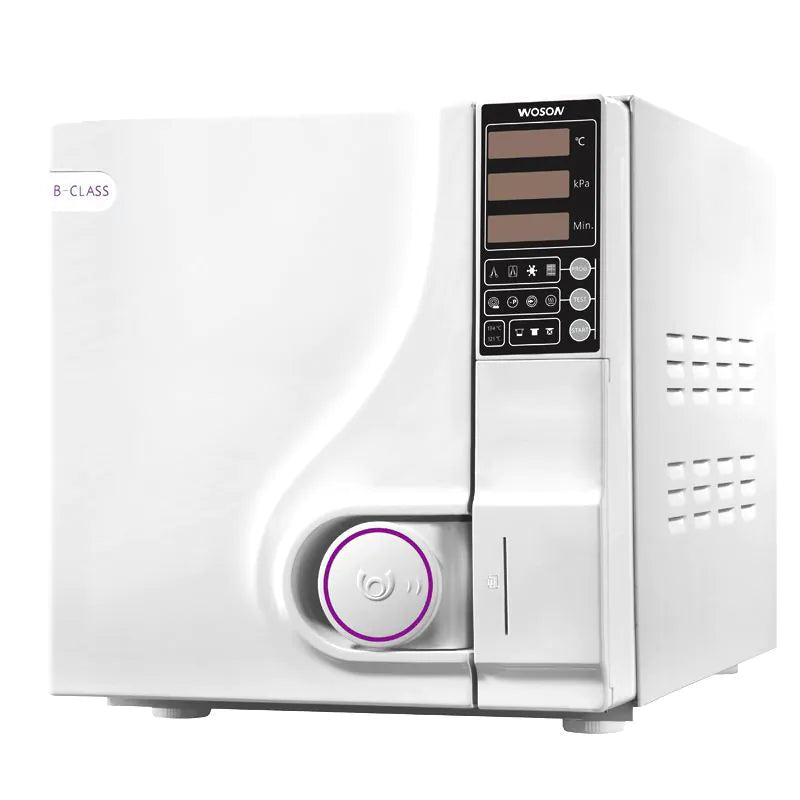

ACTIVESHOP Woson Autoclave New Tanco 12 L Type D with B-Class Printer, Medical

Woson is a renowned manufacturer of high-quality medical and cosmetic equipment. The brand supplies beauty salons, tattoo studios, hospitals, and clinics with professional equipment used in the sterilization process, thus ensuring the highest level of safety and hygiene for practitioners and their clients.

Safe sterilization of a wide variety of instruments

The compact autoclave Woson New Tanko 12 L is an irreplaceable device that works in every beauty salon, nail styling shop and other places where It is important to maintain the sterility of the tools used during treatments . Sterilization using the highest medical autoclave class B ensures this. the full efficiency and safety of the process This enables high hygiene standards in practice. The device is used for sterilization. designed for medical and non-medical instruments , packaged and unpackaged, uniform, recessed A-shaped and porous objects. The device may only be operated by qualified personnel who have the knowledge and appropriate training in handling this type of equipment.

Improvements for enhanced functionality

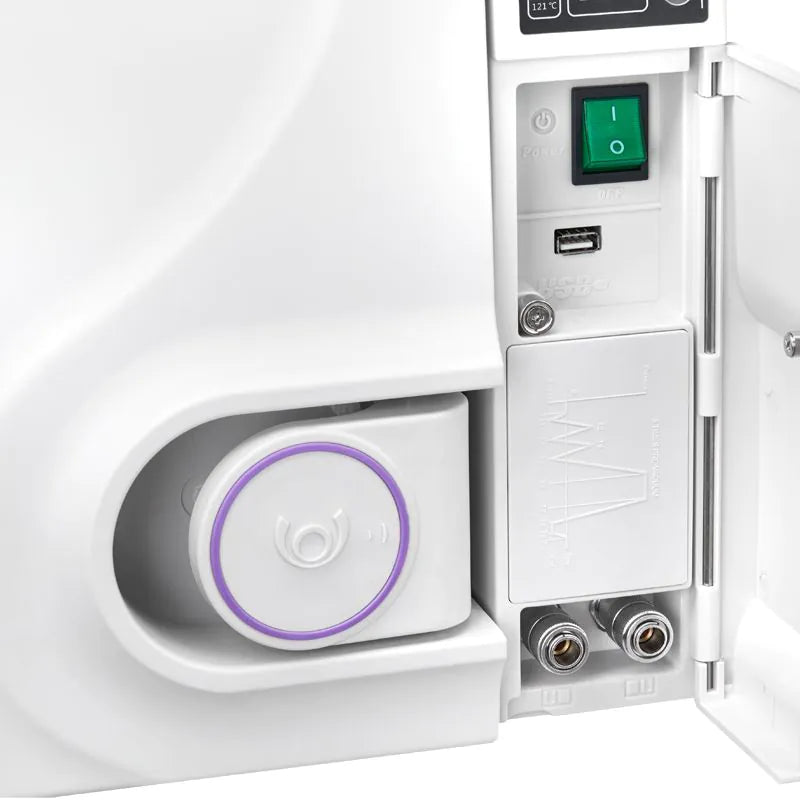

The device is equipped with a control panel with LED display equipped with the ability to select suitable programs or parameters and continuously monitor the process. With the built-in thermal printer You can print a confirmation of the sterilization process, which includes information such as the date and time of the cycle, temperature changes, and pressure. Additionally, there is a port on the back of the device to which you can connect a dedicated printer if needed. the USB input Can you also receive the sterilization results in digital form? on the USB stick included in the set Storage. Built-in tanks for distilled and used water greatly simplify the work. The device also features a quality control function for distilled water. The self-diagnostic system It informs you when an error occurs by displaying appropriate messages, e.g., if the door is not closed, the tank needs to be emptied, or water is needed, thereby reducing the risk of damage to the appliance.

Sterilization, testing and cleaning programs available

The autoclave is programmed: 4 sterilization programs , 2 test programs – this allows you to perform three tests: vacuum test, B&D test and helix test. a program for regular maintenance and cleaning of pipes (automatic pipe cleaning) and A drying program that meets the requirements of a higher standard drying program (drying function). In this way You can select parameters for individual needs and prepared batches . It is also possible to define your own sterilization parameters via the personalized mode (CUSTOM) to set and save.

STERILIZATION PROGRAMS

Sterilization program	Loading type	temperature	Pressure	Vacuum generation diversity	cycle time
"UNPACKED"	A program for sterilizing unpackaged items	134°C	210 kPa	single	Sterilization time: 4 minutes; Drying time: 9 minutes
"PACKAGED"	The program is designed for the sterilization of packaged items and tips.	134°C	210 kPa	triple	Sterilization time: 5 minutes; Drying time: 9 minutes
“PRION”	Program for the inactivation of prions, bacteria and viruses, etc.	134°C	210 kPa	triple	Sterilization time: 18 minutes; Drying time: 9 minutes
POROUS"	A program for sterilizing cotton and similar items	121°C	110 kPa	triple	Sterilization time: 20 minutes; Drying time: 18 minutes

Specification:

Medical Class B	The most advanced sterilizers, enabling the most effective sterilization of both unpackaged and packaged items, regardless of the type of instrument. They are characterized by the generation of a fractional pre-vacuum.
Legal requirements	The device is CE 0197 certified and complies with the requirements of Directive 93/42/EEC for medical devices and Directive 97/23/EC. It also complies with standards EN 61010-1; EN 61010-2-040; EN 13060; and EN 61326-1. The manufacturer is certified according to EN ISO 9001 and EN ISO 13485.

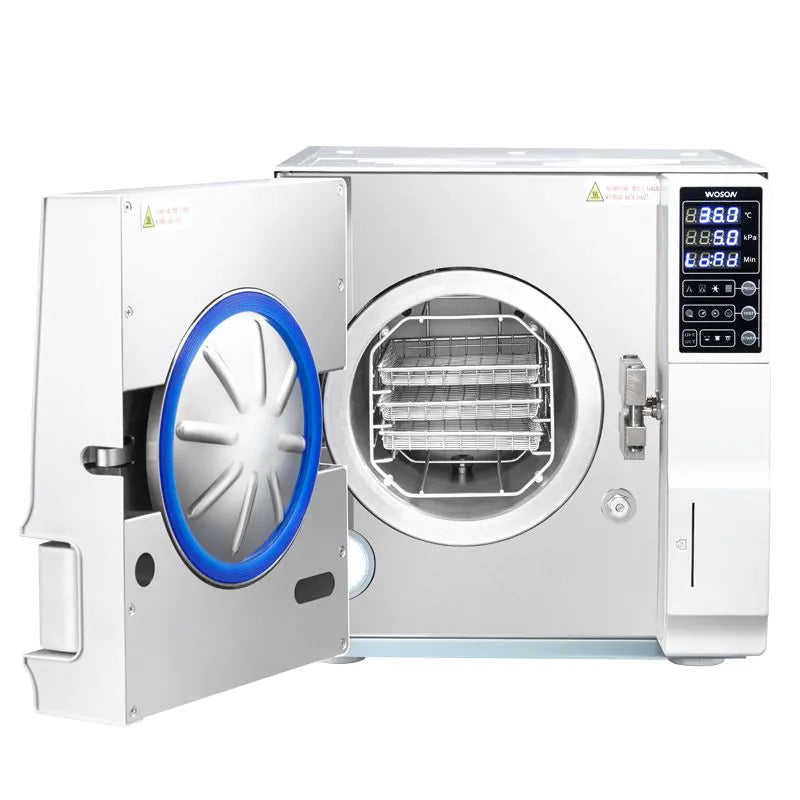

Capacity 12 liters	Perfect for beauty salons or clinics. It includes a basket with 3 trays on which you can place packaged and unpackaged tools.
Built-in printer	Thermal paper is used, which avoids the problems associated with replacing ink.
Sterilization of instruments in bulk or in packaging	Both sterilization methods are highly efficient.
Control panel with LED display	It allows for easy selection of the appropriate program and setting of parameters. During the process, it displays temperature, pressure, and time.
8 automatic programs	4 sterilization programs, 2 test programs, 1 line cleaning program, 1 drying program.

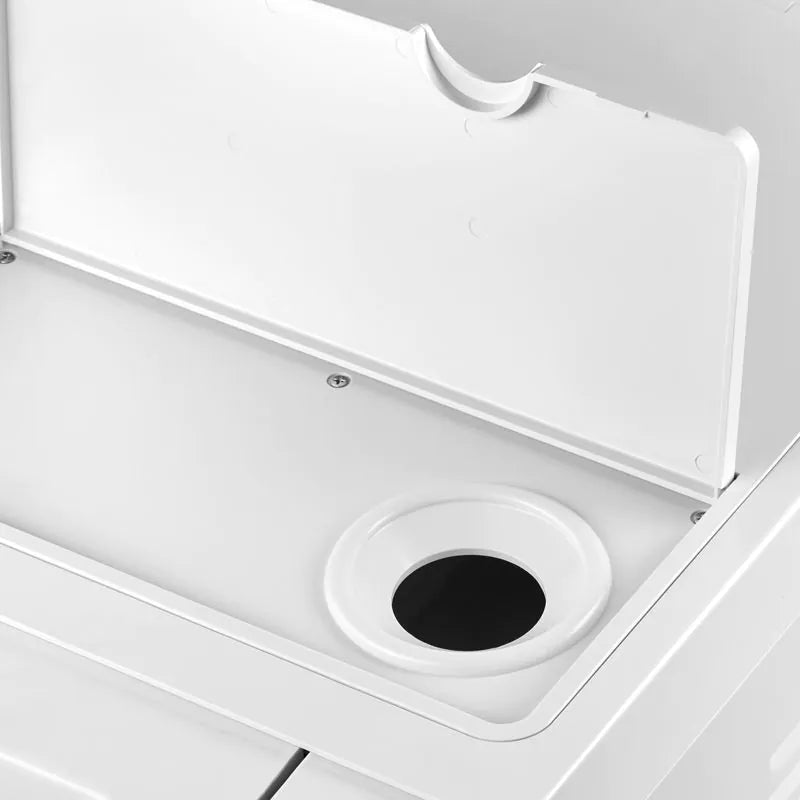

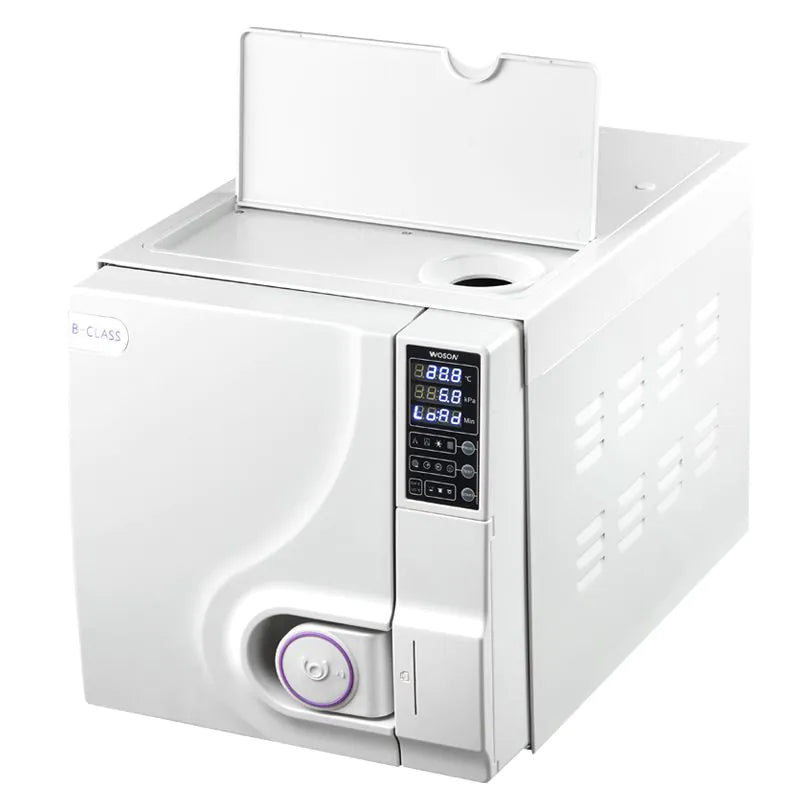

Built-in tanks for distilled and used water	The fresh water tank is designed for distilled or deionized water used for sterilization. The presence of a wastewater tank means that no additional external container is required.
Self-diagnostic system	The displayed messages help to avoid damage.
stainless steel chamber	The material used is intended for medical applications and is durable, which proves the high quality of the device.
Meets international requirements.	Used by professionals in many fields.
Technical Passport	Included in the kit.
guarantee	24 months. The warranty period does not depend on the number of cycles performed.

Technical data

Certificates and standards	CE 0197 (93/42/EEC, 97/23/EC), EN 61010-1; EN 61010-2-040; EN 13060; EN 61326-1.
Performance	1600 W
Nominal voltage	220VAC ~ 240VAC, 50Hz~60Hz
Maximum operating temperature	145°C
Maximum operating pressure	2.5 bar (250 kPa)
Minimum operating pressure	-0.9 bar (90 kPa)
Time setting	from 20 to 60 minutes for the program at 121 °C or from 4 to 20 minutes for the program at 134 °C
Drying time	0 to 60 minutes, phase length 5 minutes
Vacuum multiplicity	1-speed, 3-speed or 5-speed
Packaging dimensions	652 x 549 x 486 mm
External dimensions	545 x 382 x 375 mm
Chamber material	stainless steel
Chamber dimensions	Depth 295 mm ø 190 mm
Internal dimensions of the tray	245 x 145 x 15 mm

You should read the instructions for use carefully before use.

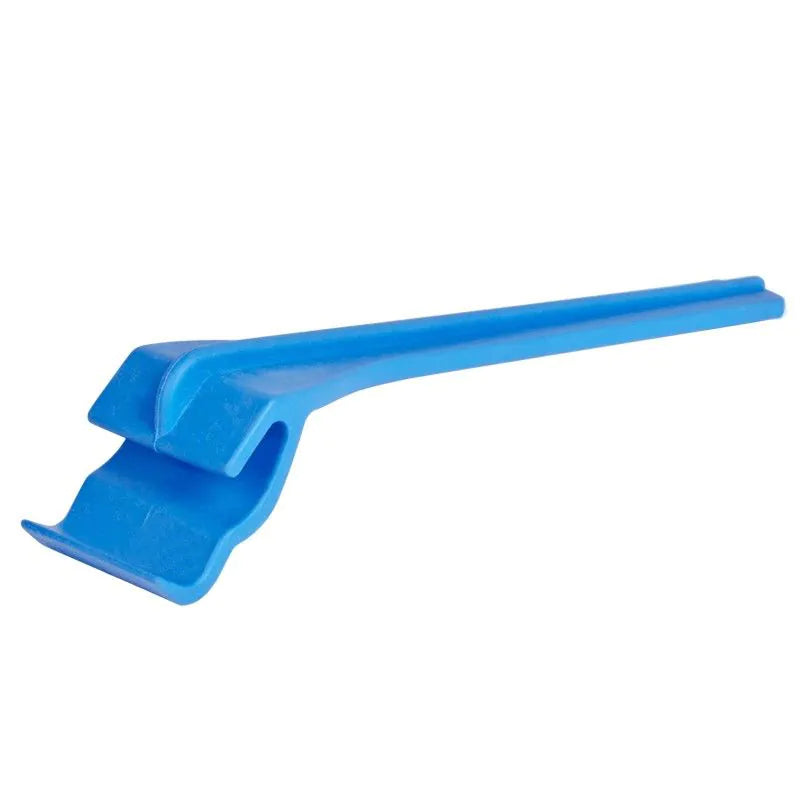

The set contains: Autoclave, tray frame, three trays, handle for removing the tray, hose for draining used water, power cord, door seal, instruction manual, technical passport, USB stick.

brand	WOSON
Product code	122679
Weight	40,000,000
EAN	5906717411342
volume	0.133400
capacity	12 L
