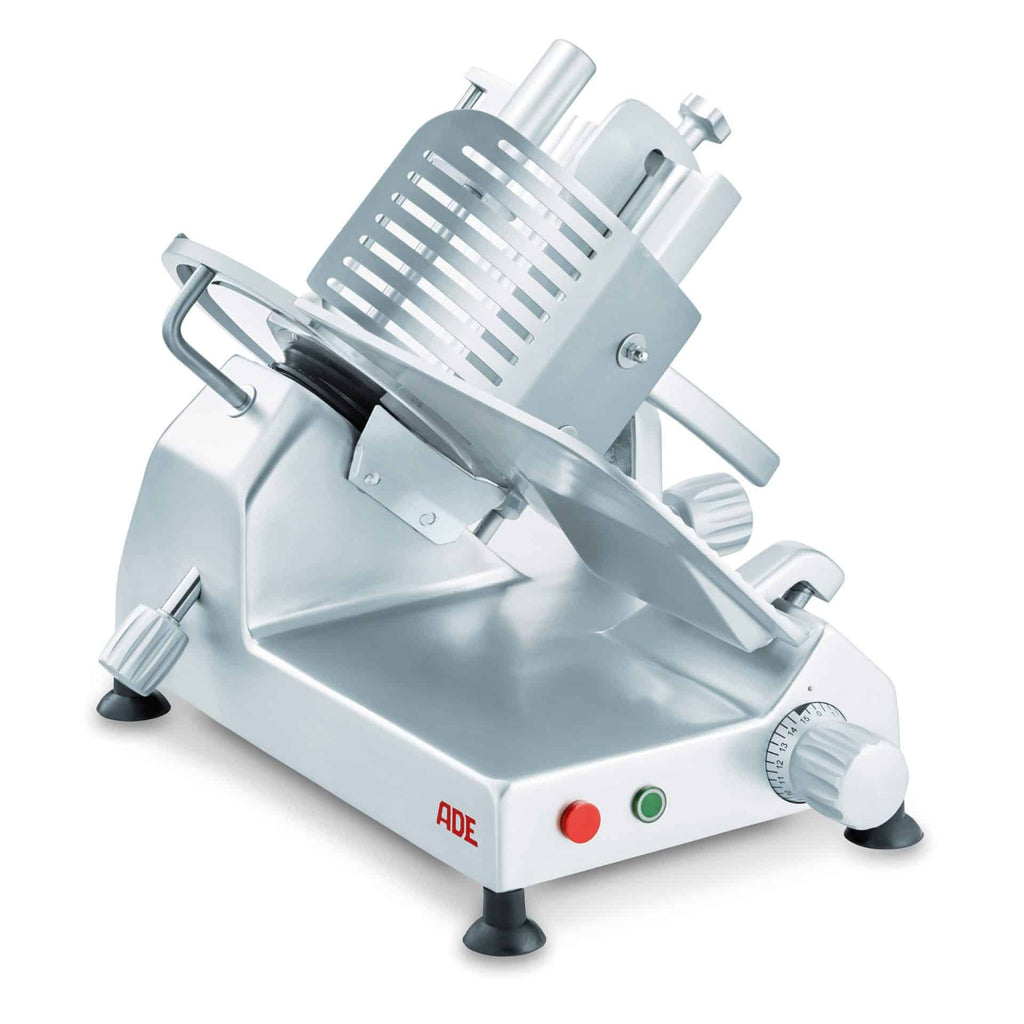

The high-performance professional slicers of the DiagonalSN series are suitable for continuous operation. These gravity-fed slicers are particularly impressive thanks to their automatic food feed system, achieved through the steep incline of the carriage. The carriage also features a guide rail to secure the food being sliced. The textured surface of the food holder further prevents the food from slipping. The carriage is removable for easy cleaning.
- Automatic material feed through steep inclination of the carriage
- Robust housing made of special aluminum alloy – anodized
- Extremely robust, wear-free and fatigue-free piezo switch technology for a high number of switching cycles.
- Air-cooled engine with extremely quiet drive
- Sled with integrated guide rail
- Hard-chrome plated knife made of special steel
- Infinitely adjustable cutting thickness: 0-15 mm
- Four suction feet for a secure stand
- Easily removable carriage for effortless cleaning
- Includes guide rail for securing the material being cut.
- Suitable for continuous operation as intended.

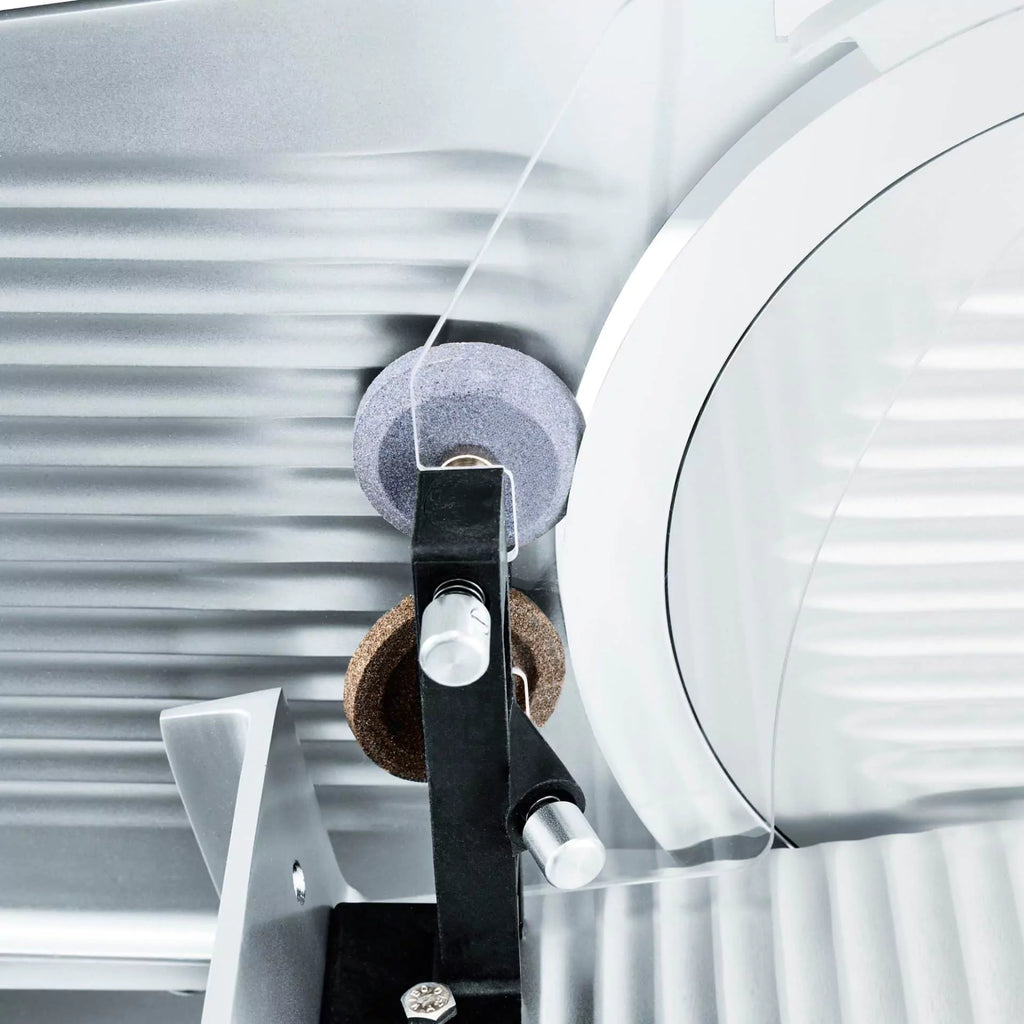

- A grinding device is included in the scope of delivery.

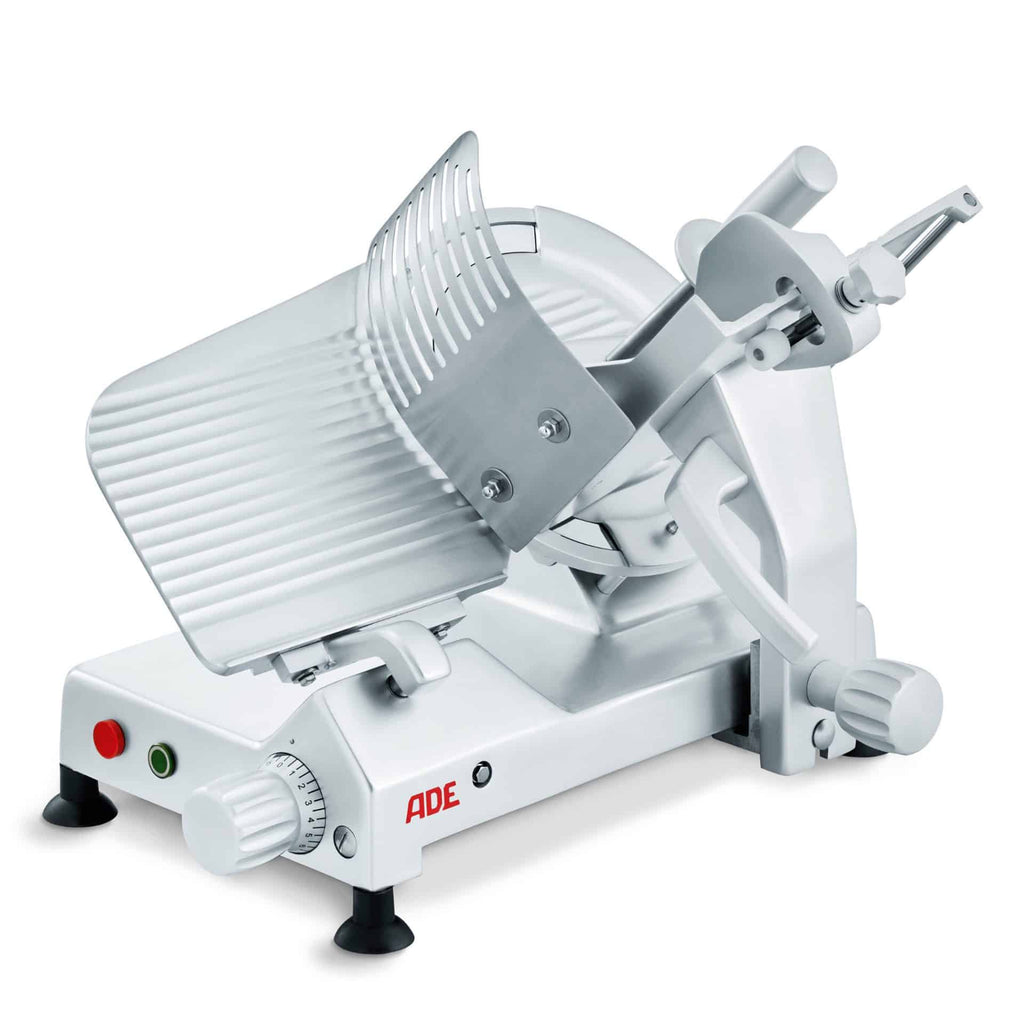

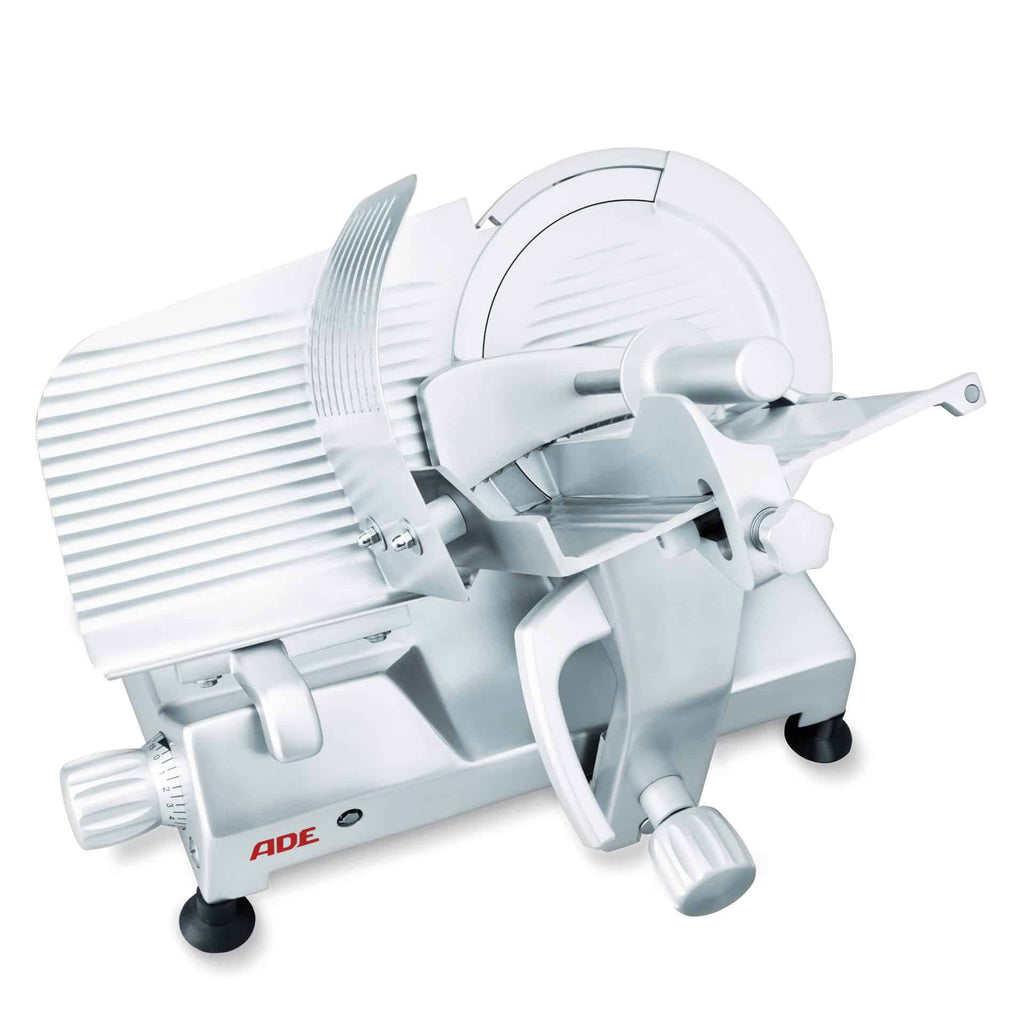

The Diagonal SN series gravity cutters are available in various versions:
- With a smooth knife
- Use a smooth, Teflon-coated knife, e.g., for cheese.
- With a long-toothed knife for cutting bread
- With a long-toothed blade with Teflon coating
| Model
|
DIAGONAL SN1-230
|
DIAGONAL SN2-230
|
DIAGONAL SN2-400
|
DIAGONAL SN3-230
|
DIAGONAL SN3-400
|
| Knife Ø/mm
|
250 |
300 |
300 |
350 |
350 |
| Cutting area/mm
|
220 x 175 |
270 x 205 |
270 x 205 |
305 x 240 |
305 x 240 |
| Dimensions/mm
|
475 x 630 x 490 |
560 x 680 x 550 |
560 x 680 x 550 |
580 x 700 x 630 |
580 x 700 x 630 |
| Dead weight
|
19 kg |
29 kg |
29 kg |
36 kg |
36 kg |
| Performance
|
0.33 kW |
0.37 kW |
0.37 kW |
0.37 kW |
0.37 kW |
| Type of current
|
230 V |
230 V |
400 V |
230 V |
400 V |
