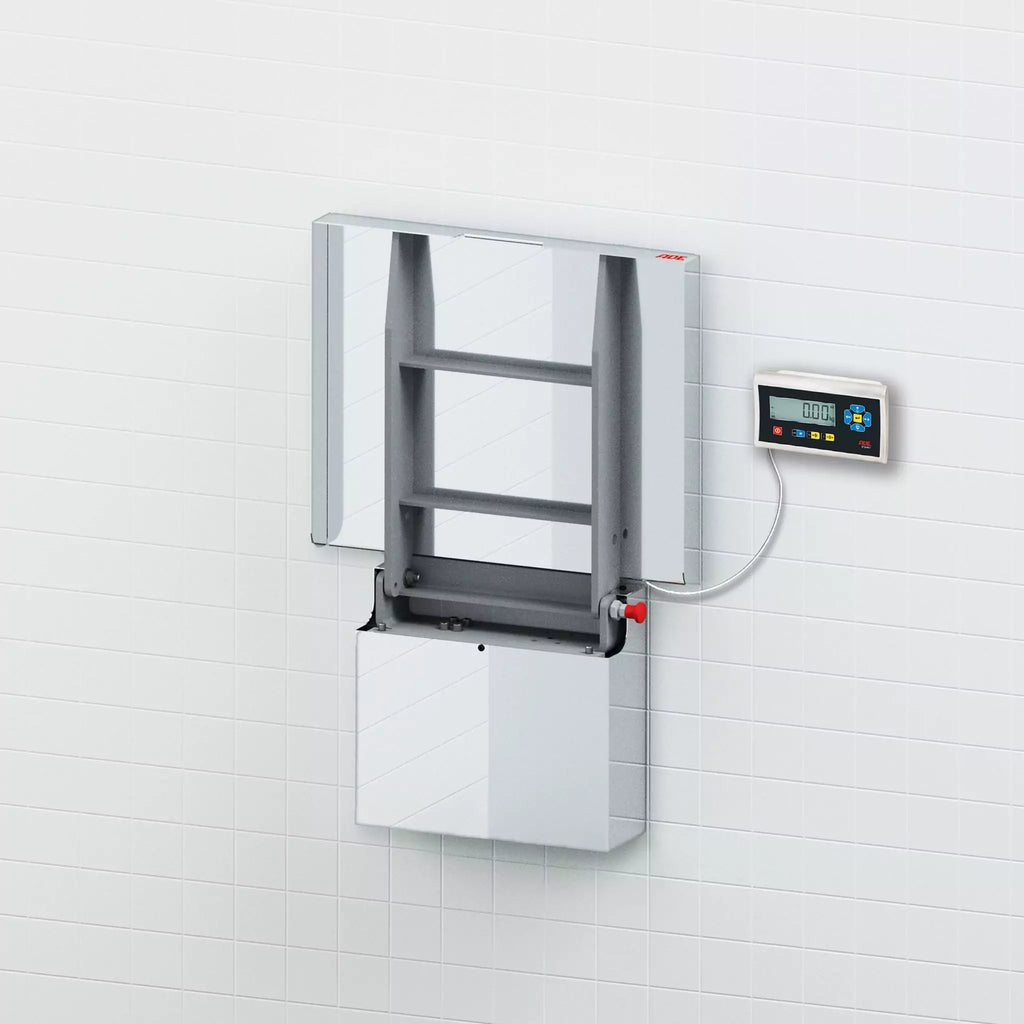

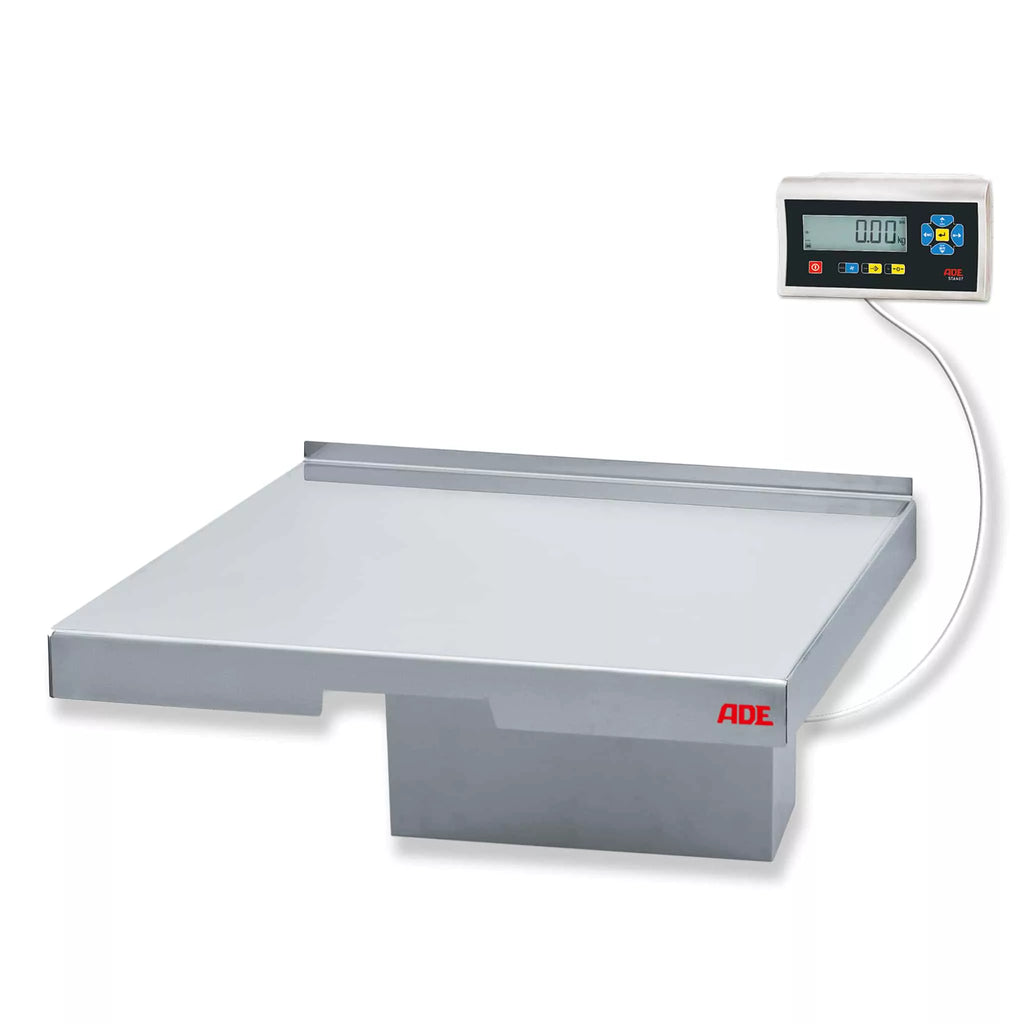

Space-saving wall scale with a foldable weighing platform and stainless steel stop rail – the weighing platform is only 125 mm deep when folded up. The scale's housing is made of stainless steel, the load cell of aluminum (IP65 protection rating) with a polished stainless steel cover (optional stainless steel load cell IP68/69K). Functions: weighing, taring, counting, totaling, freely programmable minimum and maximum values (checkweighing) with visual and audible indication.
- Folding weighing table made of stainless steel
- Space-saving – only 125 mm deep when the weighing table is folded up.

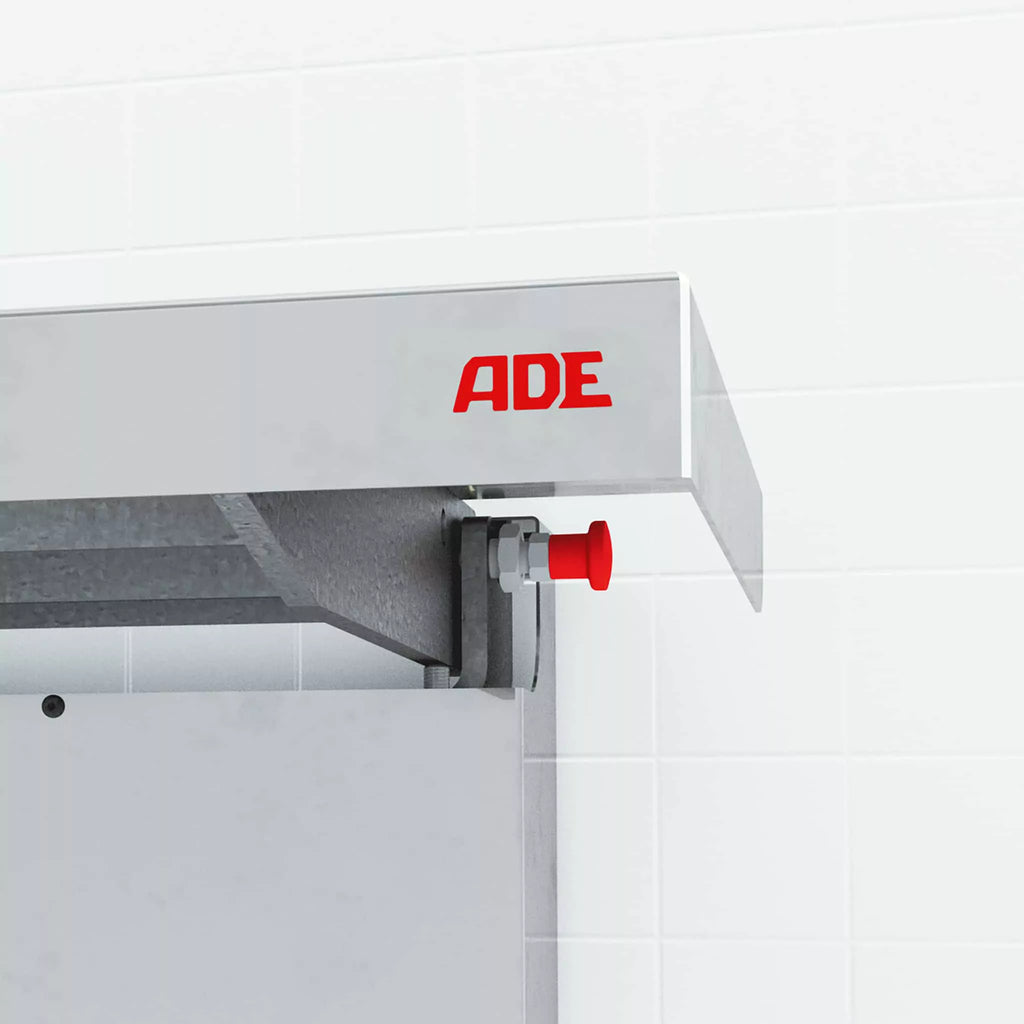

- Increased safety: Locking of the folded-up weighing table using locking bolts
- Aluminum load cell (protection class IP65) with polished stainless steel cover
- Optional with stainless steel load cell IP68/69K
- Height including mounting plate: 350 mm
- Wall console cover
- Fully assembled with digital display
- Functionally tested with 3 m measuring cable
- STAN07 digital display in stainless steel housing – IP65
- Large backlit LCD display, 25 mm digit height
- Weighing, taring, counting, summing, freely programmable minimum and maximum values (checkweighing) with visual and acoustic display
- Two programmable function keys
- 100 memory locations each for check-weighing weights, reference weights, and check-weighing in the counting area
- RS232 interface for connection to PC or printer
- Mains operation (100 – 240V / 50 – 60Hz; integrated power supply with 2 m power cable)
- Display for tabletop or wall mounting (including wall bracket)
-
The load-bearing capacity of the wall is a prerequisite.
|
|
Terrex L-60 + STAN07
|
Terrex L-150 + STAN07 |
|
|
2385-60
|
2385-150
|
|
|
60 kg
|
150 kg
|
|
|
20 g
|
50 g
|
|
|
550 x 458
|
550 x 458
|
|
|
550 x 529 x 363
|
550 x 529 x 363
|
|
|
30 kg
|
30 kg
|
