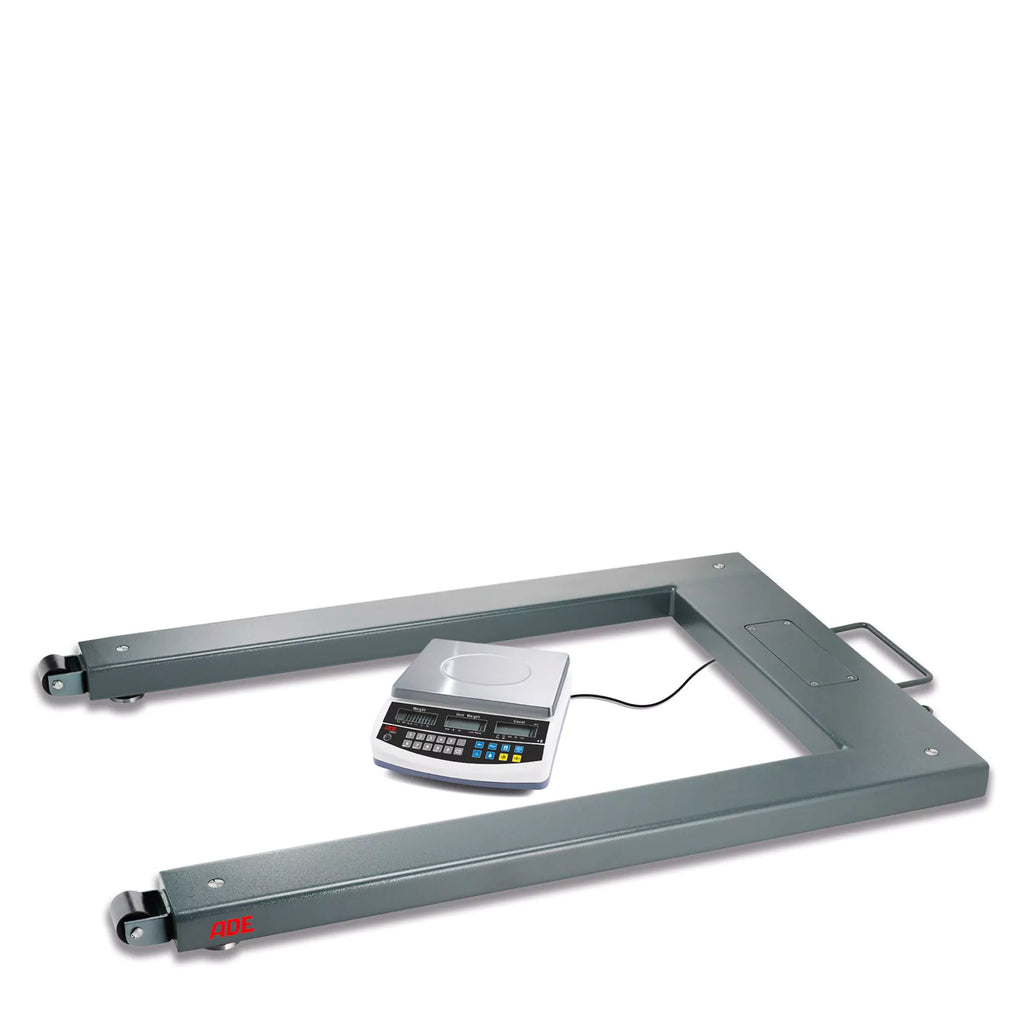

Counting scale system consisting of the ZW50-3 reference scale and the PWL series pallet scale as a quantity scale. The reference scale is connected to the quantity scale via the dual-bridge connection, which meets the specific requirements of the weighing environment.

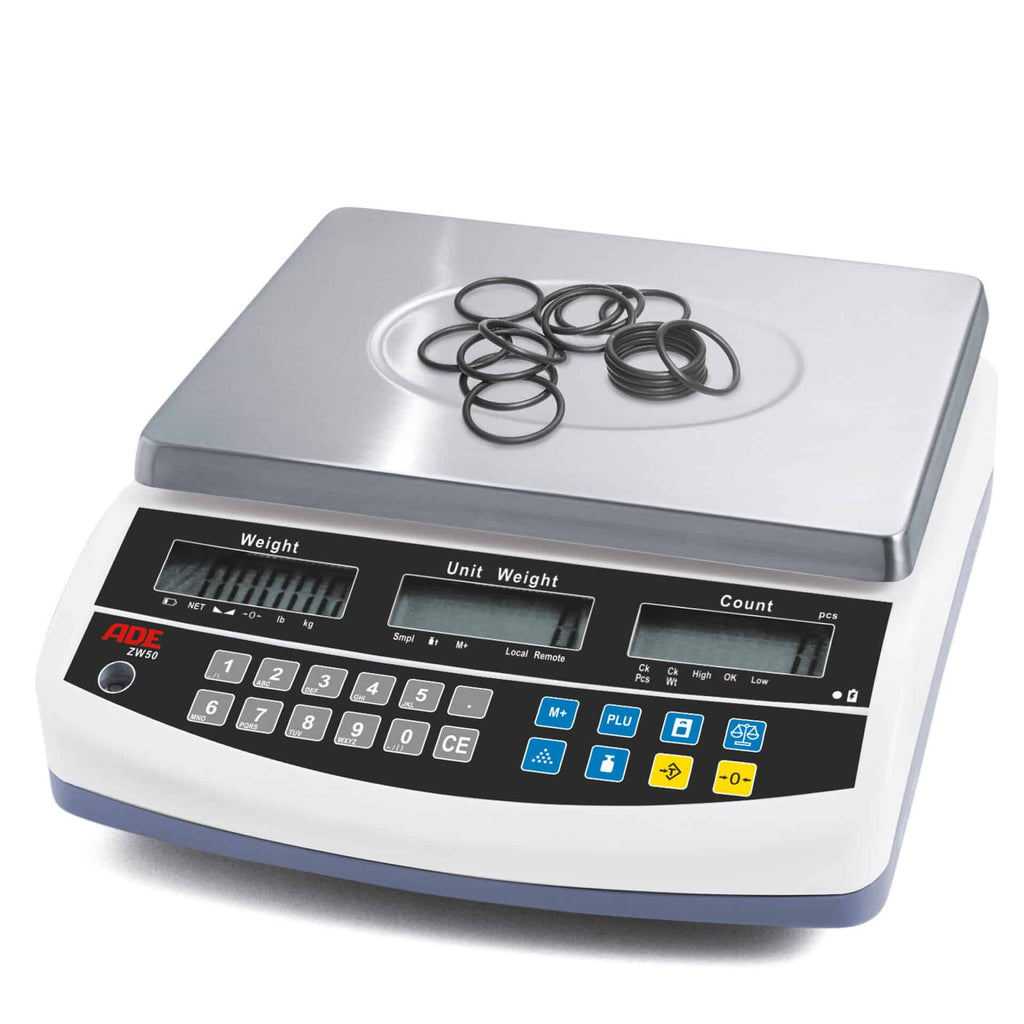

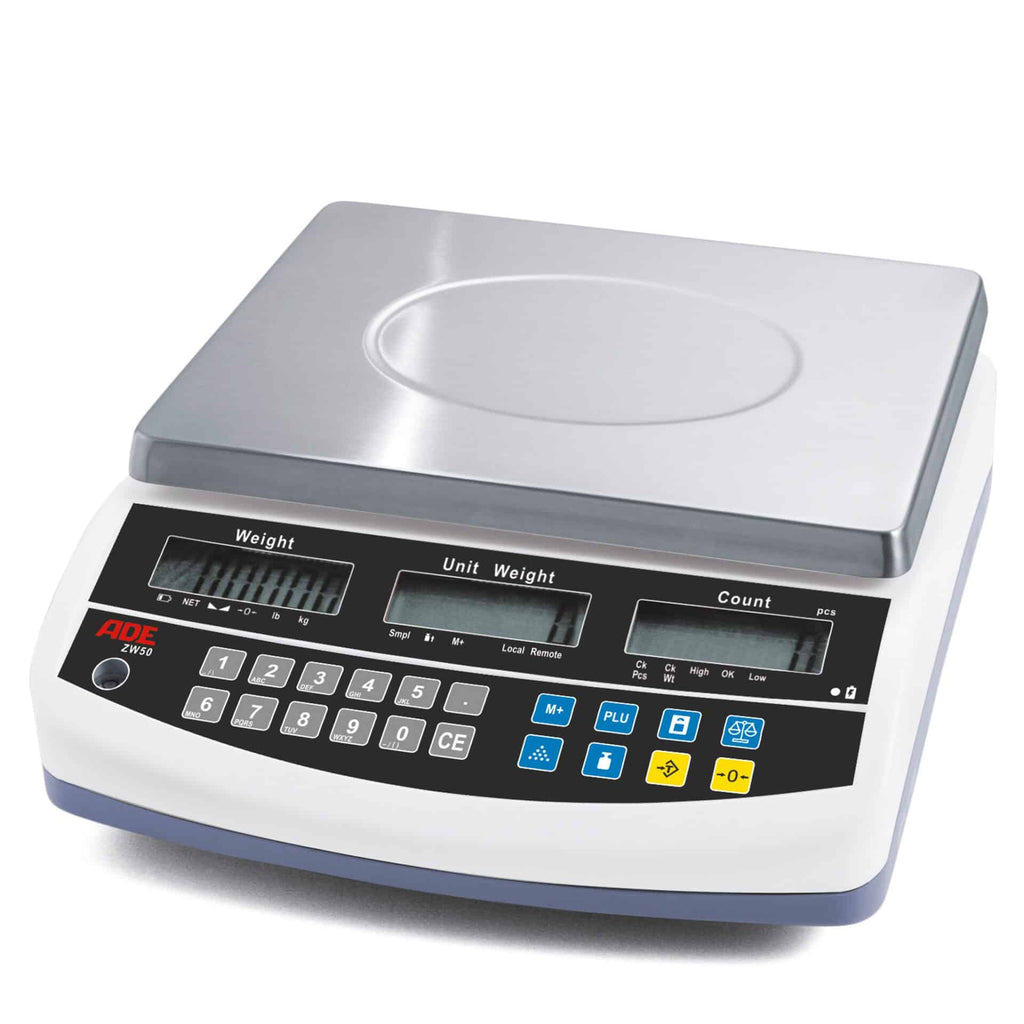

REFERENCE SCALE: COUNTING SCALE MODEL ZW50-3
- 3 LCD displays for weight indication, reference weight and total quantity, digit height 20 mm
- 10-key keypad for entering reference weight, reference quantity and tare
- Operator guidance and reference weight optimization
- Storage space for 99 items with reference weight, additional text and tare weight
- Weighing, taring, counting, summing
- Input of target quantity or target weight
- Robust industrial design in a sturdy plastic housing
- Stainless steel weighing platform
- Automatic shut-off in battery operation
- Mains and battery operation, battery life up to 80 hours
- With connection for a second scale to set up a high-resolution counting system
QUANTITY SCALE: Pallet scale PWL series
- Pallet scale in painted finish
- Load-bearing capacity of the steel structure: according to DIN 1925, standard load 2
- Can be stored upright
- Mobile use with handle and two integrated transport wheels
| Model
|
ZS2-PWL-600 / ZS2-PWL-1500 / ZS2-PWL-3000 |
|
|
2812-600 / 2812-1500 / 2812-3000 |
|
|
|
|
|
600 / 1,500 / 3,000 kg |
|
|
20 / 50 / 100 g |
| Dimensions / mm
|
840 x 1360 x 80 mm |
| REFERENCE SCALE |
| Maximum load
|
3 kg |
| Readability
|
0.1 g |
| Minimum unit weight
|
0.1 g |
