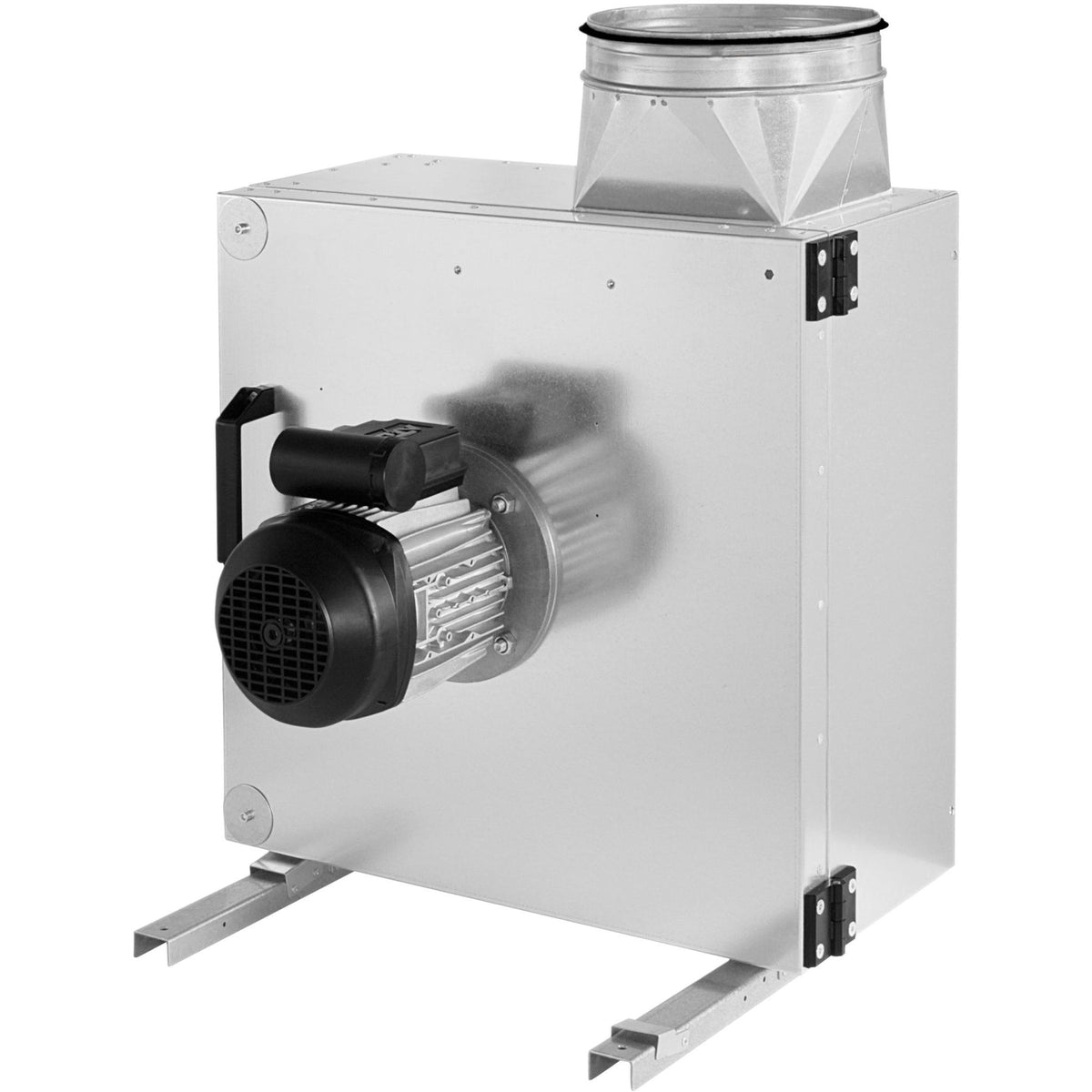

Flexible airbox suitable for oil mist, vapor and steam extraction
up to 120°C conveying medium temperature
Galvanized metal housing, double-walled, 35 mm insulation (mineral wool)
Integrated grease collection tray with condensate and grease drain
with mounting rail and rubber vibration damper
Variable design of the air outlet direction (right / left / top)
Intake and exhaust side Ø200mm (connector with rubber lip)
Motor outside the airflow according to VDI2052
Built-in thermal switch, suitable for indoor and outdoor installation
Speed controllable via step regulator, fan unit swivels out
Free-blowing 1460 m³/h, pressure: 660 Pa, power: 0.28 kW
Power consumption: 230 V/2.3 A
Dimensions: 492 x 435 x 265 mm
| Version: |
Motor swivels out
|
| Tension: |
230 V
|
| Airflow: |
Variable 90°
|
