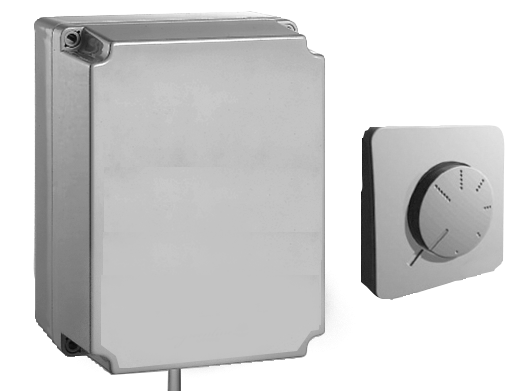

Wall-mounted enclosure IP 54
Connection: 400 V 3 phases / 10 amps
Dimensions: 232 x 192 x 326 mm
Technical data:
- Smooth motor operation thanks to integrated all-pole sine filter
- The fan speed is set via the integrated 5-stage switch.
- Contact for external approval
- potential-free fault signaling contact
- Motor protection by connecting a thermal contact "TK" or PTC thermistor
- Interference emission according to EN 61000-6-3
- Immunity according to EN61000-6-2
- trouble-free parallel operation of motors
- No risk to motors from bearing currents and voltage spikes
- no restriction on motor cable length
- Can be retrofitted to systems with existing cable networks (unshielded cables)
- Motor operation without electromagnetic noise
Made in Germany!
The sine wave frequency converter was specifically designed for fans.
State-of-the-art control algorithms ensure energy-saving and long-lasting operation of the drives.
The integrated all-pole sine wave filter guarantees gentle and quiet operation of the connected motors. This filter technology allows the continued use of existing cables and motors. Parallel operation of multiple drives and long, unshielded motor cables are also possible. Easy commissioning is ensured thanks to preset operating modes.
