Dotted version with built-in VDI fan
Double-sided intake with speed controller (for wall mounting)
1 filter row with 2 flame-retardant filters type A
with a volume flow rate (m³/h) of 1300
Dimensions: 1000 x 900 x 450 mm
including:
LED lighting (mounted)
Grease drain valve
Mounting hardware / wall mounting (without screws)
Exhaust opening prepared for easier motor installation
including wooden crate for transport securing

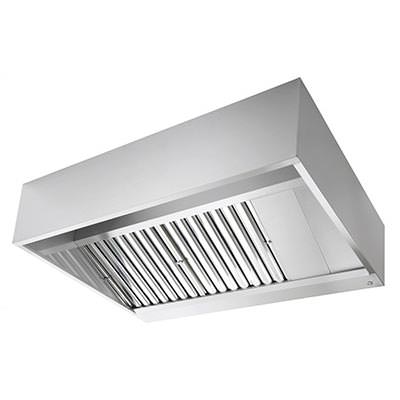

The ECO-A-VDI box-type hoods are made of a robust stainless steel construction. The hood is spot-welded and designed for wall mounting.
The double-sided suction radial fan is already mounted and blows upwards as standard (rearward option available!).
The CM17/10 motor is used for hood lengths up to 1800 mm, and the CM24/10 motor for hood lengths of 2000 mm and above.
The cut edges are deburred and rounded. The A-filter is wear-free and dishwasher safe.
Material: Chromium-nickel steel, material 1.4301. Divided into collection and extraction compartments.
Perimeter grease collection channel welded at the bottom, including grease drain valve with ball valve and attached LED lighting.
| Width: |
1000
|
| Depth: |
900
|
| with filter: |
Type A
|
| Version: |
with VDI engine
|
