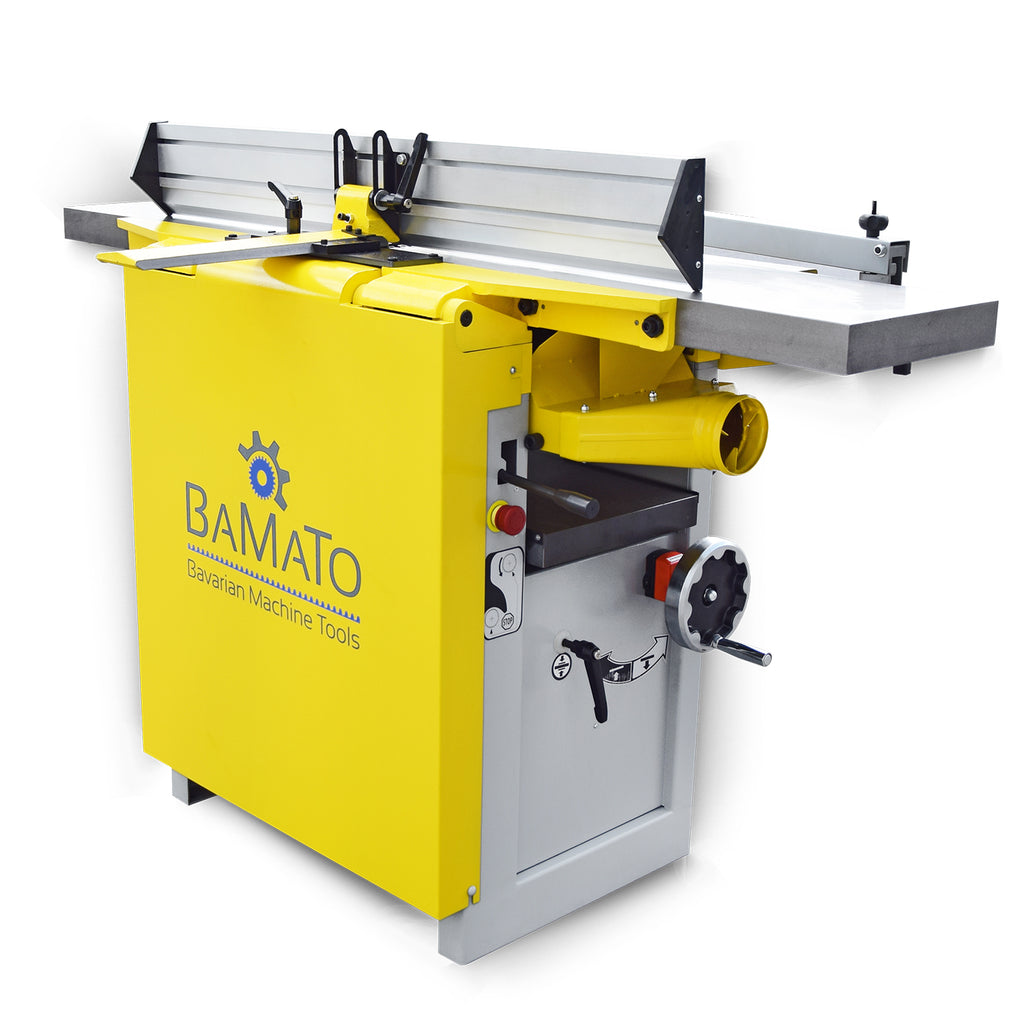

The BAMATO PRO series planer and thicknesser for professional DIY enthusiasts is equipped with a spiral cutter block fitted with 56 carbide inserts . The spiral arrangement of the carbide inserts creates a so-called pull cut with a perfect planing result. Furthermore, noise pollution is reduced by up to 50% . Another highlight is the stable, torsion-free cast iron planing table. In terms of ease of use, the BHM-310PRO scores highly with its rear-hinged planing tables for space-saving setup and a handwheel with a display for precise thickness table adjustment.
- longer tool life due to 4-way rotatable HM inserts
- less wear due to individually replaceable HM inserts in case of damage
- Integrated chip extraction hood with 100mm extraction connection for clean working
-
planing tables that can be folded back for space-saving installation
- grooved feed roller with split kickback protection
- Thickness table with stable column guide and handwheel with display
- Planer stop swiveling from 90° to 45°
- Planing tables with Fine adjustment and noise-reducing table lips
- solid and stable substructure
- integrated phase inverter
- Included: 5x replacement HM reversible blades, 5x replacement blade screws
Machine dimensions
Width 900 mm
Height 1080 mm
Length 1610 mm
Machine weight (kg) 292
Weight with packaging (kg) 334
Technical data planing machines
Jointer stop swivel range 90° to 45°
Jointer stop 1100 x 150 mm
planing width 310 mm
Extraction connection 100 mm
Design of knife shaft Spiral knife shaft
Thickness planer max. chip removal 3.0 mm
Thickness planer table size 750 x 307 mm
HM indexable inserts 56 pieces
Planing width 300 mm
Planer blade size 15 x 15 x 2.5 mm
Planer shaft speed 4300 min-1
Planer shaft diameter 95 mm
Max. chip removal during dressing 3.0 mm
Min. / Max. thickness range 5 - 225 mm
Motor power S13000 watts
Motor power S64200 watts
Voltage 400 V / 50 Hz
Table width 320 mm
Table height 920 mm
Table length 1605 mm
Feed speed 5.4 m/min
Shipping details
Number of packages 1
Width of packaging 680 mm
Height of packaging 1040 mm
Length of packaging 1670 mm
Shipping weight 334.00 kg
Shipping method: forwarding agent
