The BAMATO BBSW-750 log band saw is equipped with a 6.15 m roller track. The powerful 8.0 kW electric motor provides the necessary power. Balanced and robust cast iron drive wheels ensure perfect cutting results. This machine is ideal for precise sawing of soft, hard, and dry woods. The large, clearly arranged control panel offers optimal operating comfort.

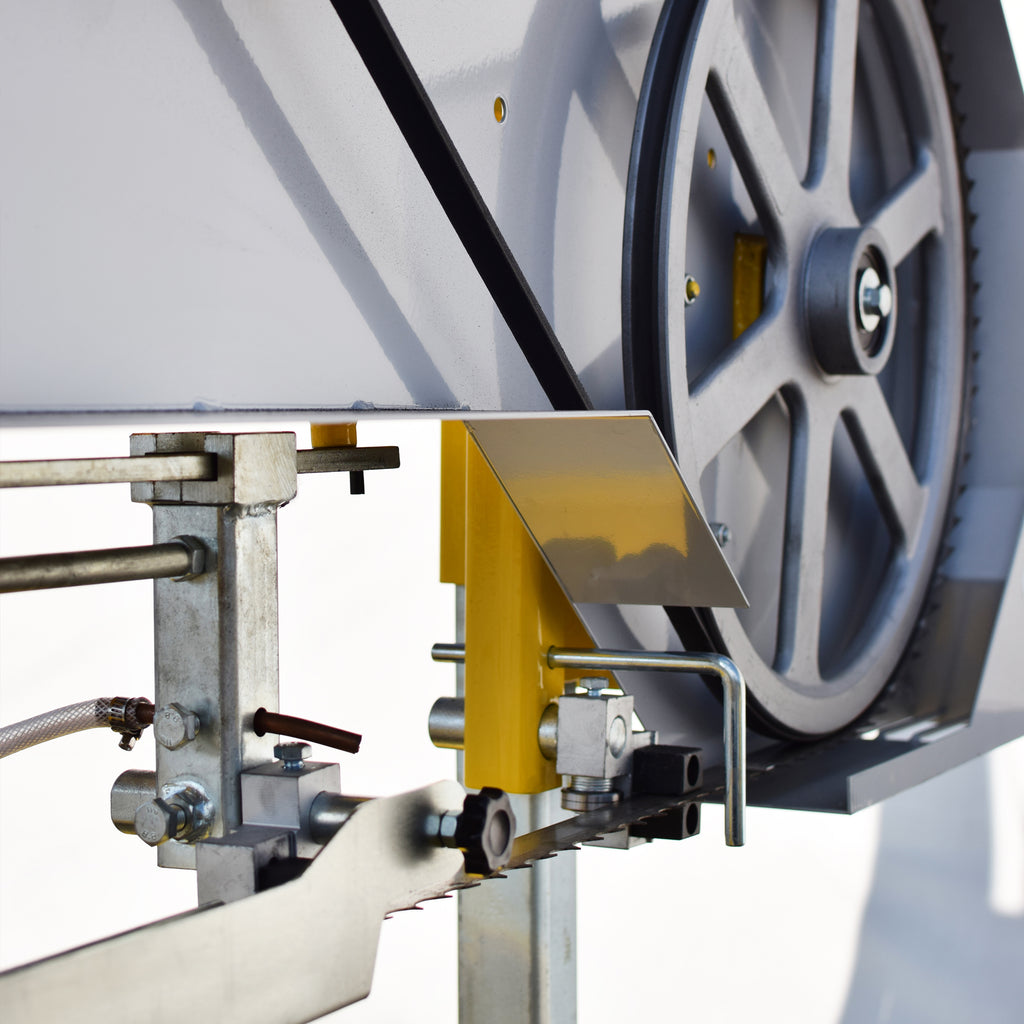

- robust and balanced drive wheels made of grey cast iron
- Precision -guided saw blade guide on both sides
- Basic version with 6.15 m runway
- Coolant system with 5 liter container and dosing tap
- manual feed and manual height adjustment with measuring scale
- quick fixation of the tree trunk through eccentric clamping system
- max. cutting length of 5.30 m of the standard version
- powerful 8.0 kW engine
- large and clear control panel
- Cutting length can be extended as required with optional roller track extension (2.05 m)
- including 1x saw band
Technical data band saw
Driven by electric motor
Wheel diameter 470 mm
Height adjustment of saw unit manually (handwheel)
Wheel width 25 mm
Max. board width 610 mm
Max. cutting width between saw blade and frame 155 mm
Max. trunk diameter 730 mm
Min. / Max. saw band stroke 35 / 710 mm
Min. / Max. cutting length 1300 mm / unlimited
Motor power 8000 watts
Motor type: Electric motor
Saw blade width 32 mm
Saw blade length 3790 mm
Cutting length basic version 5300 mm
Voltage 400 V / 50 Hz
Extension section 2.05 mm (optional)
Coolant tank volume 5 liters
Manual feed
Machine dimensions
Width 1870 mm
Height 1860 mm
Length 2050 - 6150 mm (total length basic version)
Machine weight (kg) 382
Weight with packaging (kg) 395
Shipping details
Number of packages1
Width of packaging 620 mm
Height of packaging 830 mm
Length of packaging 2120 mm
Shipping weight 395.00 kg
Shipping method: Freight forwarding
