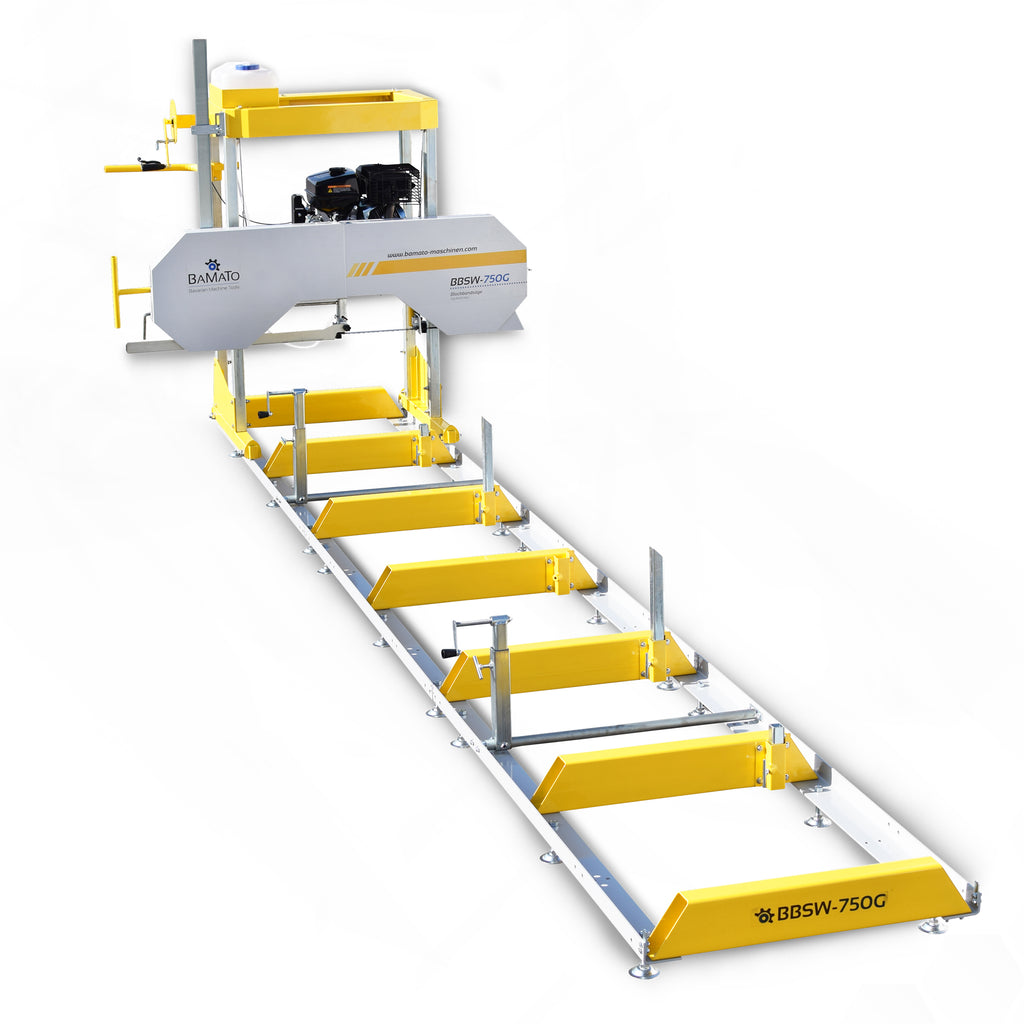

The new The BAMATO BBSW-750G log band saw is a true powerhouse. Powered by a 9.0 kW gasoline engine with electric start, it features balanced and robust cast iron drive wheels for perfect cutting results. This machine is ideal for precise sawing of soft, hard, and dry woods.
- robust and balanced drive wheels made of grey cast iron

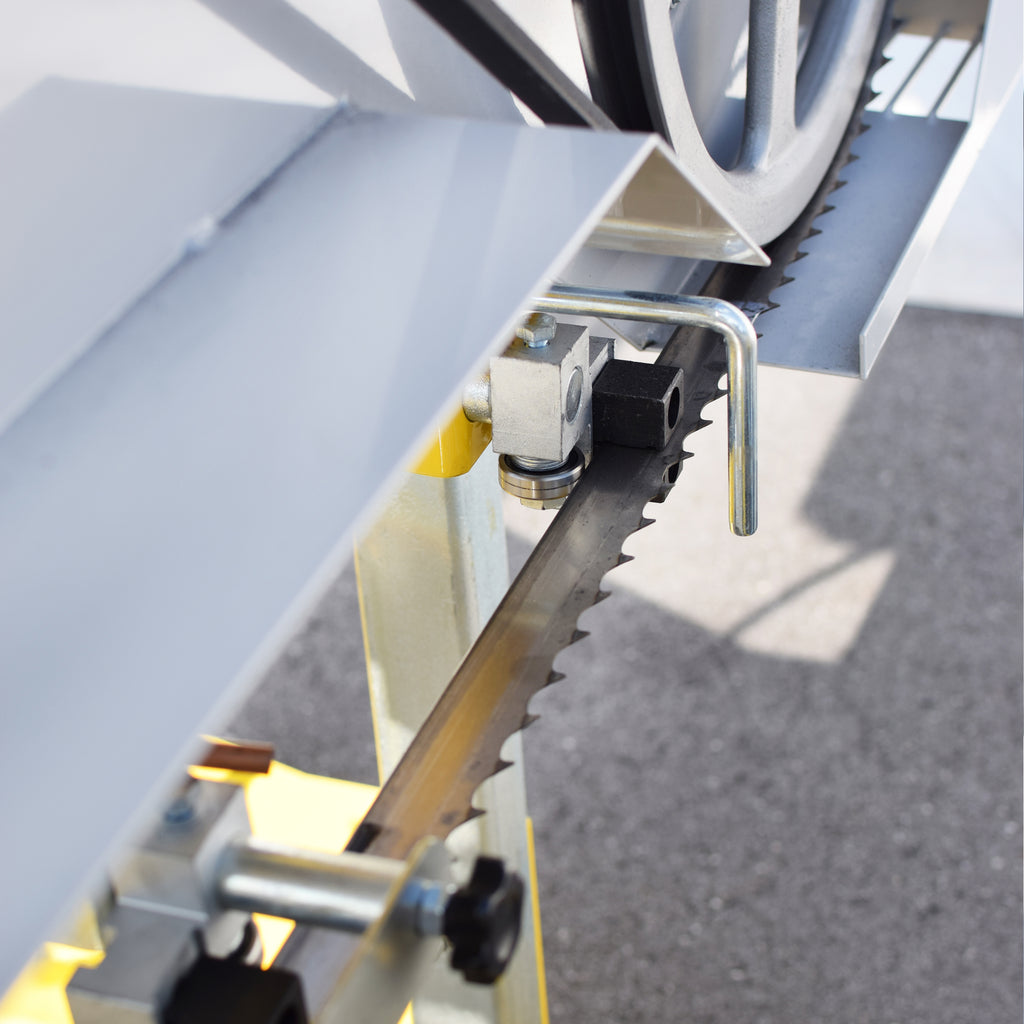

- Precision -guided saw blade guide on both sides
- Basic version with 6.15 m runway
- Coolant system with 5 liter container and dosing tap
- manual feed and manual height adjustment with measuring scale
- quick fixation of the tree trunk through eccentric clamping system
- max. cutting length of 5.30 m of the standard version
- powerful 9.0 kW engine with electric start
- Cutting length can be extended as required with optional roller track extension (2.05 m)
- including 1x saw band, battery
Technical data band saw
Driven by petrol engine
Battery included
Operating speed 3600 min-1
Wheel diameter 470 mm
Height adjustment of saw unit manually (handwheel)
Displacement 420 cc
Wheel width 25 mm
Max. board width 610 mm
Max. cutting width between saw blade and frame 155 mm
Max. trunk diameter 730 mm
Min. / Max. saw band stroke 35 / 710 mm
Min. / Max. cutting length 1300 mm / unlimited
Engine power 9.0 kW
Engine type RATO R420
Saw blade width 32 mm
Saw blade length 3790 mm
Cutting length basic version 5300 mm
Starting systemReversing starter and electric starter
Extension section 2.05 mm (optional)
Coolant tank volume 5 liters
Manual feed
Machine dimensions
Width 1870 mm
Height 1860 mm
Length 2050 - 6150 mm (total length basic version)
Machine weight (kg) 323
Weight with packaging (kg) 376
Shipping details
Number of packages 1
Width of packaging 620 mm
Height of packaging 830 mm
Length of packaging 2120 mm
Shipping weight 376 kg
Shipping method: forwarding agent
