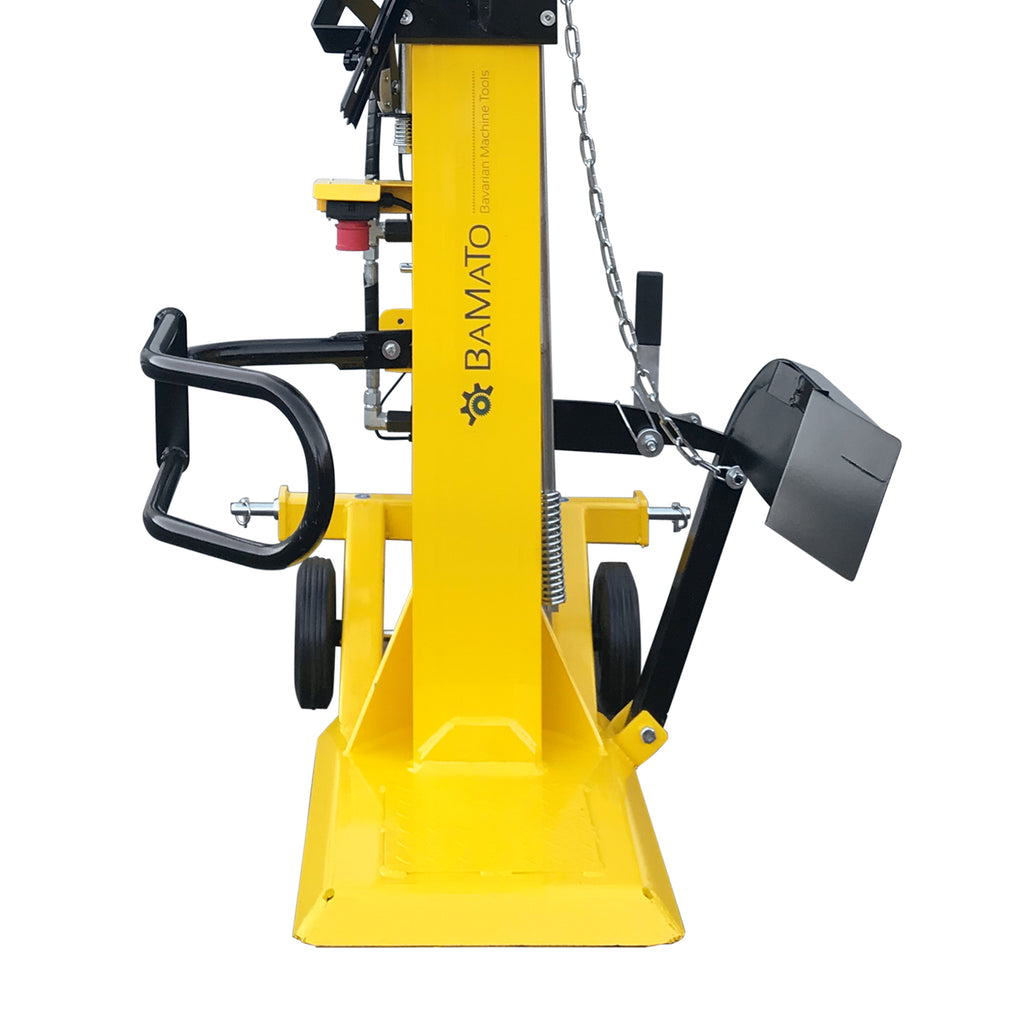

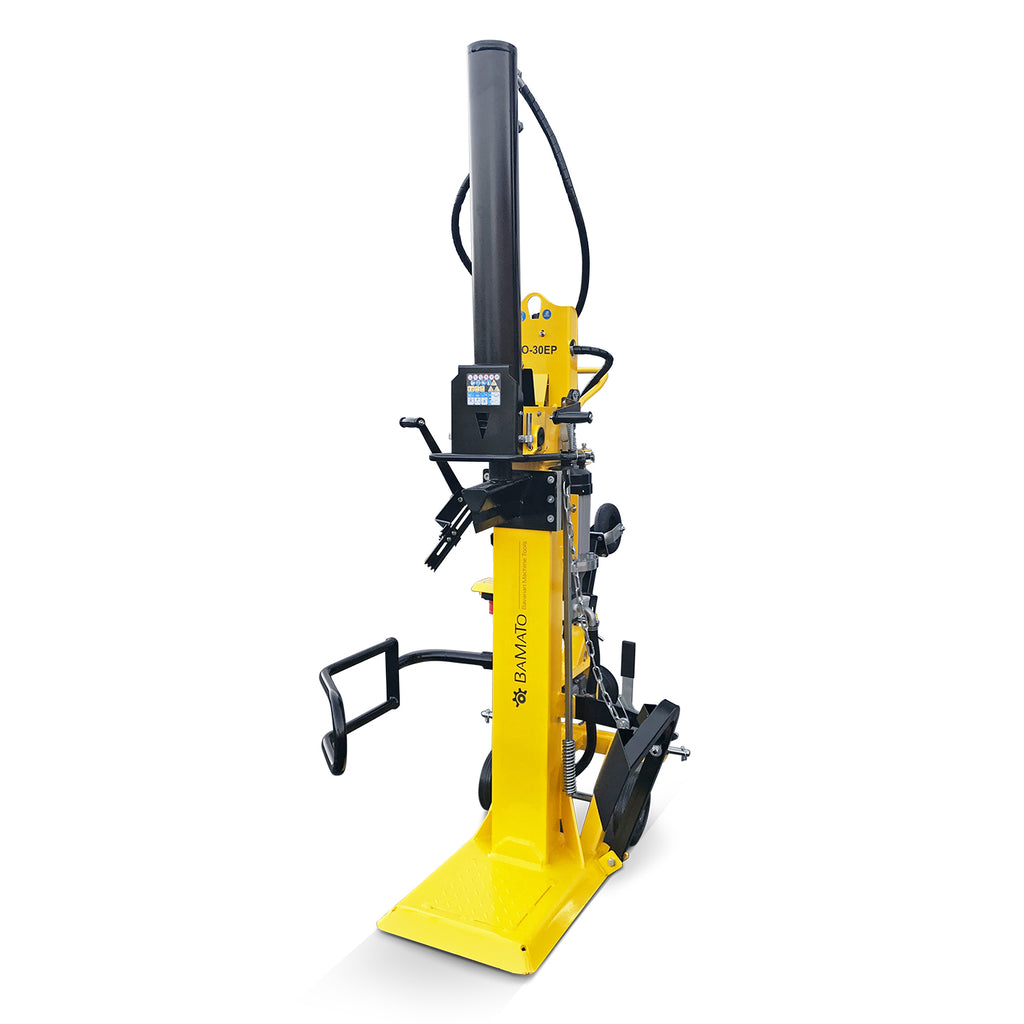

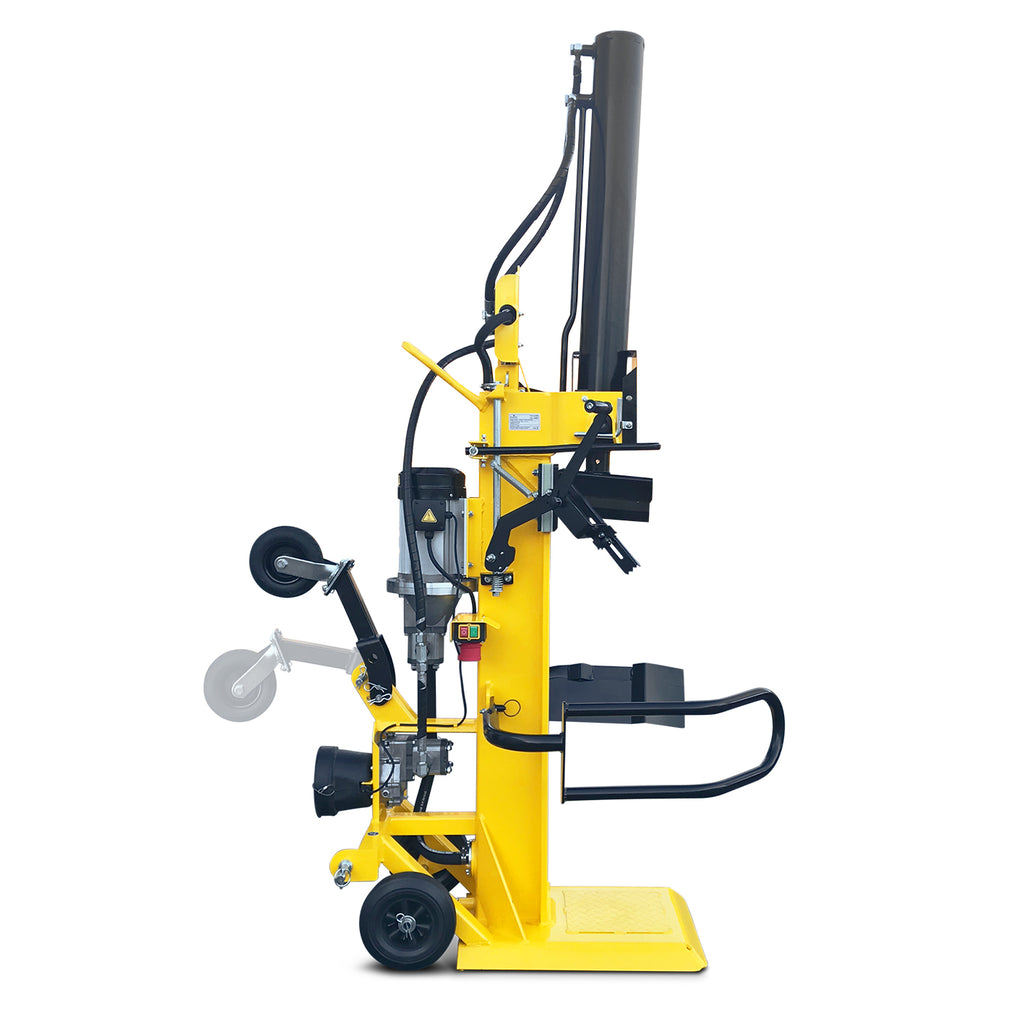

The BAMATO log splitter HO-30EP: The powerhouse among log splitters ! It masters even the toughest tasks and is capable of processing up to 30 tons of logs - perfect for professional use. Thanks to the powerful Combination of 400V electric and cardan shaft drive 1100 mm of wood is no problem. Safe and flexible use is guaranteed, even in the forest.
- Log lifter for lifting logs up to 1100 mm in size (hard and soft wood)
- Splits 30 tons
- Two forward speeds adjustable (slow and fast)
- Incl. three-point hitch for tractor
- Electric drive 400V with phase inverter and cardan shaft drive

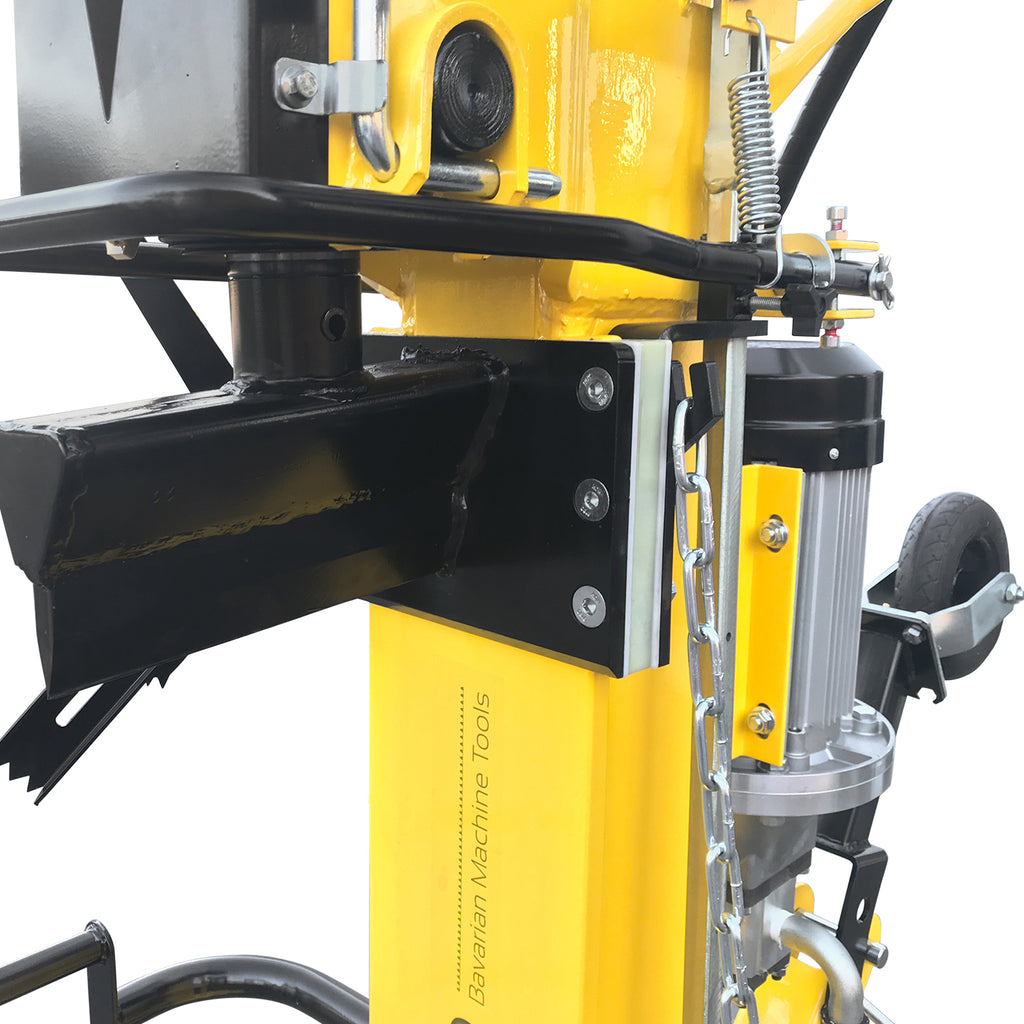

- Incl. side holding arm for wood fixation
- Torsion-resistant and robust steel construction
- Splitting stroke continuously adjustable
- Low base plate for easy insertion of logs
- Safety operation according to the latest standard
- Extremely space-saving thanks to lowerable cylinder and foldable support arms
- Ideal for easy transport thanks to chassis and rotating support wheel
- Pre-filled with hydraulic oil
Scope of delivery : including chassis, side support arm, log lifter, support wheel and German operating instructions
Technical data wood splitter
Drive via electric motor and PTO drive
Hydraulic pressure 25.30 MPa
Hydraulic oil HLP46
Hydraulic oil volume 30 liters
Tractor power requirement 2 0 HP
Max. gap diameter 400 mm
Max. splitting stroke 948 mm
Max. gap length 1100 mm
Motor power 5500 watts (S6 40%)
Phase inverter Yes
Return speed 6.7 cm/s
Protection class IP54
Splitting force 30 tons
Voltage 400 V / 50 Hz
Forward speed 3.7 cm/s | 12.5 cm/s
PTO speed 540 rpm
Machine dimensions
Width 1800 mm
Height 2500 mm
Length 1050 mm
Machine weight (kg) 374
Weight with packaging (kg) 387
Noise emission
Sound pressure level 80 dB(A)
Shipping details
Number of packages 1
Width of packaging 680 mm
Height of packaging 2000 mm
Length of packaging 940 mm
Shipping weight 387.00 kg
Shipping method: forwarding agent
