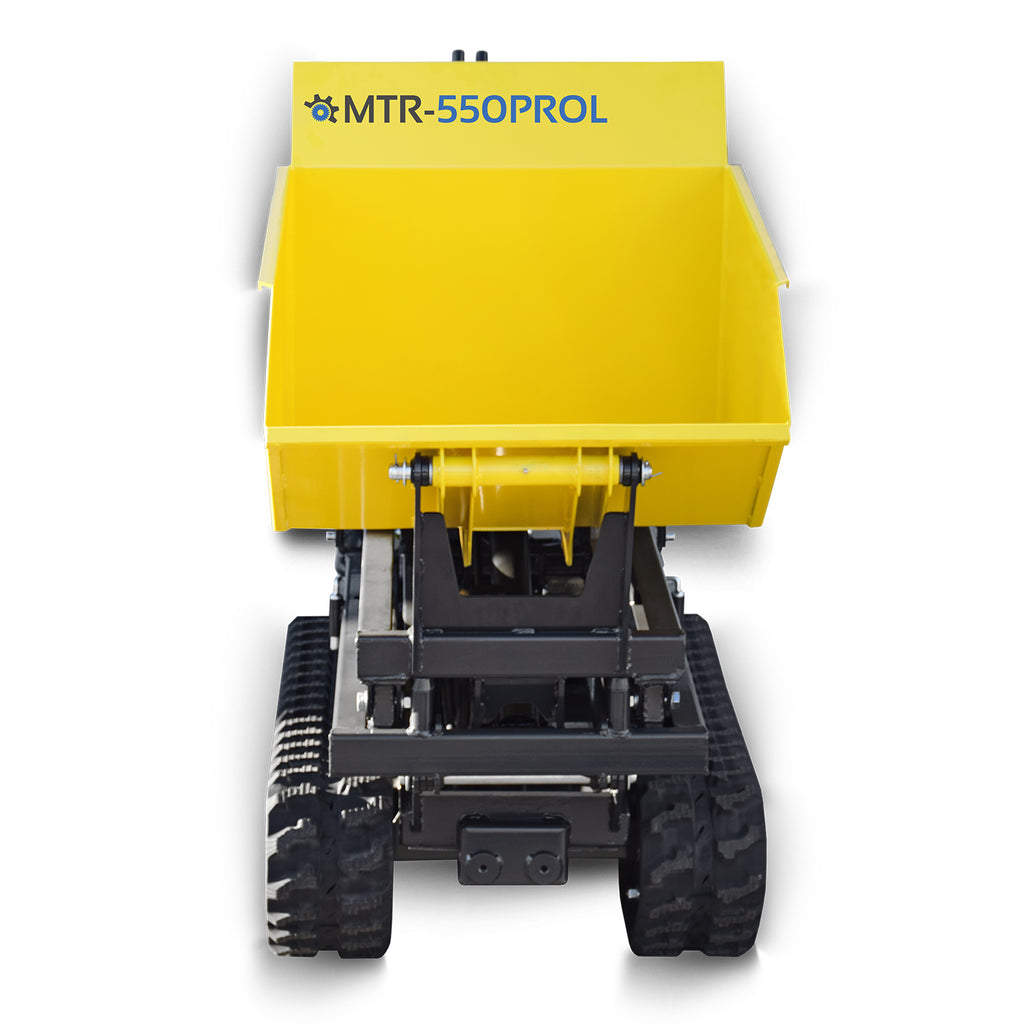

The BAMATO Mini tracked dumper MTR-550PROL is equipped with a tipping hydraulic and a lifting function With the lift function, the trough can be Loading and unloading at different working heights The new, innovative 6-speed transmission "Made in Japan" ensures perfect handling. As an additional highlight, the dumper has a folding standing platform as standard for the operator.
- The all-rounder provides valuable services as a transport aid even in rough terrain
- Easy tipping of loads up to 500 kg using tipping hydraulics
- The MTR-550PROL is used in gardening and landscaping, forestry, renovation work, and much more.
- The compact and narrow design allows driving through doors and narrow paths
- Lift function for loading and unloading the trough at different working heights (max. 1410 mm)
- solid steel construction and reinforced, straight trough
- 6 forward and 2 reverse gears
- robust rubber chain with chain tensioner
- Steering is done by means of steering brakes
- perfect for rough terrain thanks to the Ground clearance of 110 mm
- standard with folding stand platform
Technical data dumper
Drive gear transmission
Straight body trough with 215 litre capacity
Operating speed 3000 min-1
Ground clearance 110 mm
Brake automatic safety brake
Gears 6 forward and 2 reverse gears
Displacement 270 cc
Hydraulic tipping hydraulics for trough, tiltable forward
Tipping container (L/W/H) 950 x 690 x 460 mm
Hydraulic tilting mechanism
Fuel type: gasoline
Steering steering brake
Max. load 500 kg
Engine manufacturer Loncin
Engine power 6.0 kW
Recoil starter
Machine dimensions
Width 720 mm
Height 1260 mm
Length 1850 mm
Machine weight (kg) 355
Weight with packaging (kg) 398
Shipping details
Number of packages 1
Width of packaging 820 mm
Height of packaging 840 mm
Length of packaging 2250 mm
Shipping weight 398.00 kg
Shipping method: forwarding agent
