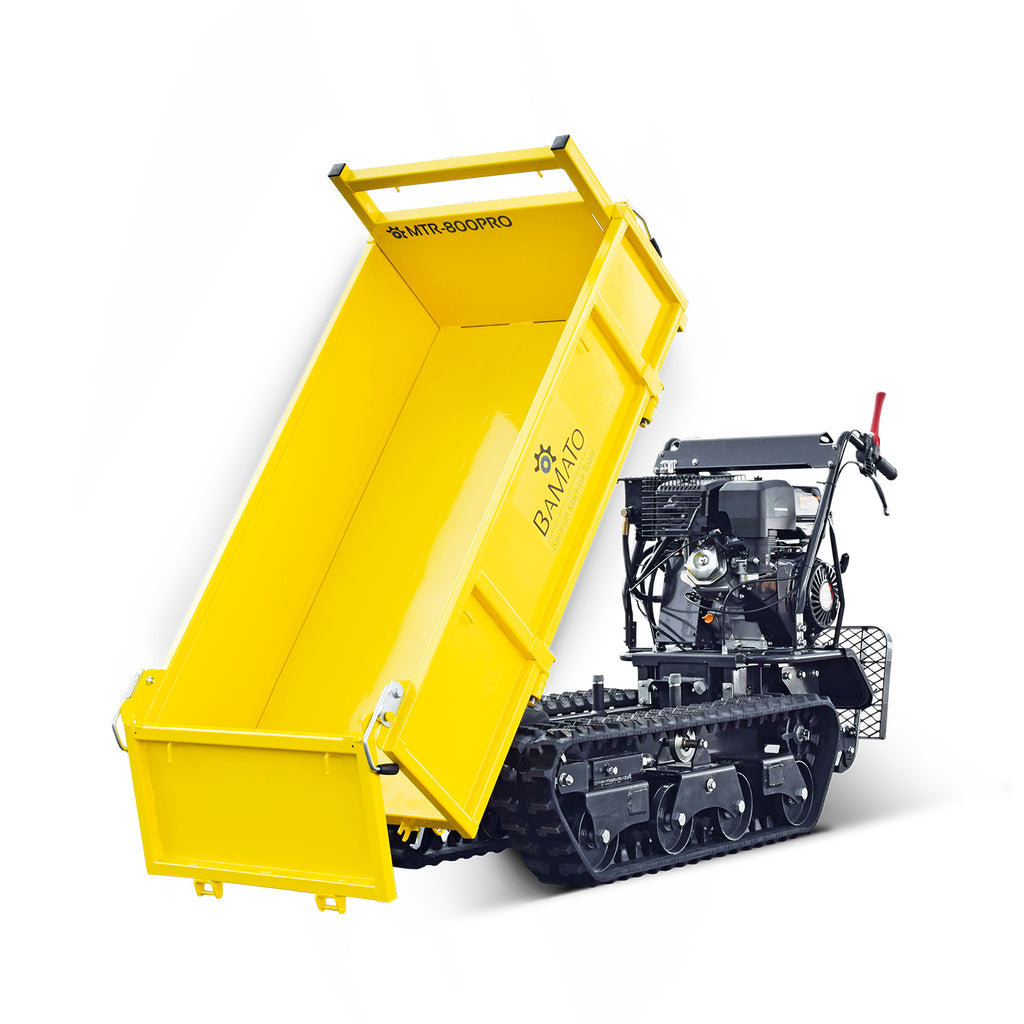

The BAMATO tracked dumper MTR-800PRO is a real powerhouse and the largest dumper in the MTR series. The tipping hydraulics with an 800 kg lifting capacity ensure easy tipping of scissor loads. This all-rounder provides valuable transport assistance, even on rough terrain. The MTR-800PRO is used in gardening and landscaping, forestry, and renovation work, among other applications. A foldable operator platform ensures optimal operating comfort. The MTR-800PRO is equipped with foldable side walls , which can also be completely removed to use the superstructure as a transport platform .
- The compact and narrow design allows driving through doors and narrow paths
- Simple tipping by tipping hydraulics
- Solid steel construction allows a payload of up to 800 kg
-
6 forward and 2 reverse gears offer optimal operating comfort for the respective work environment, thanks to the new innovative transmission "Made in Japan"
- Robust rubber track with chain tensioner
- Steering is done by means of steering brakes
- Preparation for optional dozer / snow blade
- Scope of delivery including tipping container with folding side walls
- Illustrations partly with optionally available superstructures such as straight hopper, wooden stake attachment
Technical data dumper
Drive gear transmission
Construction of tipping container with folding side walls
Operating speed 3000 min-1
Ground clearance 110 mm
Brake automatic safety brake
Gears6 forward and 2 reverse gears
Displacement 389 cc
HydraulicsTilt hydraulics tilt forward
Tipping container (L/W/H)1310 x 710 x 310 mm
Hydraulic tilting mechanism
Fuel type: gasoline
Steering steering brake
Max. load 800 kg
Engine manufacturer Loncin
Engine power 8.2 kW
Recoil starter
Machine dimensions
Width 780 mm
Height 1030 mm
Length 2220 mm (operating platform folded)
Machine weight (kg) 383
Weight with packaging (kg) 398
Shipping details
Number of packages 1
Width of packaging 800 mm
Height of packaging 1050 mm
Length of packaging 2100 mm
Shipping weight 398.00 kg
Shipping method: forwarding agent
