Description
TÜV Süd Certified
Pro Series - barrier-free

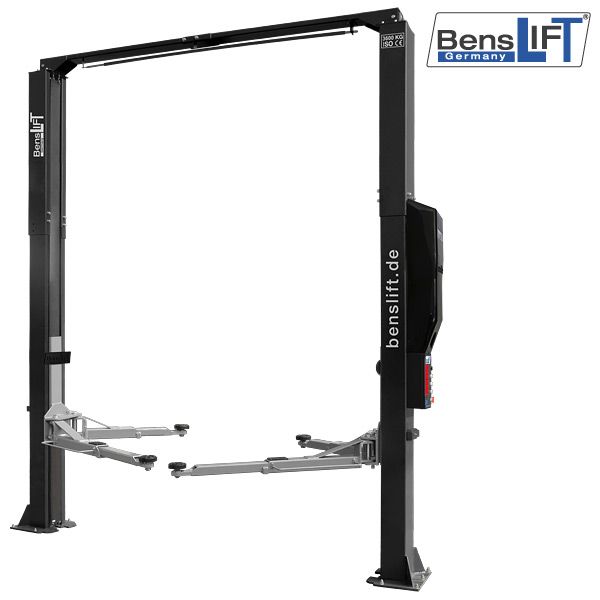

The BL 2.42-C43 of the Pro series with barrier-free passage Benslift is a lifting platform for heavy-duty use. professional workshop use. With the BL 2.42-C43 and a lifting capacity of 4200 kg, everything from Smart cars to small vans can be lifted (e.g. Fiat Ducato L4).

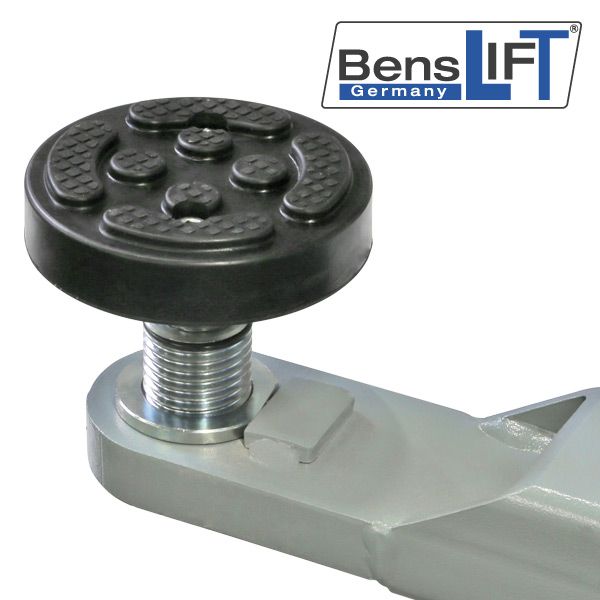

Top-of-the-line equipment is characterized by automatic unlocking the safety lock, high-quality powder coating, height-adjustable two-stage turntables with double thread and anti-rotation protection.
On the outside of each column there is a Practical plug adapter holder that offers space for the safe storage of two plug adapters at a time.

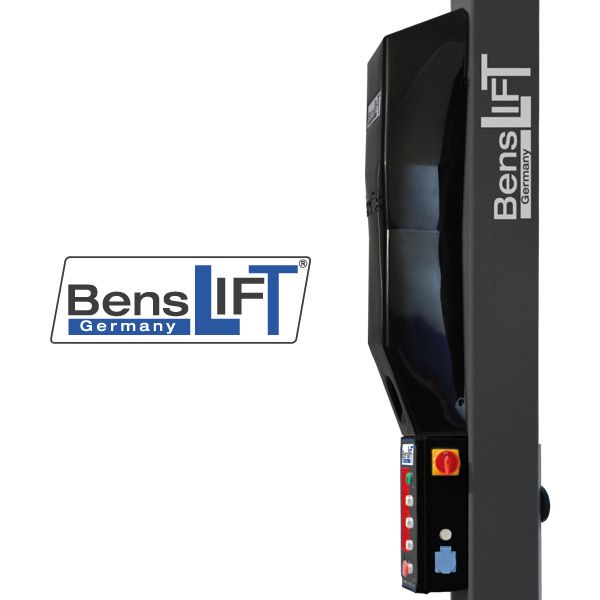

Anti-lift-up button for precise lowering of the lifting platform without prior automatic raising. Also included is a... convenient 230V socket directly at the control box.
The Optionally available air kit. The perfect complement to your Pro-Series 2-post lift, which integrates discreetly into the engine cover.
 |
Special features |
- Top-quality workmanship with CE certification
- Production after ISO 9001
- Anti-lift-up button
- Practical 230V socket directly at the control box
- Protective cover in front of the pillars
- Automatic safety locking and unlocking
- High-quality support columns made from special rolled profiles
- 2 hydraulic cylinders for powerful lifting and lowering
- Automatic support arm locking mechanism
- Synchronization via wire ropes

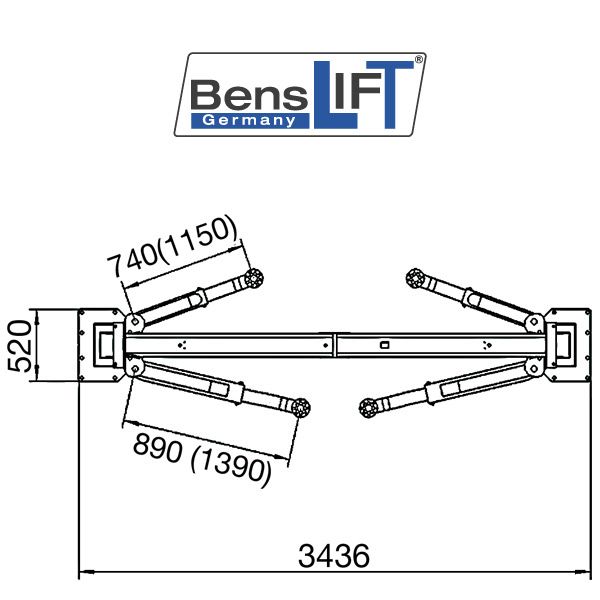

- Telescopic support arms

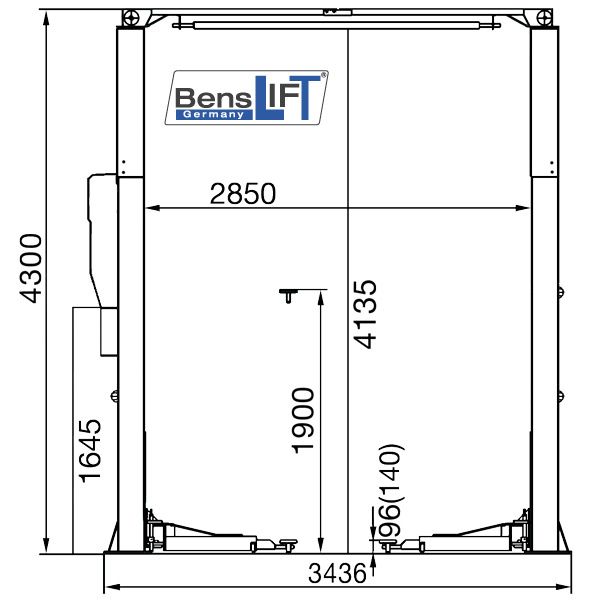

- Total height 4300 mm
- Practical plug adapter holders (one bracket on each side of the column) for two plug adapters each
-

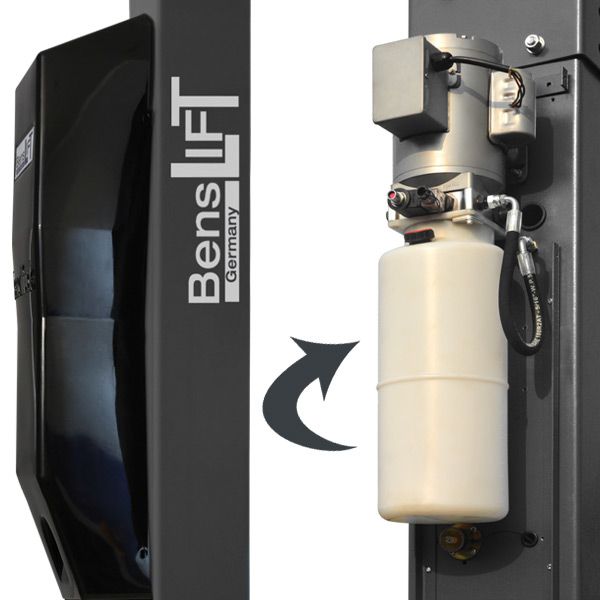

Includes engine cover
(Stylish design, protection against dust and noise reduction)
 |
Technical data |
| Load capacity CE | 4200 kg |
| Maximum lifting height. | 1900 mm/Ad 2080 |
| Swivel height | 96 mm |
| Lifting and lowering time approx. | 45/30 sec. |
| Drive voltage | 400V / 3 phases |
| Drive power | 2.2 kW |
| Security | 16 A |
| Dead weight | 700 kg |
 |
Scope of delivery |
- Lifting platform including motor unit and motor cover
- Van extensions (4 pcs.)
- Plug-in adapter holders
- Heavy-duty anchors (10 pcs.)
- Door stop rubbers
- German operating and assembly instructions
- Test log and CE certificate
- Oil not included - can be ordered separately (capacity: 10L)
- Vehicle not included in the delivery
