Description
TÜV Süd Certified

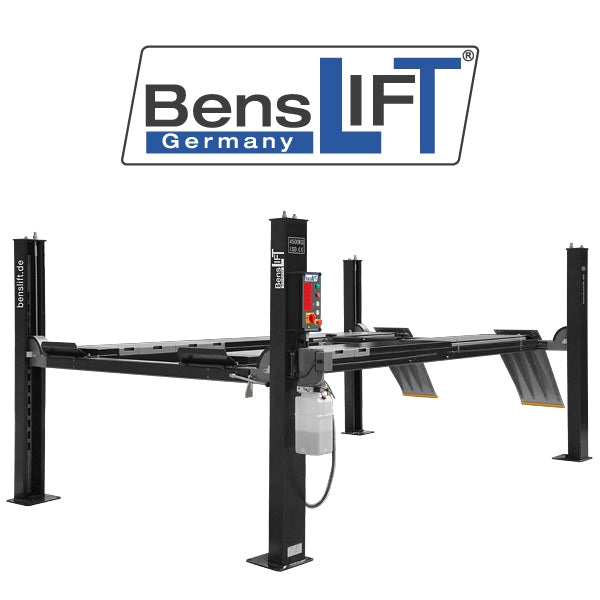

The BL 4.45 is the ideal lift for direct vehicle reception or wheel alignment. Combined with the optional axle lift, it's the perfect work lift.
The 4-post lift can easily lift any vehicle, from cars to vans.
 |
Special features |
- Top-quality workmanship with CE certificate for UVV approval
- Production after ISO 9001
- New, including VAT.
- 4500 kg Lifting capacity

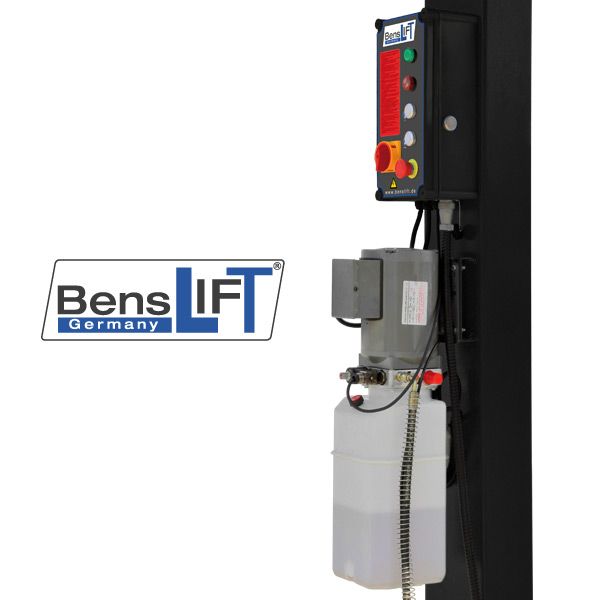

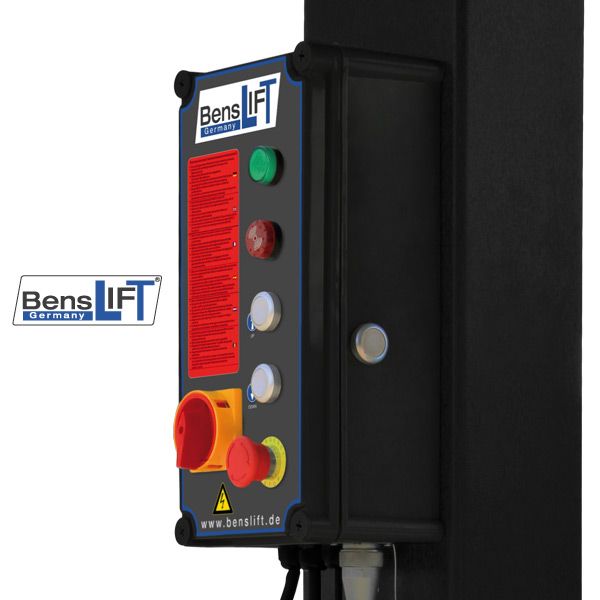

- IP 54 control box with 24V control unit
- 24V limit switch
- Hydraulic overload valve
- Vehicle roll-off protection
- Detent positions across the entire stroke height
- slack rope and rope break safety device
- Sliding panels

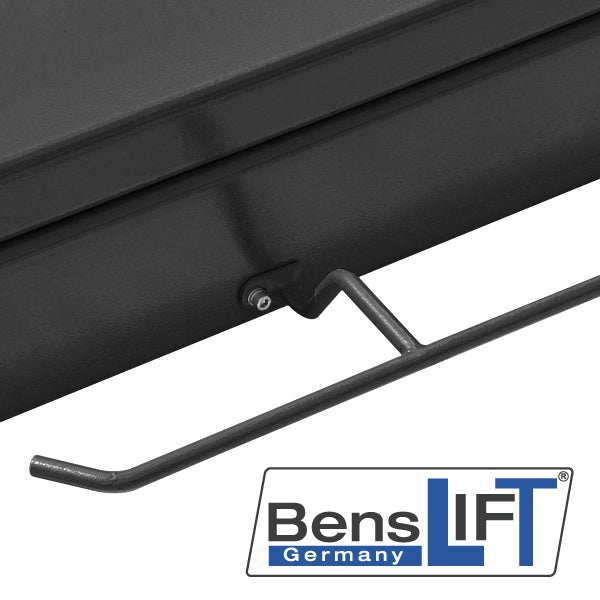

- Footrest
- Acoustic warning device
- Maximum wheelbase for axle alignment: 3700 mm
- Maximum wheelbase for lifting: 4100 mm
 |

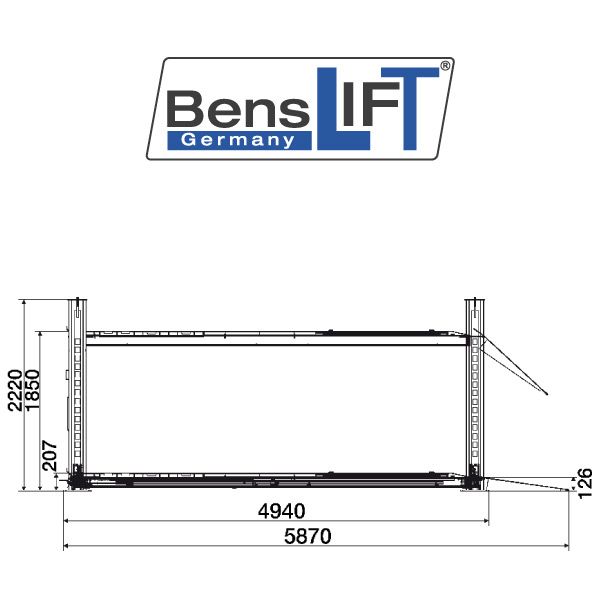

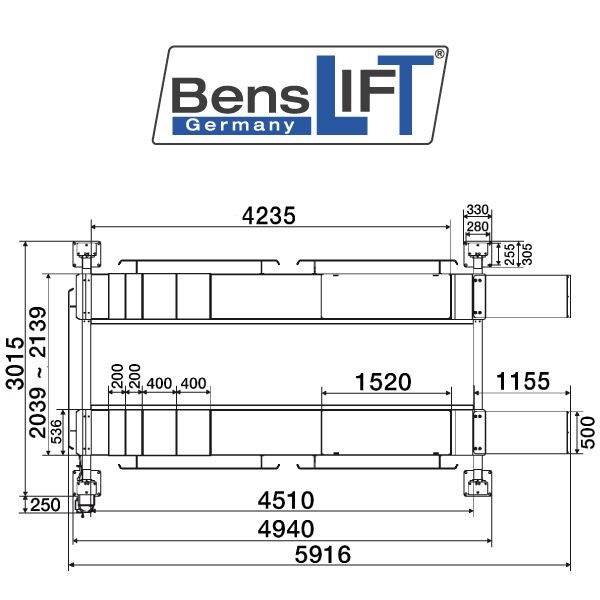

Technical data |
| Load capacity CE | 4500 kg |
| Maximum lifting height. | 1850 mm |
| lane length | 4510 mm |
| lane width | 536 mm |
| Drive-up height | 126 mm |
| Lifting time approx. | 50 sec. |
| Drive voltage | 400V/3 phases |
| Drive power | 2.2 kW |
| Security | 16 A |
| Dead weight (approx.) | 1400 kg |
 |
Scope of delivery |
- Lifting platform including motor unit
- German operating and assembly instructions
- Inspection log and CE certificate for UVV acceptance
- optional: turntable
- optional: axle jack (2 t / pneumatic)
- Oil not included - can be ordered separately (capacity: 10L)
- Vehicles not included in the scope of delivery
