Description
TÜV Süd Certified

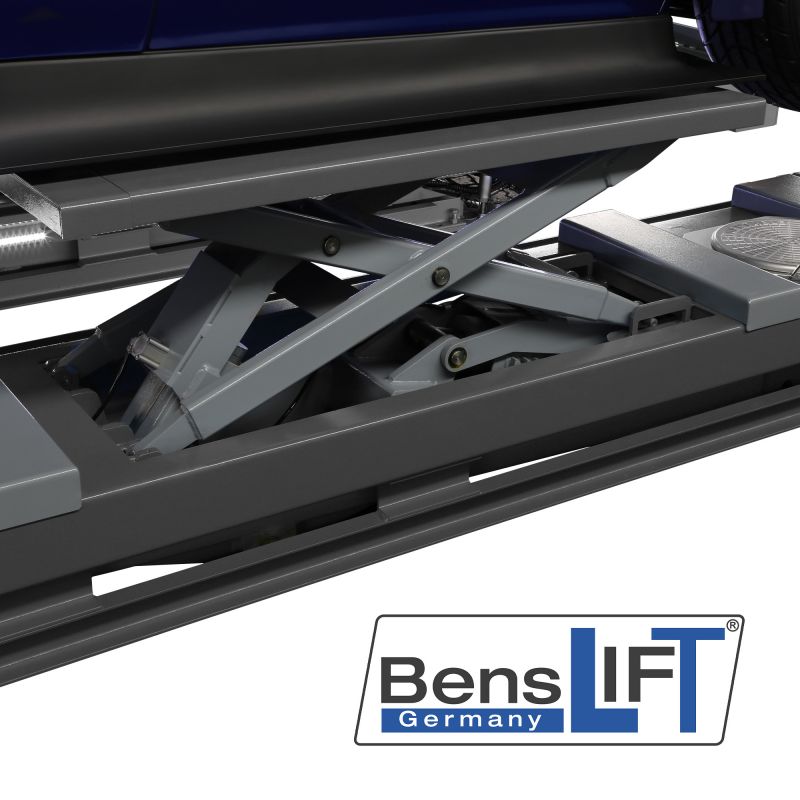

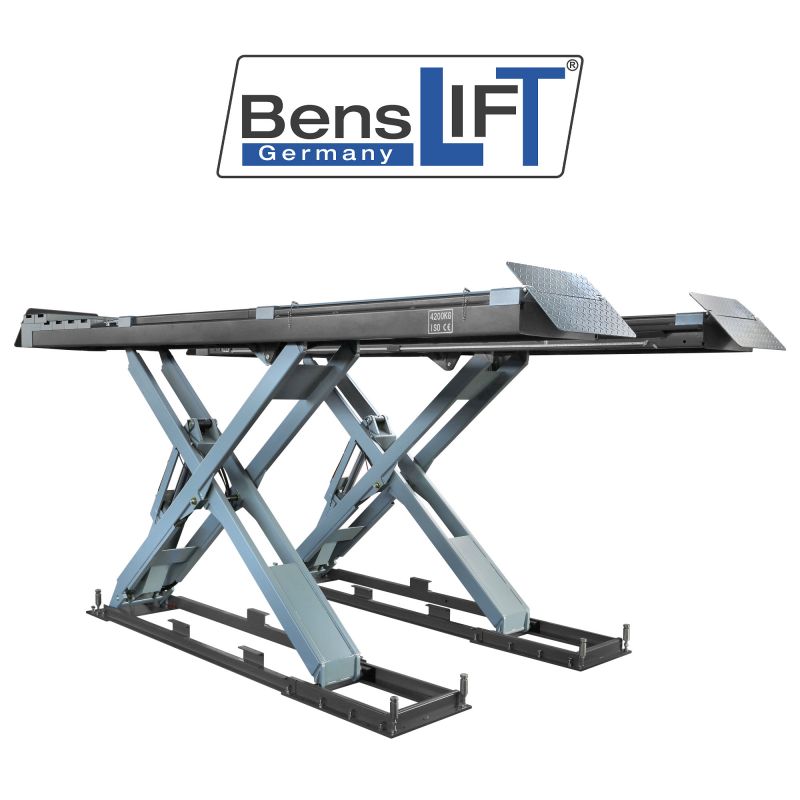

Drive-on scissor lift for flush installation with integrated wheel-free lift.
The integrated wheel-free lift allows the entire vehicle (car) to be lifted with all four wheels. Furthermore, the BL SA42U features guide rails in the carriages, enabling the use of an additional axle-free lift.
For axle alignment, a ratchet system for setting into the safety notches.
Rear swing plates and recesses with 6 insert plates for turntables allow for a very flexible application range from small to large wheelbase.

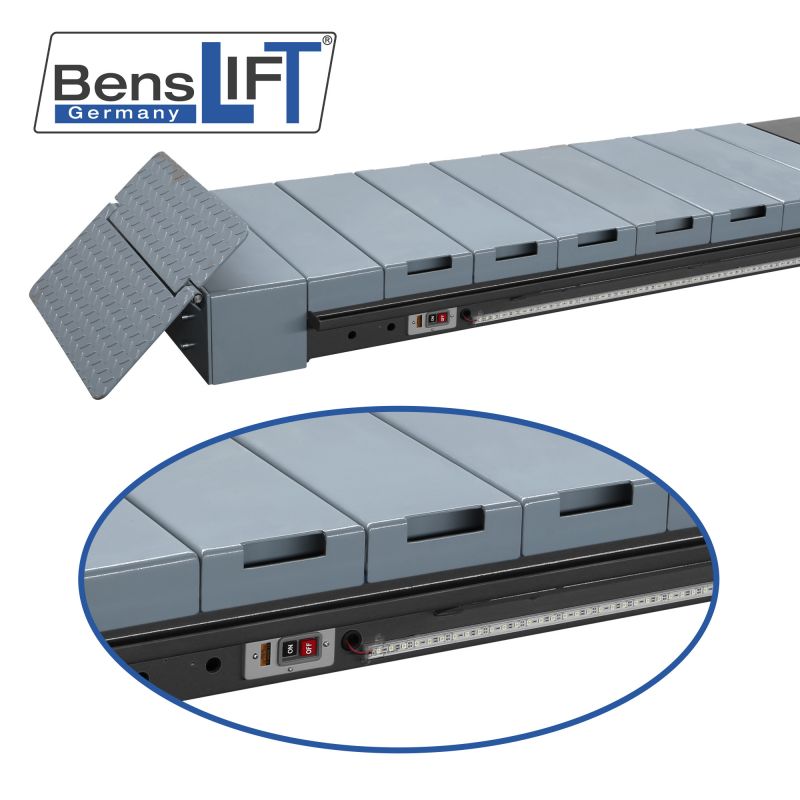

With integrated LED lighting on the left and right sides of the roadway along its entire length.
Also ideally suited as a receiving platform or as a headlight testing station.
 |
Special features |
- Top-quality workmanship with CE certificate for UVV approval
- Production after ISO 9001
- CE stop and signal tone when lowering

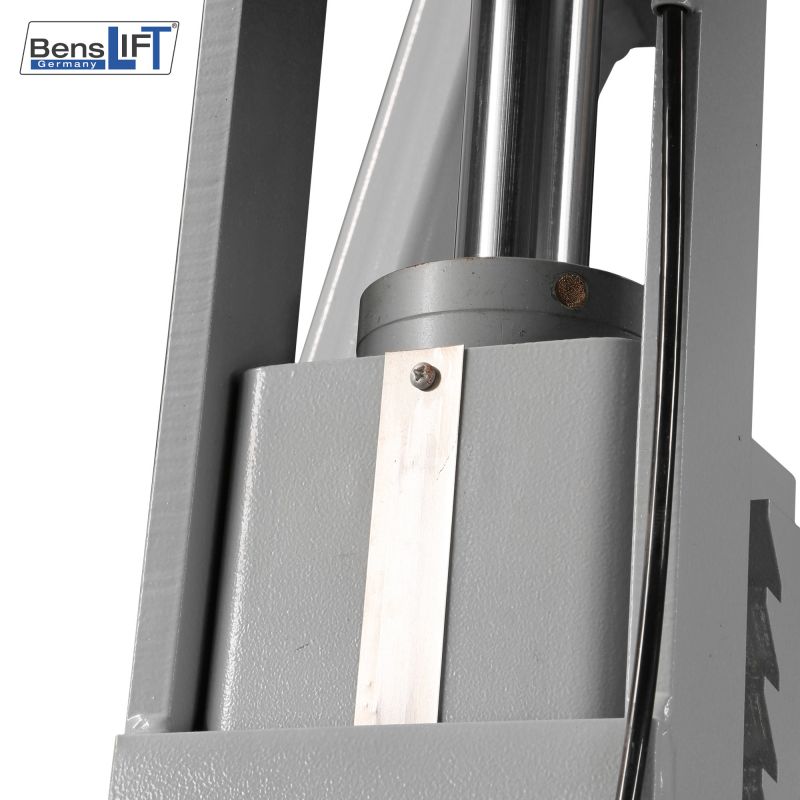

- Hydraulic synchronization
- Wheel-free jack with extendable vehicle supports
- Guide rails for the use of axle lifts

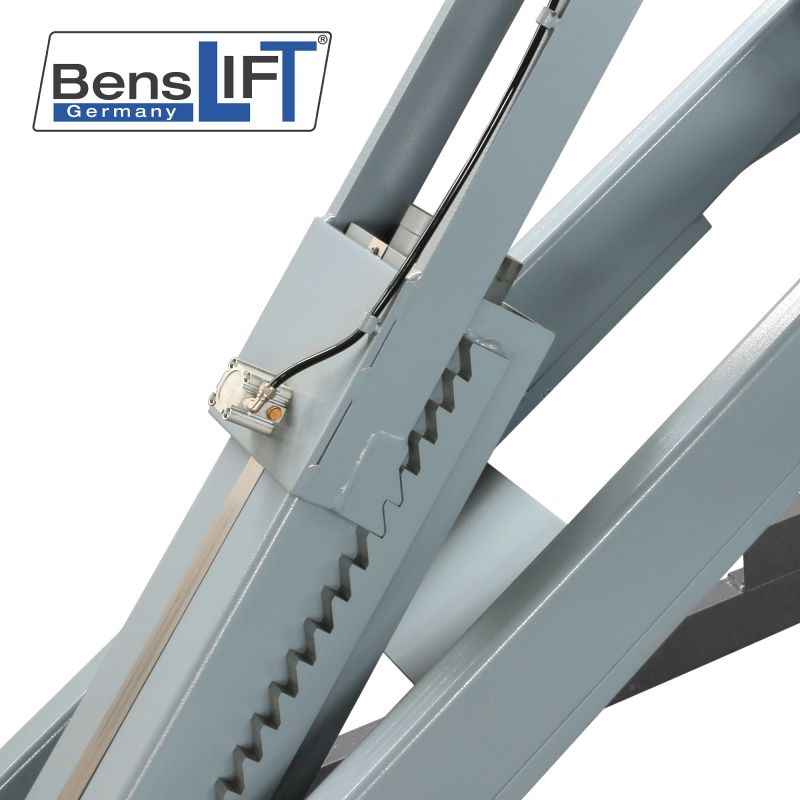

- Automatic safety locking and unlocking (compressed air required)

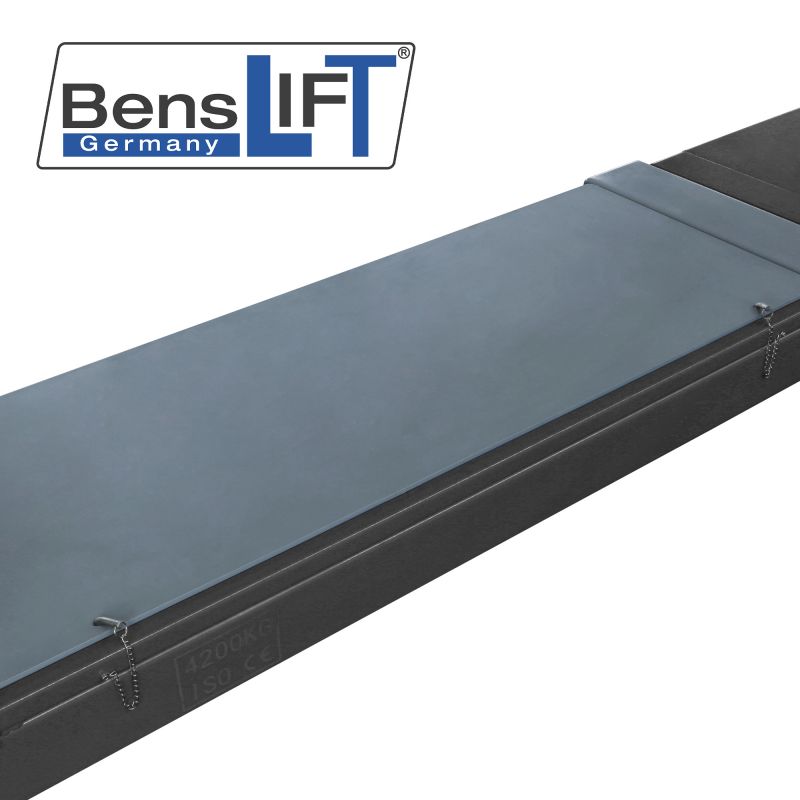

- Roadway with roll-off protection
- LED lighting options on the lifting platform
- Hose package 3000 mm
- Compressed air at 4-8 bar is required.
 |
Technical data |
| Load capacity CE | 4200 kg |
| Maximum lifting height. | 2040+450 mm |

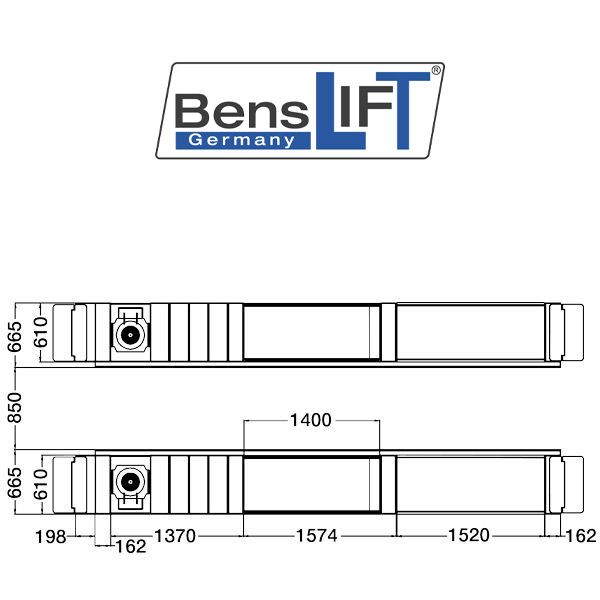

| Lane L./B. | 5000/610 mm |
| Lifting and lowering time approx. | 45/30 sec. |
| Drive voltage | 400V / 3 phases |
| Drive power | 2.2 kW |
| Security | 16 A |
| Dead weight | 2050 kg |
 |
Scope of delivery |
- Lifting platform including control unit
- Wheel-free lift
- rubber blocks
- 12 heavy-duty anchors
- Vibration plates
- 6 covers/insert plates (rotating plates optional)
- German operating and assembly instructions
- Inspection log and CE certificate for UVV acceptance
- Oil not included - can be ordered separately (capacity: 20L)
- Mounting frames and vehicles not included in the scope of delivery
