TÜV Süd Certified

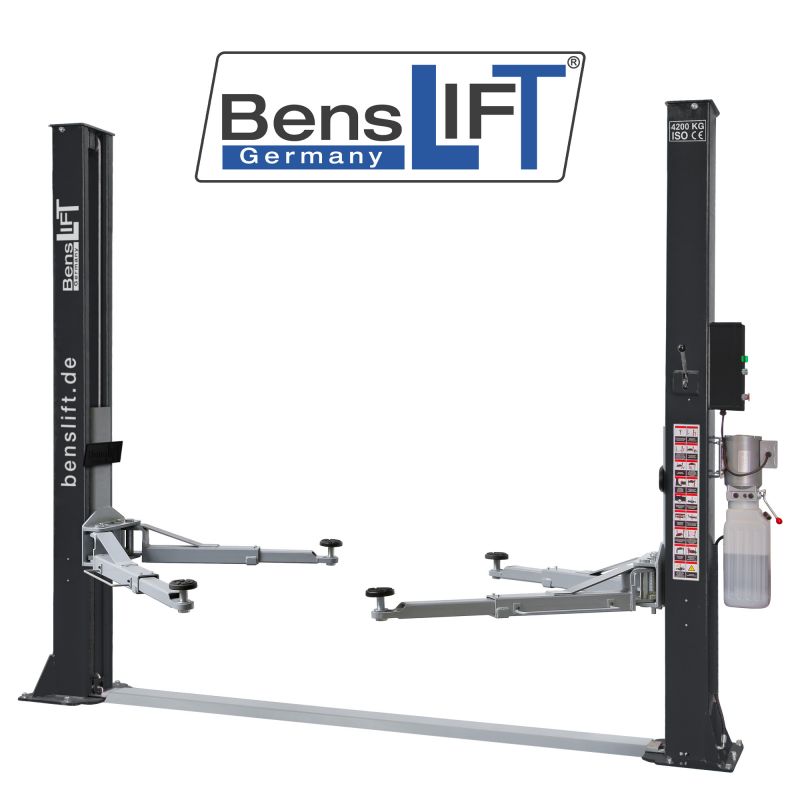

The Benslift BL 2.42M is the ideal entry-level lift with excellent value for money. With a lifting capacity of 4200 kg, the BL 2.42M can lift everything from a Smart car to small vans (e.g., Fiat Ducato L4).
Good equipment including height-adjustable turntables and a flat drive-over plate (only 35 mm) is a given.
New: Manual unlocking on only one side / Singlelock / One-handed unlocking.
-
Excellent build quality with CE certificate for UVV inspection
- Production after ISO 9001
- Mechanical safety latches

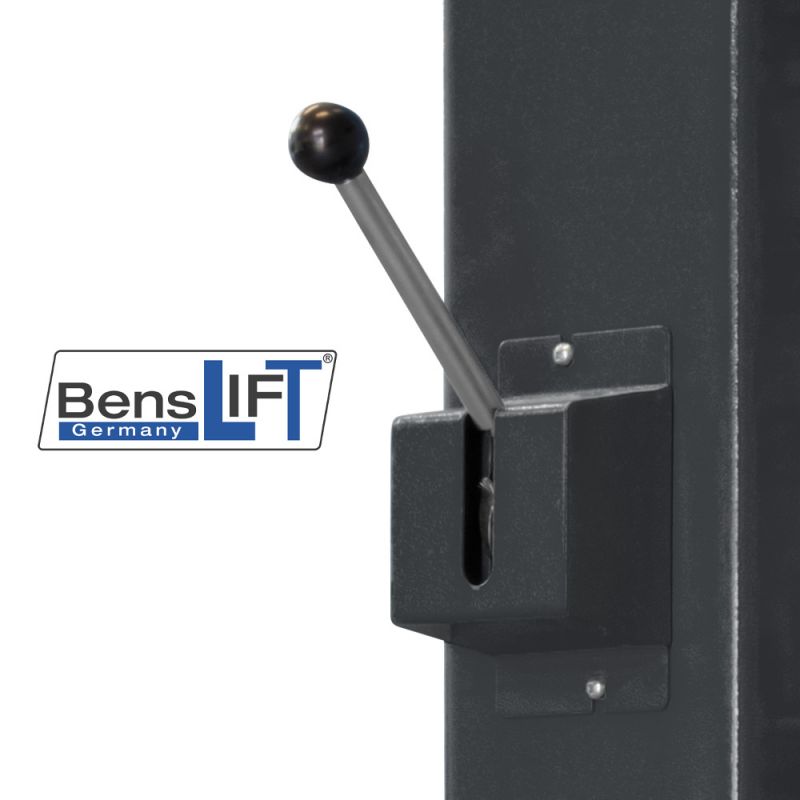

- Manual release on one side only / Singlelock / One-hand release
- High-quality support columns made from special rolled profiles
- 2 hydraulic cylinders for powerful lifting and lowering

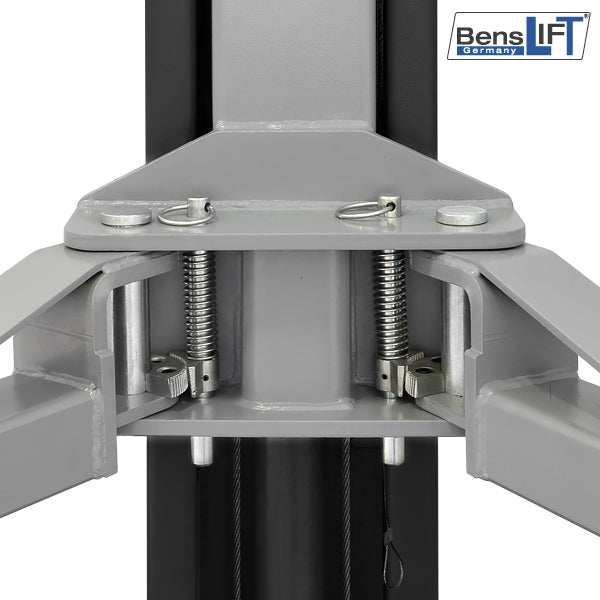

- Automatic support arm locking mechanism

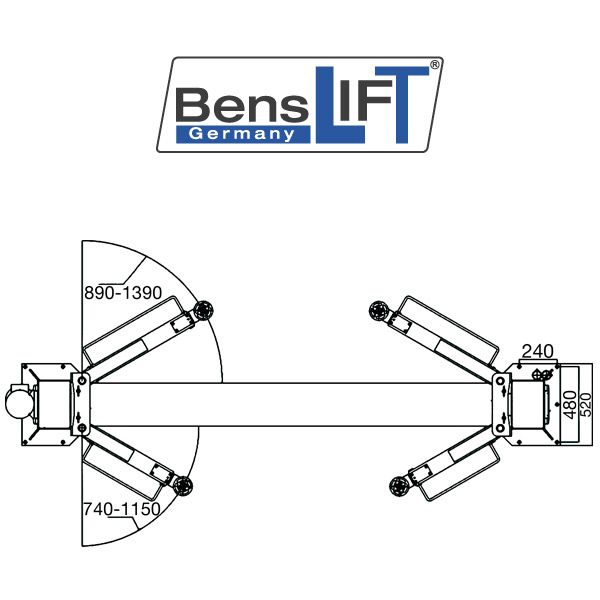

- Telescopic support arms
- High-quality powder coating
- Synchronization via wire ropes
| Load capacity CE |
4200 kg
|

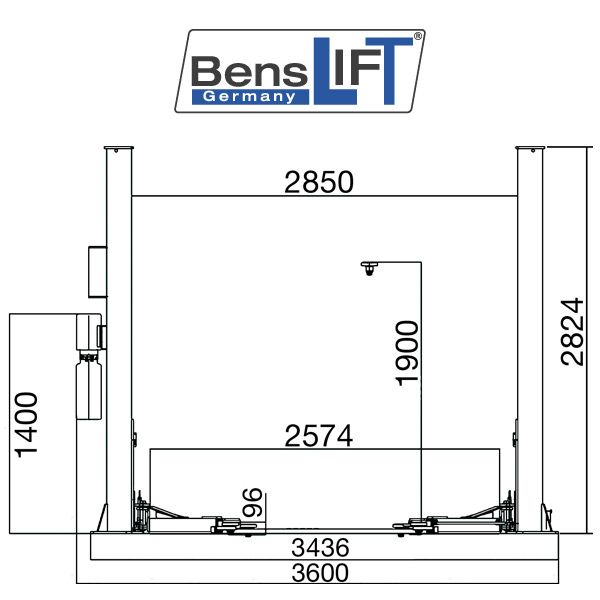

| Maximum lifting height. |
1900 mm/Ad 2050 |
| Swivel height |
96 mm |
| Lifting and lowering time approx. |
45/30 sec. |
| Drive voltage |
230V
|
| Drive power |
2.2 kW |
| Security |
16 A (C/Inert) |
| Dead weight |
600 kg |

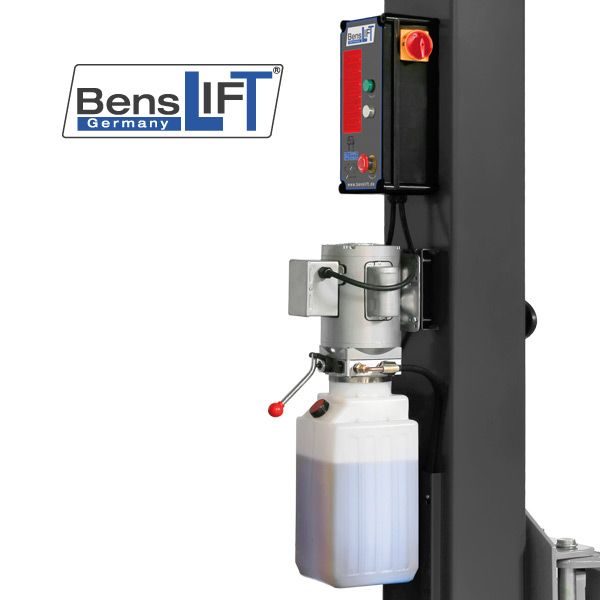

- Lifting platform including motor unit
- Heavy-duty anchors (10 pcs.)
- Door stop rubbers
- German operating and assembly instructions
- Inspection log and CE certificate for UVV acceptance
- Optional: Plug adapter extensions
- Optional: Pillar protection cover retrofit kit
- Oil not included - can be ordered separately (capacity: 10L)
- Vehicle not included in the delivery
