Description
TÜV Süd Certified

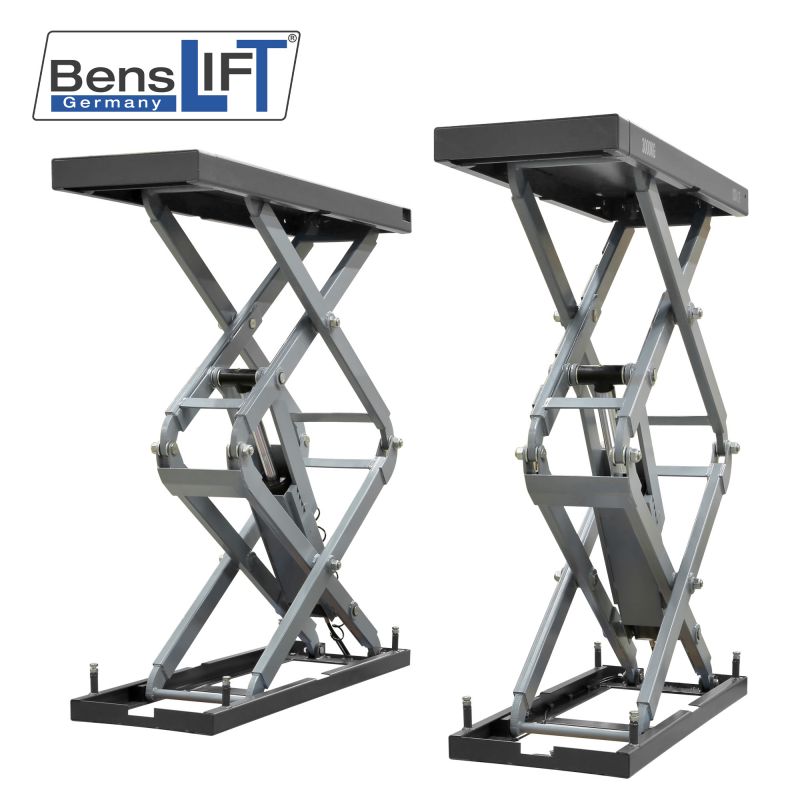

Professional scissor lift for recessed installation
The scissor lift is ideally suited for flush-mounted installation in drive-through areas and is also suitable for ultra-low-profile sports cars. Extendable vehicle supports allow even long vehicles to be lifted with ease.
 |
Special features |
- Top-quality workmanship with CE certificate for UVV approval
- Production after ISO 9001
- CE stop and signal tone when lowering

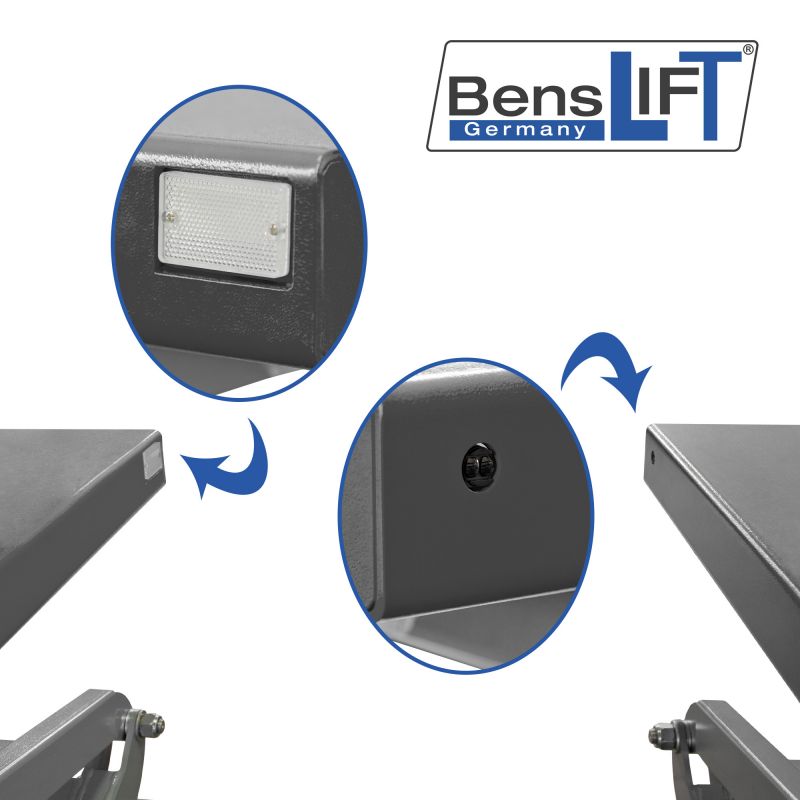

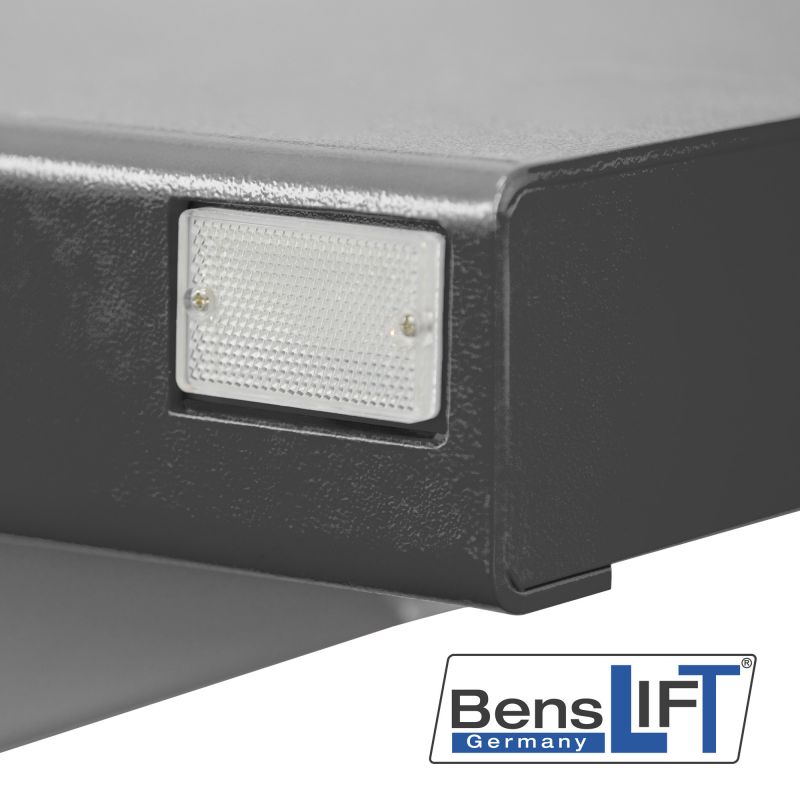

- IR system synchronization monitoring via light barrier

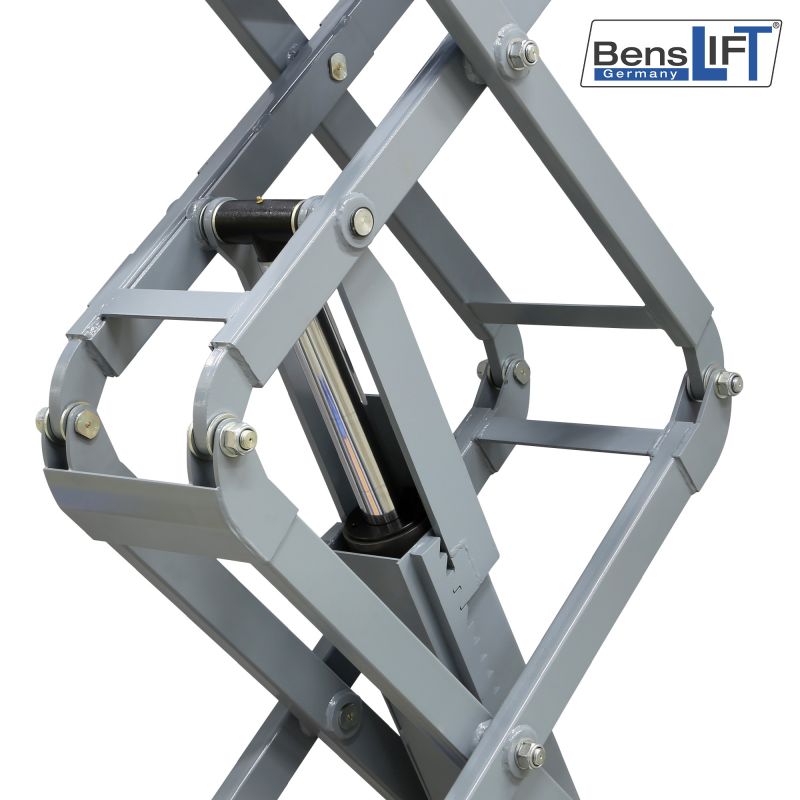

- Hydraulic cylinders for powerful lifting
- High-quality and solid construction
- Acoustic warning device (foot protection)
- Automatic safety locking and unlocking - compressed air required

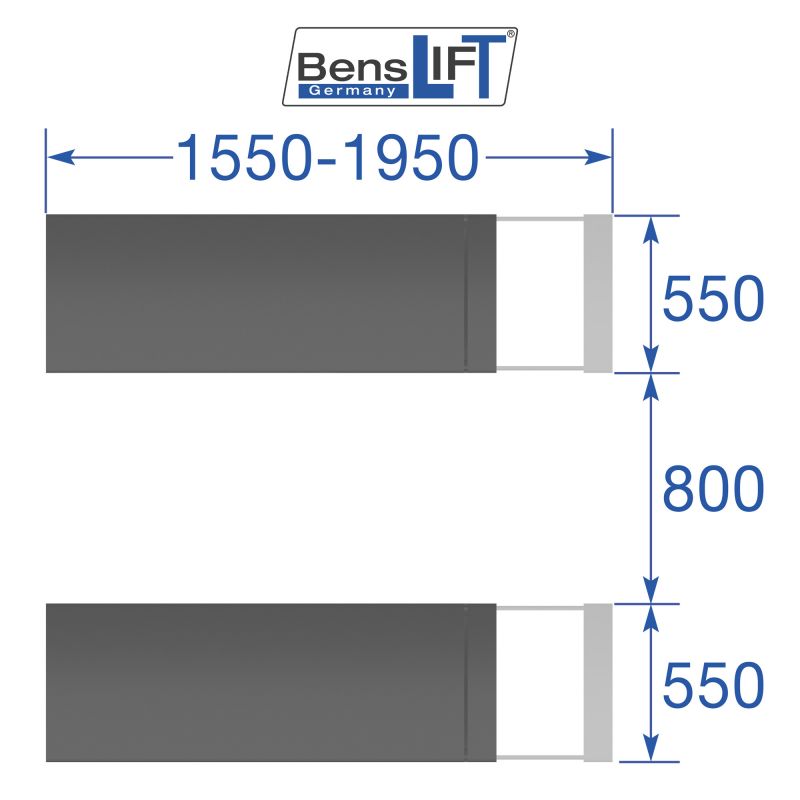

- Extendable vehicle mounts
- Emergency lowering function
- Hose packages 3000 mm
- Compressed air at 4-8 bar is required!
 |
Technical data |
| Load capacity CE | 3000 kg |

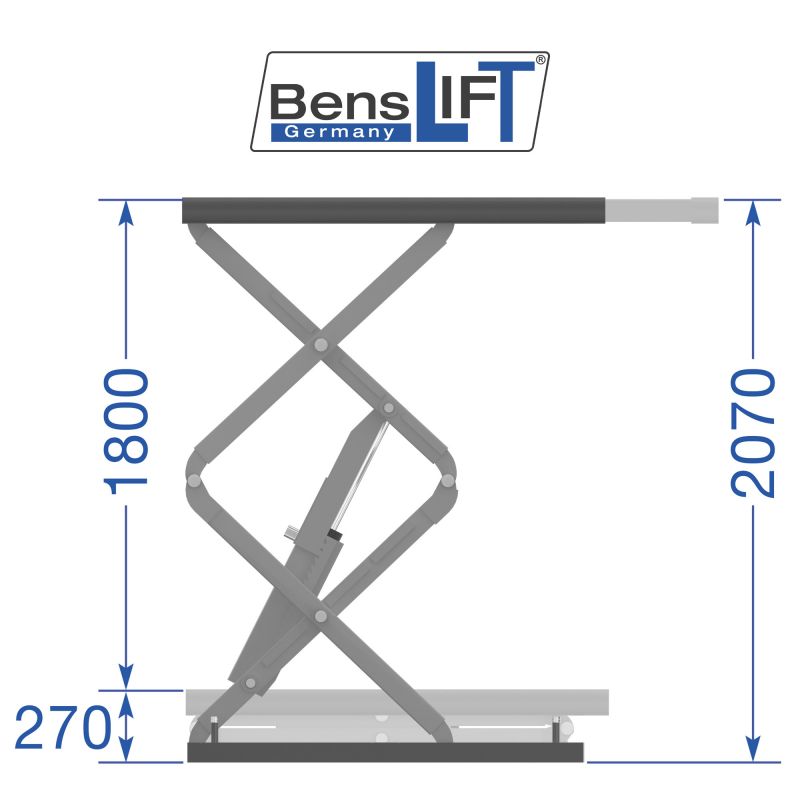

| Maximum lifting height. | 1800 mm + rubber |
| Clearance height | Floor level (0mm) |
| Lifting and lowering time approx. | 45/30 sec. |
| Drive voltage | 400V / 3 phases |
| Drive power | 2.2 kW |
| Security | 16 A |
| Dead weight | 860 kg |
 |
Scope of delivery |

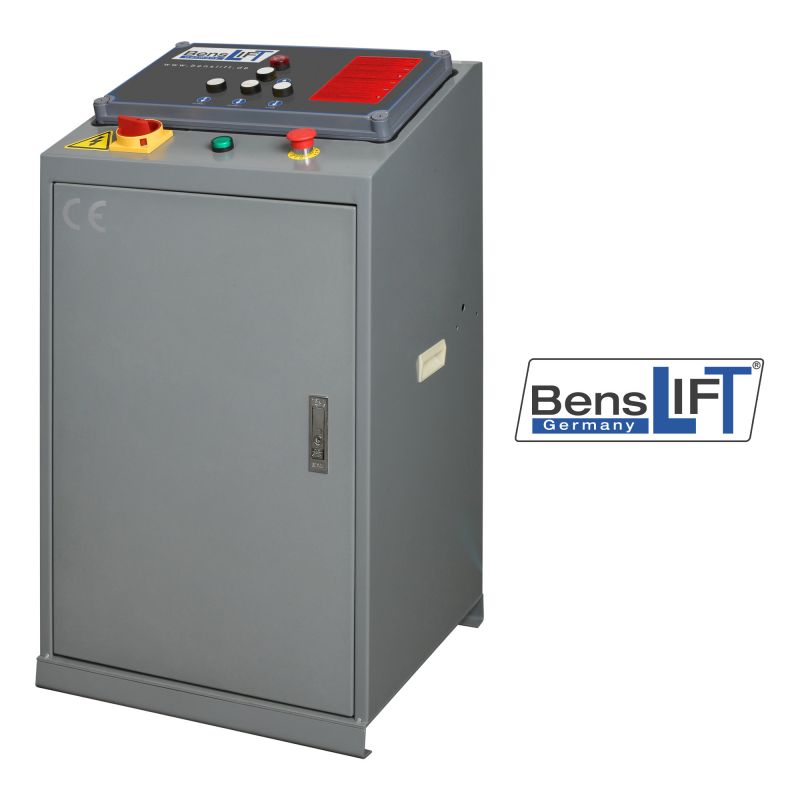

- Lifting platform including control unit
- 8 heavy-duty anchors
- Rubber blocks (40 mm)
- German operating and assembly instructions
- Inspection log and CE certificate for UVV acceptance
- Oil not included - can be ordered separately (capacity: 15L)
- Vehicle not included in the delivery
