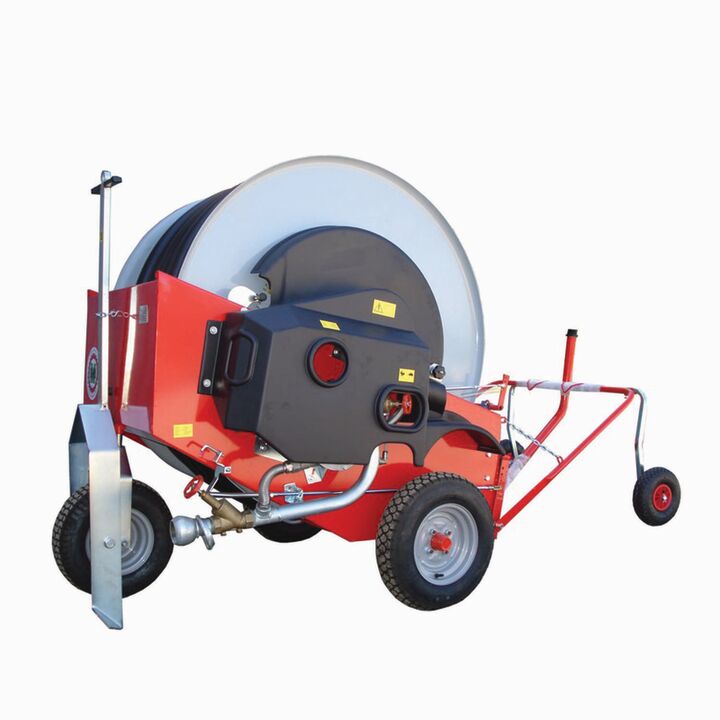

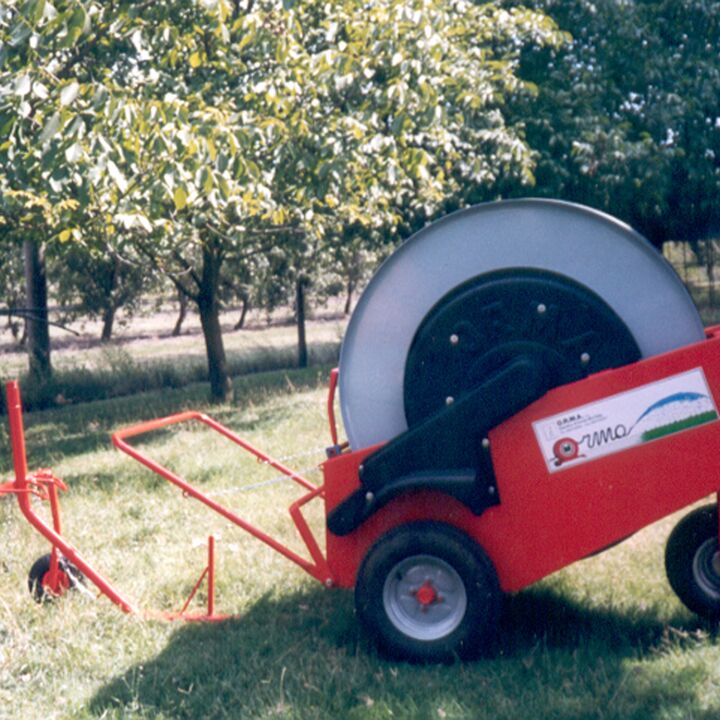

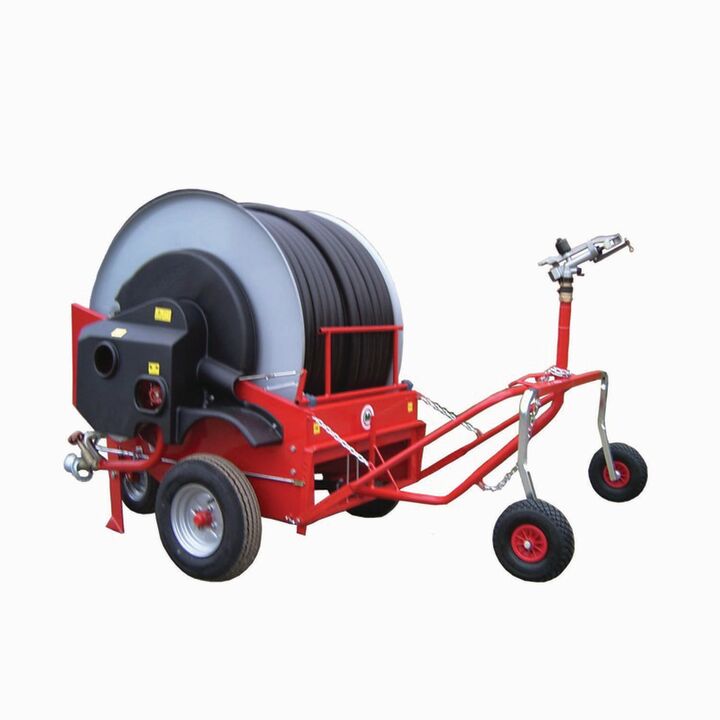

The LEADER 50 irrigation cart is equipped with a PE pipe with automatic hose guide and pneumatic tires. It is particularly suitable for irrigation in horticulture, agriculture, parks and sports facilities, as well as riding arenas and arenas.
The drive is provided by a turbine via the water connection or by a pump.
It can be moved on any surface and can therefore be used flexibly in multiple locations.
A drawbar is included as standard.

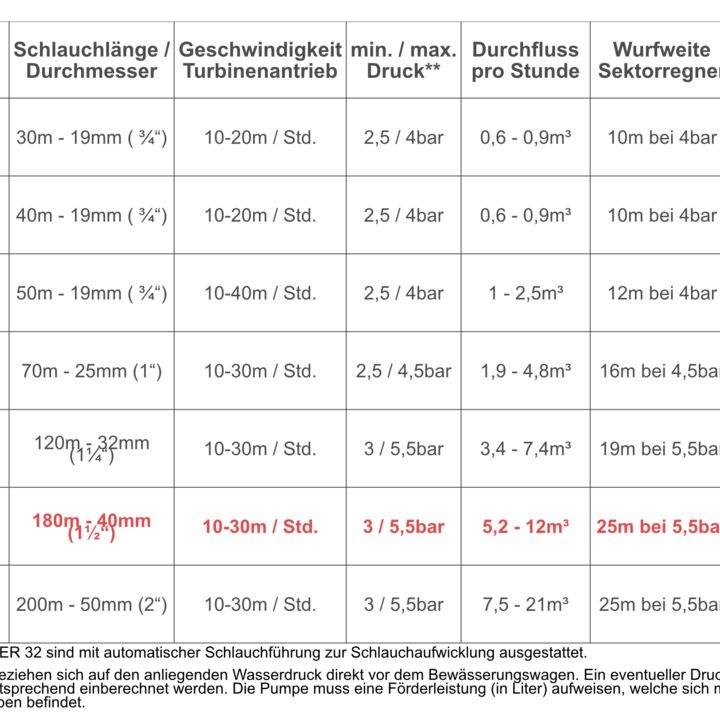

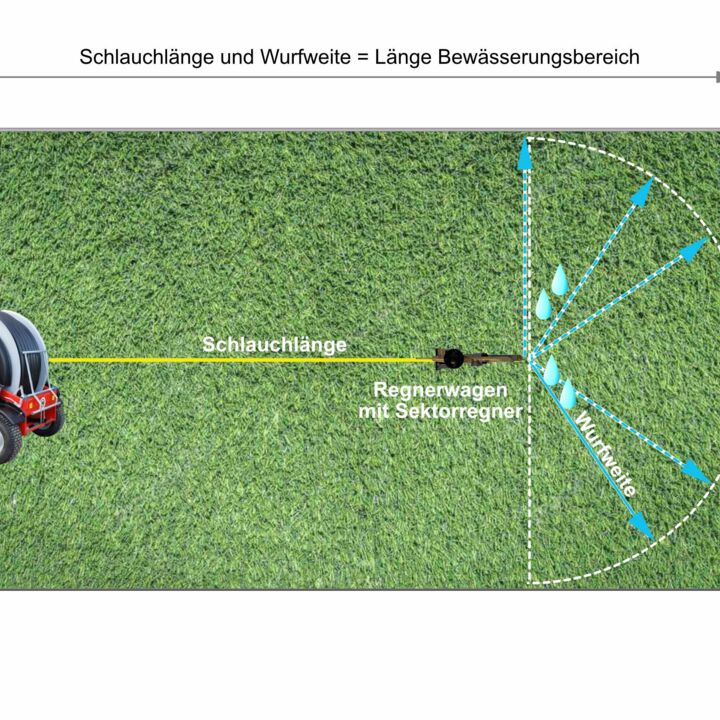

Turbine drive speed: 10-30 m/h, min./max. pressure: 3 / 5.5 bar, flow rate per hour: 5.5 - 12 m³, sector sprinkler throw distance: 25 m / 5.5 bar, sprinkler carriage width: 120-185 cm, passage height: 75 cm
Technical data
-
medium cold water
-
diameter 40mm (1 1/2")
-
Housing painted steel
-
drive water turbine
-
Length/Capacity 180m
-
Pressure 6 bar
