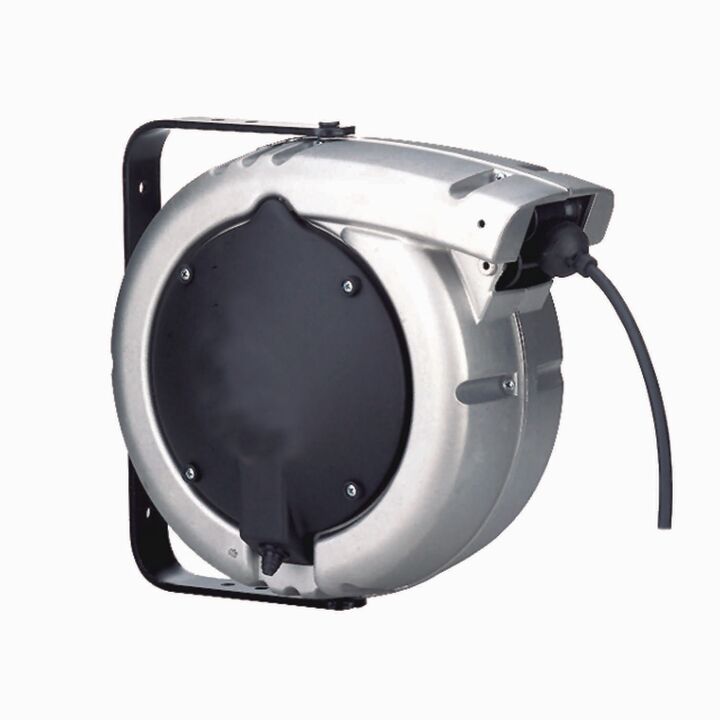

Spring return, cable lock, wall bracket swivels 180°, can be mounted in any position
Specially designed with a slip ring and cable for transmitting digital and video signals. The brushes of the slip ring have a low peripheral grinding speed at the contact point between the brushes and rings, low radial runout, and thus are subject to very little wear. The contact points are coated with a gold alloy, which reduces noise and interference between circuits. The cable is shielded.
Application areas: Robot technology, automation systems, packaging machines, medical equipment
Technical data
-
Housing aluminum
-
drive Spring return
-
Tension 24V
-
Cross-section 0.5mm²
-
Number of conductors 11x
-
slip ring 2A
-
Protection class IP65
-
Length/Capacity 12m
