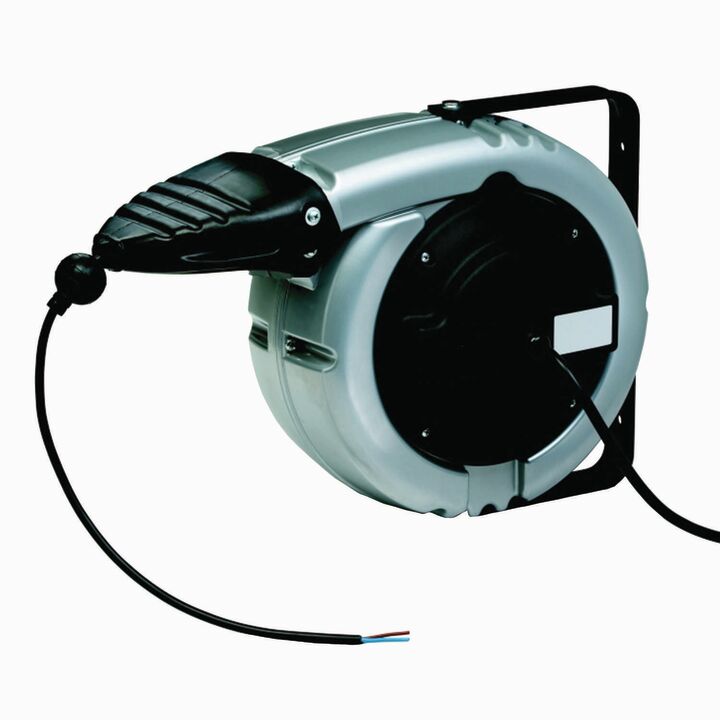

The automatic cable reels with spring return and cable lock are specially designed for professional use. They are available in a wide range of cable types and are suitable for applications in trade, craft, industry, and agriculture.
Features:
• Spring return for smooth and effortless cable rewinding to avoid tripping hazards and increase workplace safety
• The cable lock can be activated at each turn to fix the cable at the desired length (can be switched off)
• Versatile cable variants available to meet different requirements
• Swivel wall brackets for 180° rotation for maximum flexibility in installation and use
• Impact-resistant, UV-resistant housing for a long service life and to protect the device from damage
• Protection class IP 65
• With cable guide opening for safe retraction of the cable in automatic applications and to prevent the ingress of dirt
Application:
• Perfect for workshops and assembly areas where flexible cable organization is necessary
• Ideal for use on construction sites and in craft businesses where mobility and order are required
• Ideal for production halls, machine parks and production lines to ensure smooth and safe cable handling
• Suitable for use in stables and farms where robust
Technical data
-
Housing aluminum
-
drive Spring return
-
Tension 230V
-
Cross-section 2.5mm²
-
Number of conductors 3x
-
slip ring 20A
-
Protection class IP65
-
Length/Capacity 17m
