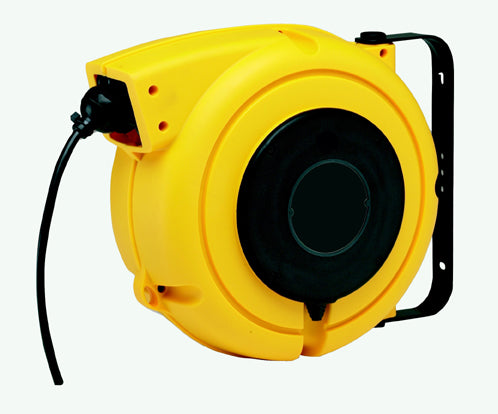

Ebinger cable reel X 4000 DATA

Spring return, cable lock, wall bracket swivels 180°, can be mounted in any position

Specially designed with a slip ring and cable for transmitting digital and video signals. The brushes of the slip ring have a low peripheral grinding speed at the contact point between the brushes and rings, low radial runout, and thus are subject to very little wear. The contact points are coated with a gold alloy, which reduces noise and interference between circuits. The cable is shielded.

Technical data

• Housing plastic
• drive Spring return
• Tension 24V
• Cross-section 2x0.15mm²
• Number of conductors 4x
• slip ring 2A
• Protection class IP42
• Length/Capacity 12m
