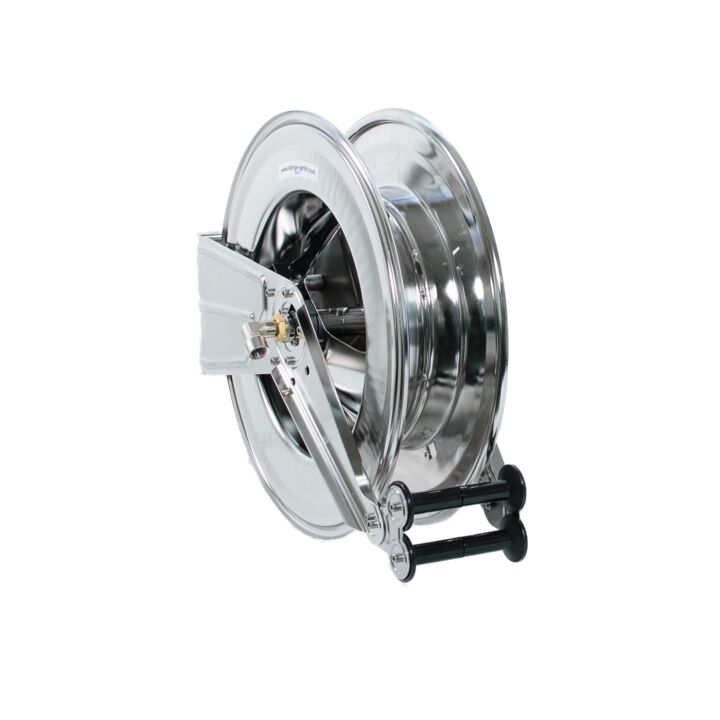

Our spring-return hose reels are specifically designed for professional and industrial use. High-quality components and a wide range of accessories allow them to be adapted to all work areas and applications. With their robust and precise construction, they offer a durable, reliable solution for a wide range of requirements.
Additional features:
Automatic spring retraction with tension spring “Made in Germany”,
Hose lock to fix the hose at every turn,
Wall bracket pivoting with 110° swivel range including drilling template for easy installation,
Hose stopper as end stop with inserts for different hose diameters,
High-quality swivel joint 90° angled (size see diameter),
Swivel joint stainless steel 1.4401, ½“ IG BSP, Viton seal, max. 130°C (note max. temperature of hose),
Roller window adjustable in 3 positions,
Dimensions listed in the data sheet
Technical data
-
medium High pressure, crop protection, drinking water, food, oil
-
diameter 13mm (1/2")
-
Housing stainless steel
-
drive Spring return
-
Length/Capacity without hose
-
Pressure 100 bar
