Our spring-return hose reels are specifically designed for professional and industrial use. High-quality components and a wide range of accessories allow them to be adapted to all work areas and applications. With their robust and precise construction, they offer a durable, reliable solution for a wide range of requirements.
Further features:
Automatic spring retraction with tension spring “Made in Germany”,
2 media guides with connection right + left,
Hose lock to fix the hose at every turn,
Mounting bracket including drilling template for easy installation,
Hose stopper as end stop with inserts for different hose diameters,
High-quality swivel joint 90° angled (size see diameter),
Swivel joint made of galvanized steel, 2 connections 3/8"IG BSP, Teflon seal, max. 130°C (note max. temperature of hose),
Roller window adjustable in 3 positions

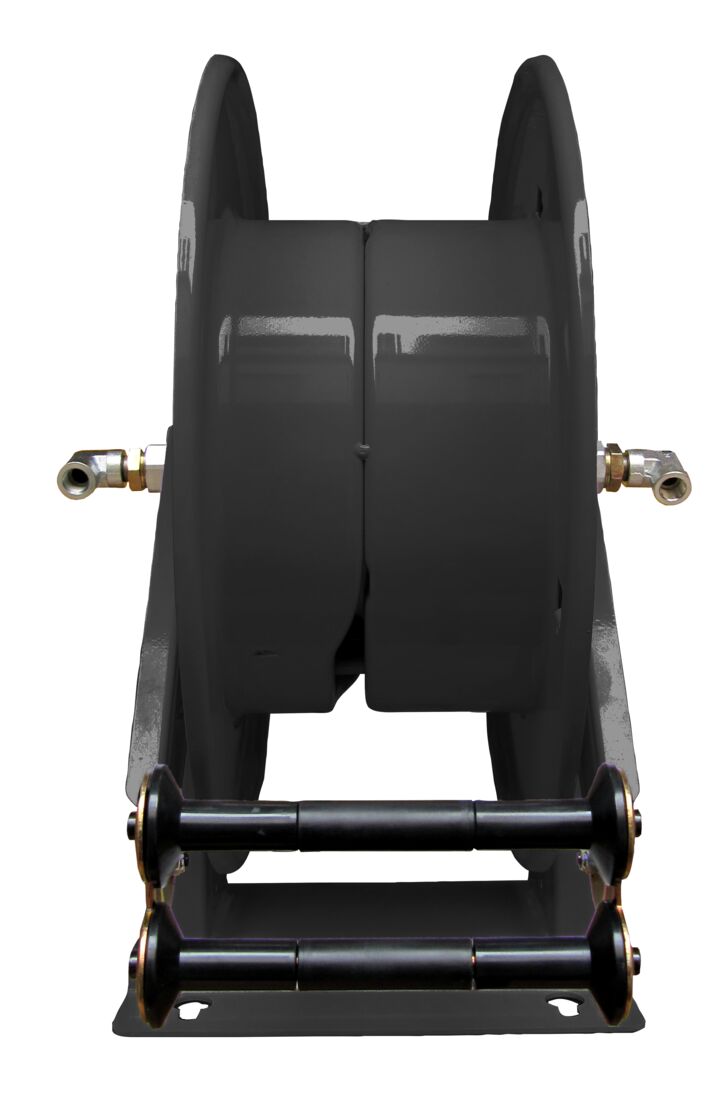

Illustration: New variant in RAL 7016 (anthracite) - as part of the color change
Depending on stock levels, the old version in RAL 7035 (light grey) will still be delivered.
Technical data
-
medium Duo hose
-
diameter 15mm (5/8")
-
Housing painted steel
-
drive Spring return
-
Length/Capacity without hose
-
Pressure 700 bar
