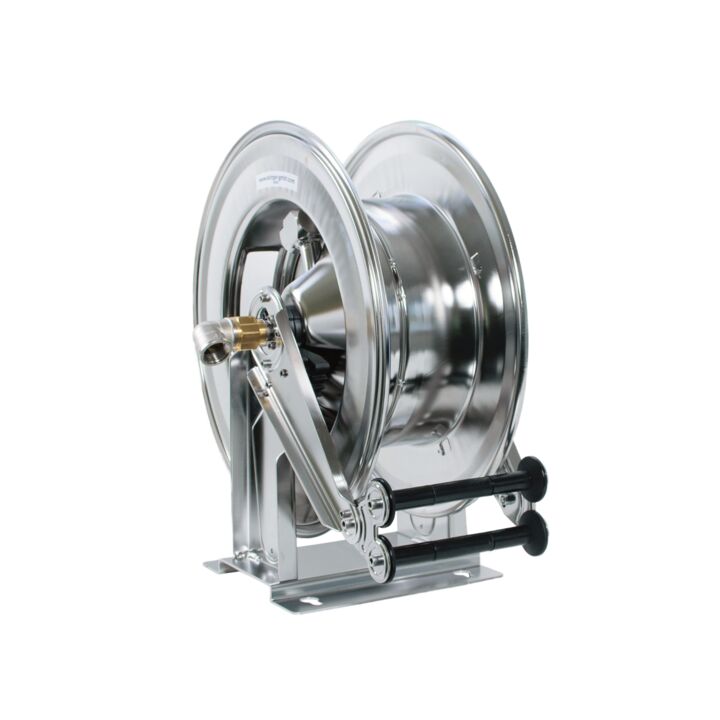

Our spring-return hose reels are specifically designed for professional and industrial use. High-quality components and a wide range of accessories allow them to be adapted to all work areas and applications. With their robust and precise construction, they offer a durable, reliable solution for a wide range of requirements.
Further features:
Automatic spring retraction with tension spring “Made in Germany”,
Hose lock to fix the hose at every turn,
Mounting bracket including drilling template for easy installation,
Hose stopper as end stop with inserts for different hose diameters,
High-quality swivel joint 90° angled (size see diameter),
Swivel joint galvanized steel, 3/8"IG BSP, seal polyurethane, max. 80°C (note max. temperature hose),
Roller window adjustable in 3 positions,
Dimensions listed in the data sheet
Technical data
-
medium Fat
-
diameter 10mm (3/8")
-
Housing stainless steel
-
drive Spring return
-
Length/Capacity without hose
-
Pressure 400 bar
