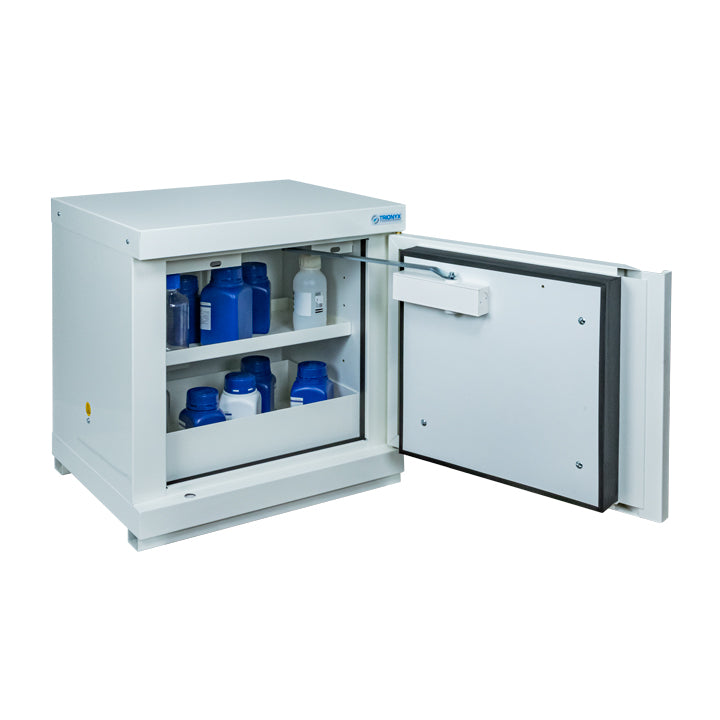

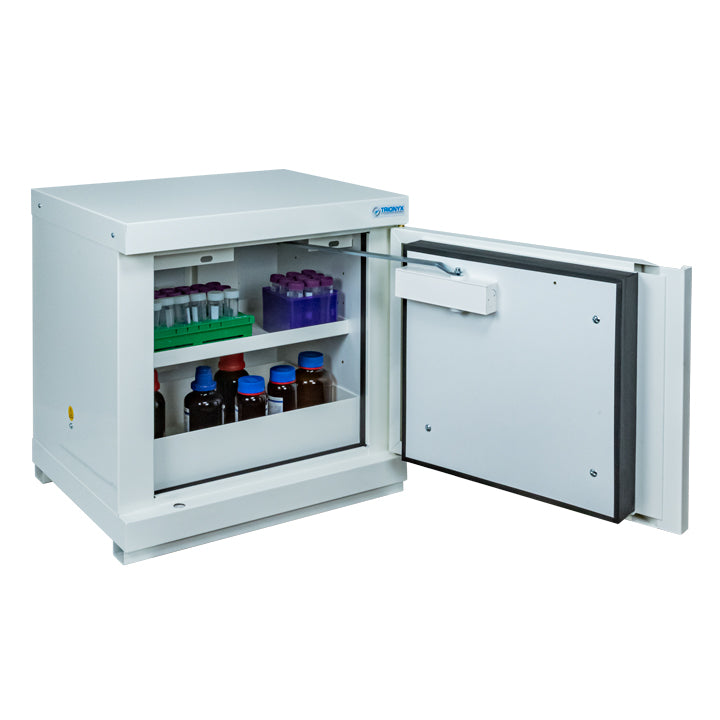

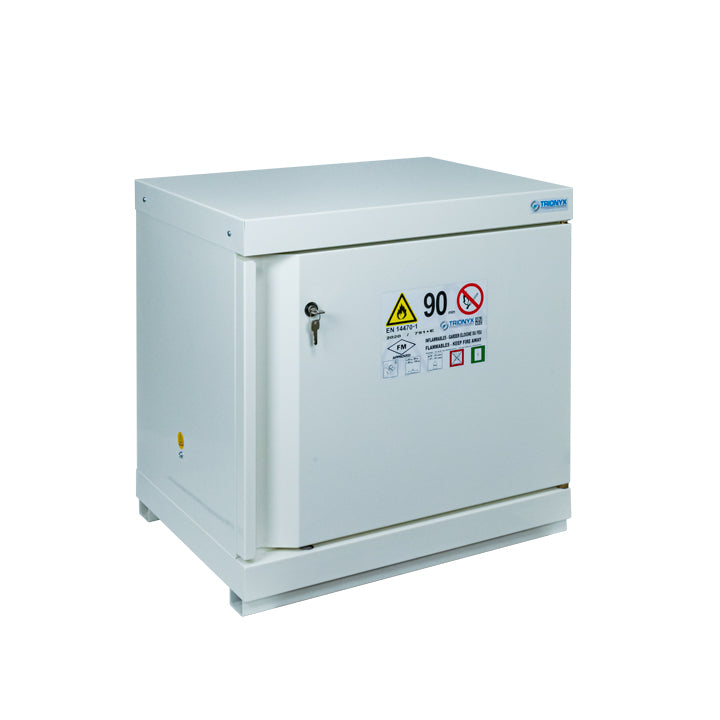

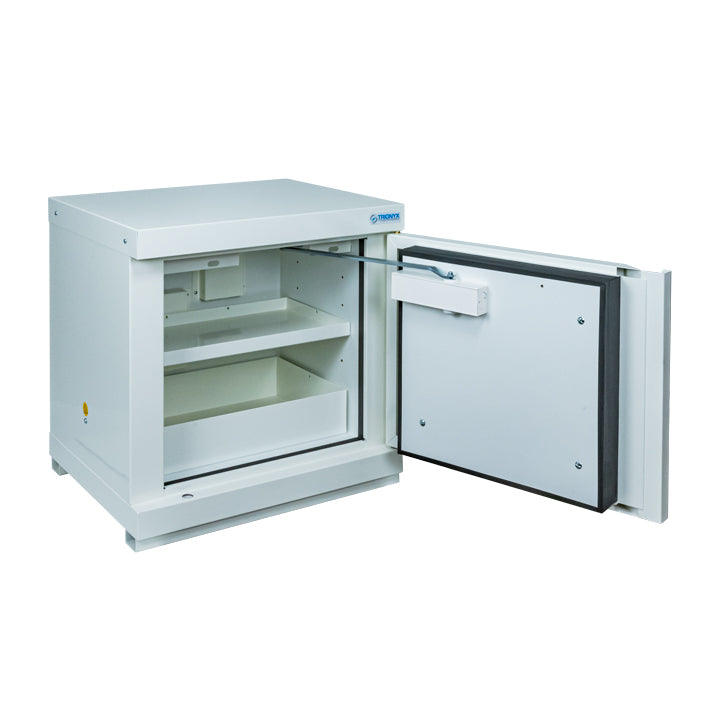

SERIES 7.90+ - Fireproof safety cabinet, 90 minutes, under-counter, 1 door, equipped
ADVANTAGES
• EN 14470-1 and FM 6050 compliant
• Storage of flammable materials
• Tested for 105 minutes – from outside to inside according to EN 14470-1
• Fire resistance 90 minutes – Tested and approved according to EN 14470-1 and EN 13631
• Thermo-expanding door seals

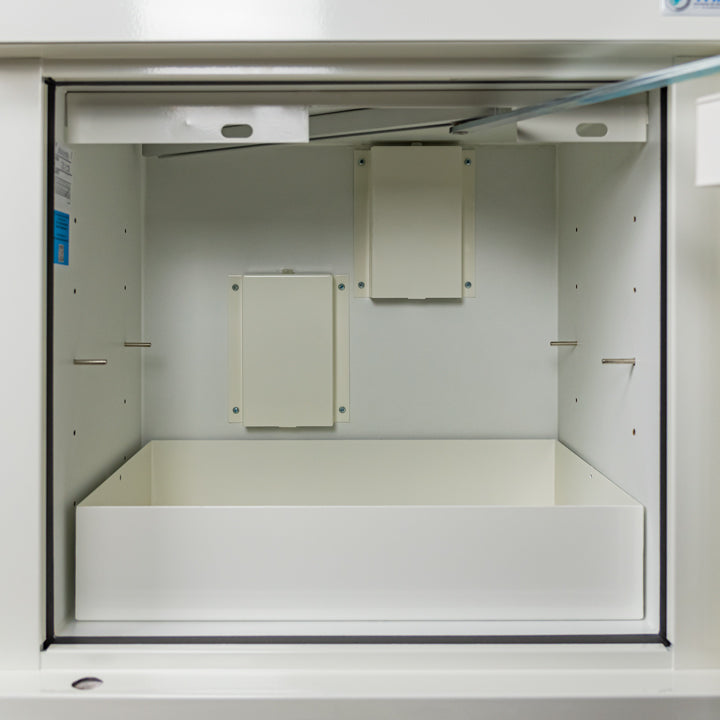

• Height-adjustable shelves
• Locking system

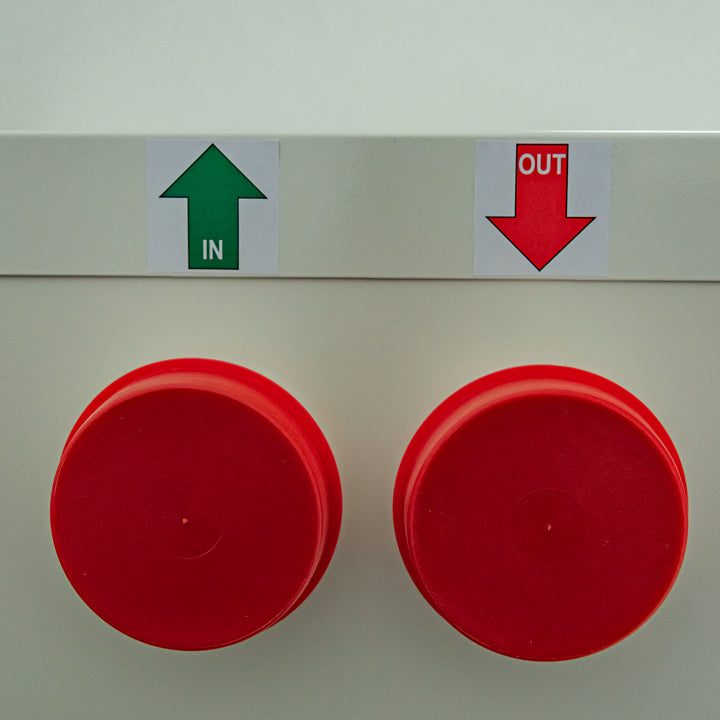

• Openings for connection to the ventilation system
• Standardized labeling included in delivery
• Grounding attachment
• Tested and approved according to FM 6050
• Tested and approved according to ISO 834 combustion heating curve by a European laboratory
TECHNICAL DATA
Reference 791+E
Compliance with EN 14470-1, EN 1363-1
Construction materials of the safety cabinets 12/10
Number of doors: 1
Diameter of openings (mm) 100
Number of compartments / drawers: 1
Shelves 1
Drip tray 1
Retention capacity (L) 20
External dimensions HxWxD (mm) 630 x 635 x 570
Internal dimensions HxWxD (mm) 420 x 490 x 285
Shipping dimensions HxWxD (mm) 900 x 1200 x 800
Load capacity 30
Storage capacity (L) 30
Weight (kg) 127.00
Code number 94032080
