Ecosafe 2-door high-security cabinet type 90 - For maritime use

RANGE 7.90+ - Fireproof safety cabinet, 90 minutes high, 2 yellow doors, boat equipped

ADVANTAGES

• Compliant with EN 14470-1 and FM 6050

• Storage of flammable materials

• Tested for 105 minutes – from outside to inside according to standard EN 14470-1

• Fire resistance 90 minutes – Tested and approved according to standards EN 14470-1 and EN 1363-1

• Height-adjustable shelves

• Locking system

• Thermo-expanding door seals

• Openings for connection to the ventilation system

• Standardized labeling included in delivery

• Grounding attachment

• Tested and approved by an independent European laboratory

• Wall mounting to prevent sea movements

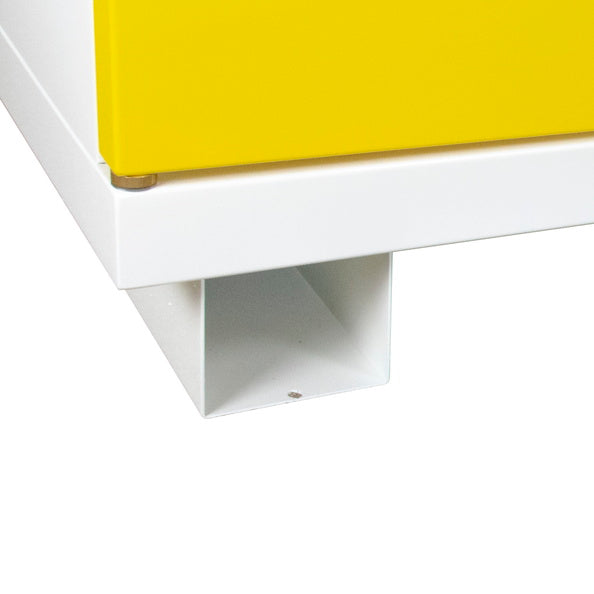

• 3 floor fixings by screwing

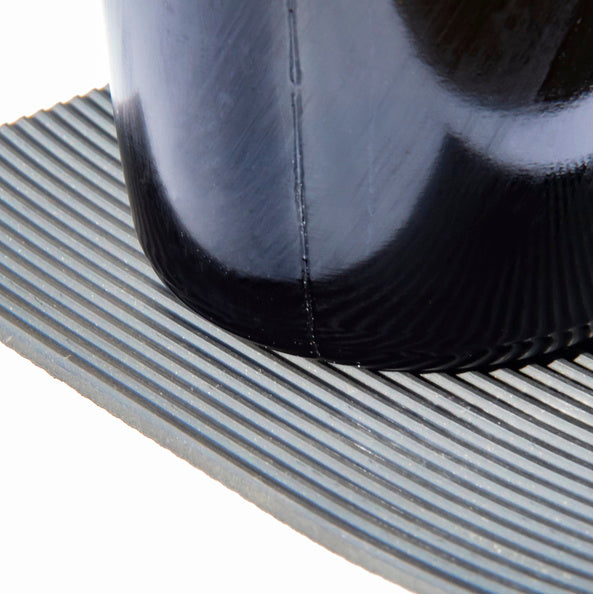

• Anti-slip mat that absorbs leaking water and prevents the containers from slipping during sea movements.

TECHNICAL DATA

Reference 795+PJBE
Compliance with EN 14470-1, EN 1363-1
Number of doors: 2
Diameter of openings (mm) 100
Connection sleeve 1
Number of compartments / drawers: 1
Shelves 3
PVC shelves (option)
Drip tray 1
PVC drip tray (optional)
Grating option
Retention capacity (L) 77
External dimensions HxWxD (mm) 1950 x 1137 x 620
Internal dimensions HxWxD (mm) 1620 x 1000 x 410
Shipping dimensions HxWxD (mm) 2150 x 1200 x 800
Load capacity 50
Storage capacity (L) 250
Weight (kg) 453.00
Code number 94032080
