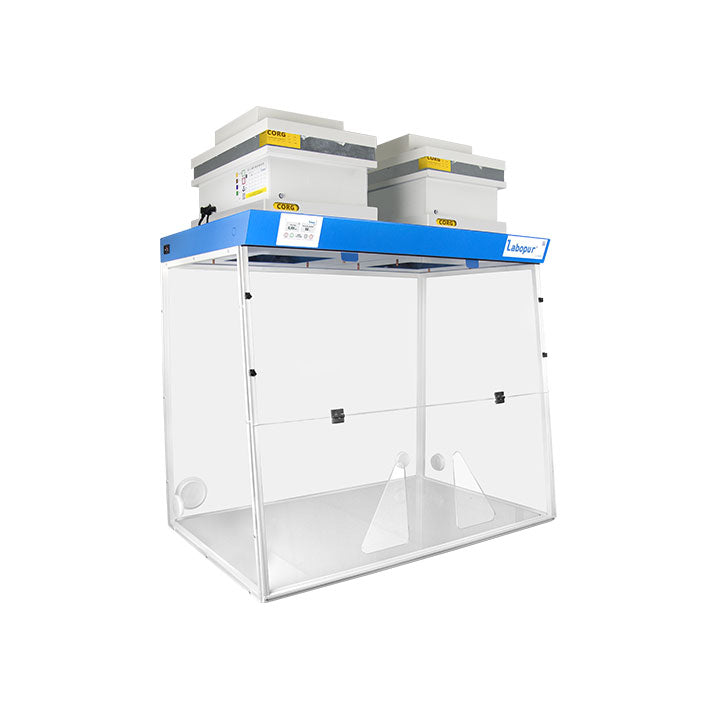

SERIES H - LABOPUR® - Exhaustless extractor H12 + 2 manual access openings, 2 filter modules, Can be equipped with 2 activated carbon filters and 1 HEPA filter (+SH)
ADVANTAGES
• CE certified
• NF X 15-211 compliant
• Storage of flammable, corrosive and toxic substances
• Easy replacement of the activated carbon filter
• Low noise level
• Front inspection window for immediate filter visibility
• NF X 15-211 compliant
• Delivered ready for operation
• Light control to monitor the proper functioning of the fan
• Cable and fluid feedthrough
• Glass side walls
• Ergonomic handles or trapezoidal opening
TECHNICAL DATA
Reference H122D+2CH
NF X 15-211 Class 1 conformity
External dimensions HxWxD (mm) 1160 x 1200 x 750
Internal dimensions HxWxD (mm) 935 x 1145 x 700
Inflow velocity (m/s) 0.4 - 0.6
Electrical voltage (volts) 220-240
Flow rate (m³/h) 170
Openings for cable penetration 4
Anemometer included
Guide to selected products included
Timer included
Sampling included
Transparent back panel included
Drip tray option
Melamine work plan option
Power rating (W) 63
Fan noise level 60.00
Weight (kg) 44.00
Code number 84146000
