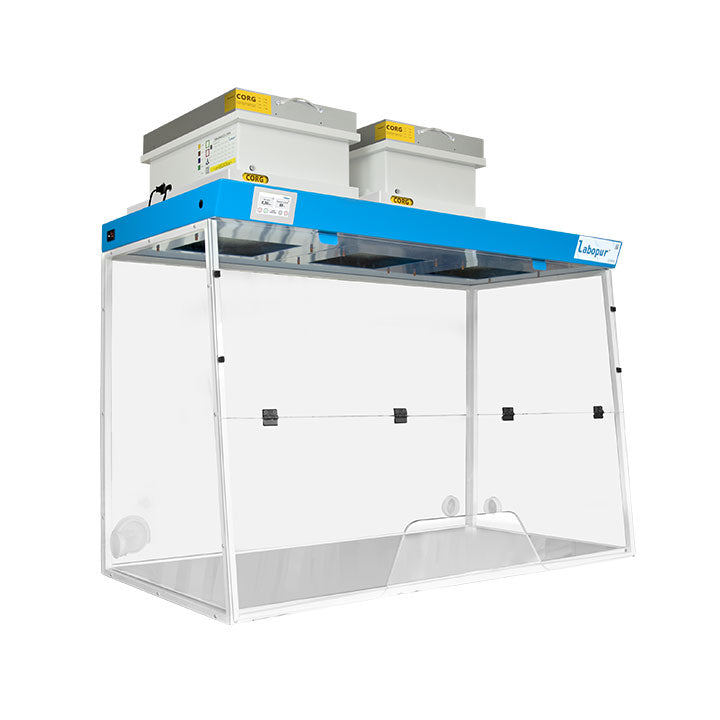

SERIES H - LABOPUR® - Exhaust hood H15 + Trapezoidal working opening, 2 filter modules, Can be equipped with 2 activated carbon filters
ADVANTAGES
• CE certified
• NF X 15-211 compliant
• Storage of flammable, corrosive and toxic substances
• Easy replacement of the activated carbon filter
• Low noise level
• Front inspection window for immediate filter visibility
• NF X 15-211 compliant
• Delivered ready for operation
• Light control to monitor the proper functioning of the fan
• Openings for cables and liquid
• Glass side walls
TECHNICAL DATA
Reference H152Z+2C
NF X 15-211 Class 1 conformity
External dimensions HxWxD (mm) 1160 x 1500 x 750
Internal dimensions HxWxD (mm) 935 x 1445 x 700
Inflow velocity (m/s) 0.4 - 0.6
Electrical voltage (volts) 220-240
Flow rate (m³/h) 170
Openings for cable penetration 4
Drip tray option
Melamine work plan option
Power rating (W) 63
Fan noise level 60.00
Weight (kg) 54.00
Code number 84146000
