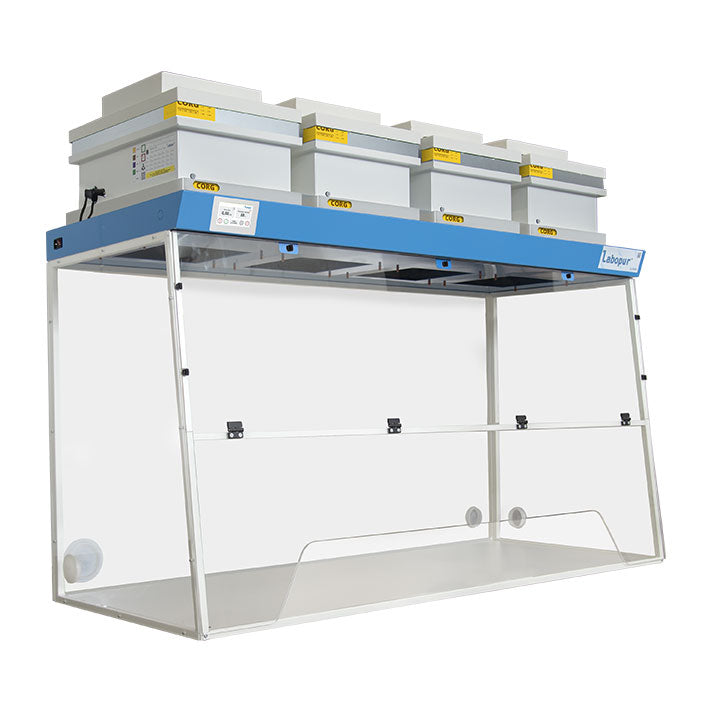

SERIES H - LABOPUR® - H18 exhaust hood + wide trapezoidal working opening, 4 filter modules, can be equipped with 2 activated carbon filters and 1 HEPA filter (+SH)
ADVANTAGES
• CE certified
• NF X 15-211 compliant
• Storage of flammable, corrosive and toxic substances
• Easy replacement of the activated carbon filter
• Low noise level
• Front-mounted inspection window for immediate filter check
• NF X 15-211 compliant
• Delivered ready for operation
• Cable and fluid penetrations
• Glass side walls • Ergonomic handles or trapezoidal opening
• Light control to monitor the proper functioning of the fan
TECHNICAL DATA
Reference H184G+2CH
Compliance NF X 15-211 Class 1
External dimensions HxWxD (mm) 1240 x 1800 x 750
Internal dimensions HxWxD (mm) 935 x 1745 x 700
Inflow velocity (m/s) 0.4 - 0.6
Electrical voltage (volts) 220-240
Flow rate (m³/h) 170
Openings for cable penetration 4
Anemometer Yes
Guide to selected products Yes
Time counter Yes
Sampling Yes
Transparent back panel: Yes
drip tray option
Melamine work plan option
Power rating (W) 63
Fan noise level 60.00
Weight (kg) 70.00
Code number 84146000
