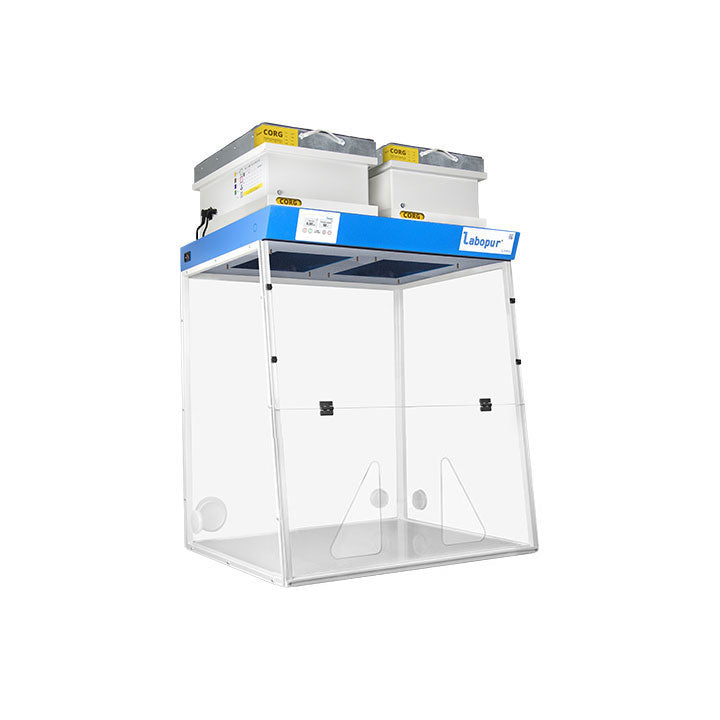

SERIES H - LABOPUR® - Exhaust hood H09 + 2 working openings for hands, 2 filter modules, to be equipped with 2 activated carbon filters
ADVANTAGES
• CE certified
• NF X 15-211 compliant
• Storage of flammable, corrosive and toxic substances
• Easy replacement of the activated carbon filter
• Low noise level
• Front-facing inspection window for immediate filter view
• NF X 15-211 compliant
• Delivered ready for operation
• Light control to monitor the proper functioning of the fan
• Glass side walls
• Ergonomic handles or trapezoidal opening
TECHNICAL DATA
Reference H092D+2C
NF X 15-211 Class 1 conformity
External dimensions HxWxD (mm) 1160 x 900 x 750
Internal dimensions HxWxD (mm) 935 x 845 x 700
Water outflow 0.4 - 0.6
Inflow velocity (m/s) 220-240
Electrical voltage (volts) 170
Flow rate (m³/h) 4
Openings for cable routing included
Anemometer included
Guide to selected products included
Timer included
Sampling included
Transparent back panel included
drip tray option
Melamine work plan option
Power rating (W) 63
Fan noise level 60.00
Weight (kg) 34.00
Code number 84146000
