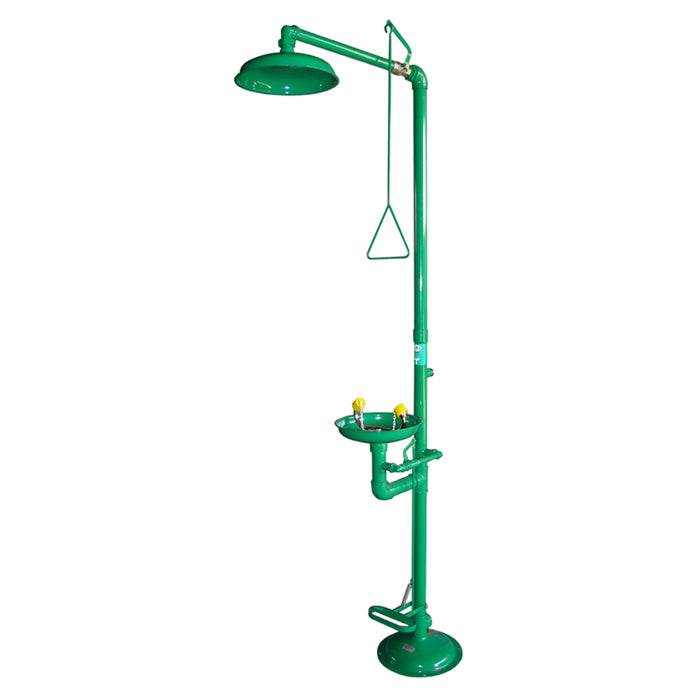

RANGE DL - Security station mounted on a pedestal - Dual hand and foot operation, ABS bowl
ADVANTAGES
• ISO 3864 compliant
• First aid for chemical splashes
• Allows rinsing of the body in case of chemical splashes
• Delivered with first aid labeling
• Dust caps for dusty environments
• Corresponds to Article R. 4224-14 of the Labour Code
TECHNICAL DATA
Reference DLP63
Compliant with EN 15154-1, EN 15154-2, NF X 15-221
External dimensions HxWxD (mm) 2200 x 640
Shipping dimensions HxWxD (mm) 350 x 250 x 860
Use of interior furnishings
Activation manual operation and foot switch
Mounting of freestanding shower
Fountain bowl / basin, green ABS RAL 6029
Shower head green ABS RAL 6029
Galvanized steel piping + green epoxy paint RAL 6029
Water inflow F1''
Water drain F1 1/4''
Eyewash flow rate 11
Emergency safety shower flow rate 75
Weight (kg) 23.00
Code number 73242921
