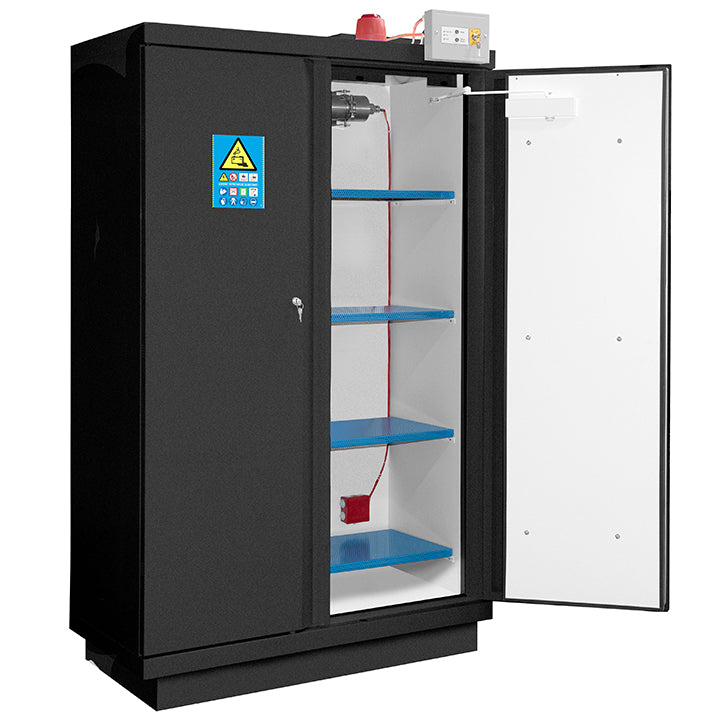

RANGE 7.90+LI - Fireproof safety cabinet, 90 minutes high, 2 doors, pre-wired for lithium-ion batteries, BLACK

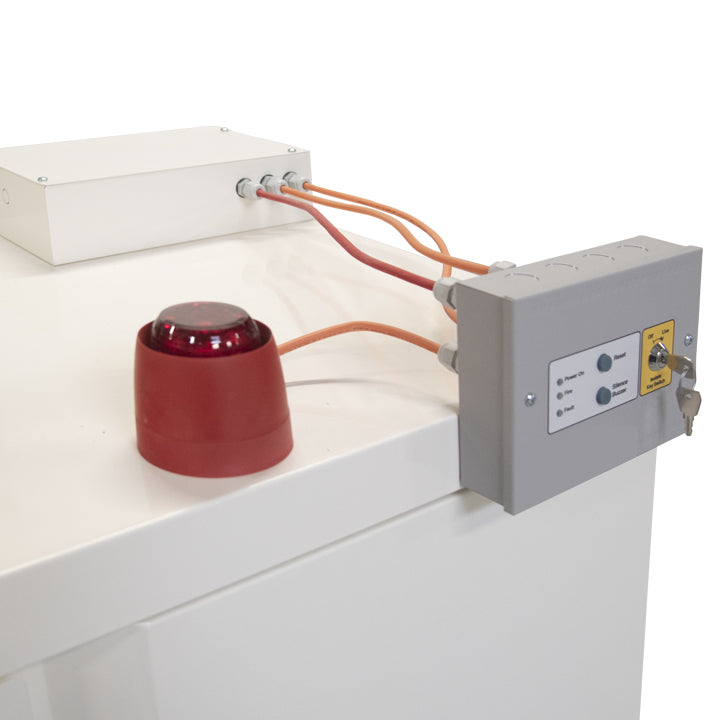

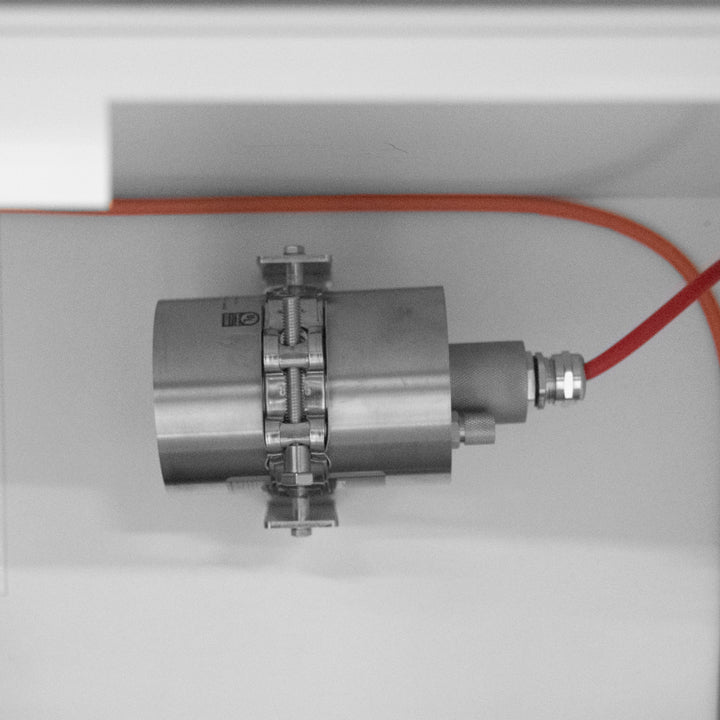

2-door, 90-minute fire cabinet for lithium-ion batteries, pre-equipped with 4 E35LI shelves + 1 x VIG290 (visual and audible alarm, control box, automatic smoke detector, EX200LI fire extinguisher and cable duct on top [Ref. PINTOLI])
ADVANTAGES
• Storage of flammable materials
• Storage of lithium-ion batteries
• Fire protection construction from inside to outside EI180
• Tested for 105 minutes – from outside to inside according to standard EN 14470-1
• French manufacturing – CSR
• FM compliant
• Fire resistance duration 90 minutes – Tested and approved according to standards EN 14470-1 and EN 1363-1
• Locking system • Thermo-expanding door seals
• Holes for connection to
TECHNICAL DATA
Reference 795+NLIX4
Door color RAL 9005 black
Number of doors: 2
Diameter of openings (mm) 100
Connection sleeve 1
Number of compartments / drawers: 1
Shelves 4
External dimensions HxWxD (mm) 1950 x 1137 x 620
Internal dimensions HxWxD (mm) 1620 x 1000 x 410
Shipping dimensions HxWxD (mm) 2150 x 1200 x 800
Load capacity 100
Weight (kg) 488.00
Code number 94032080
