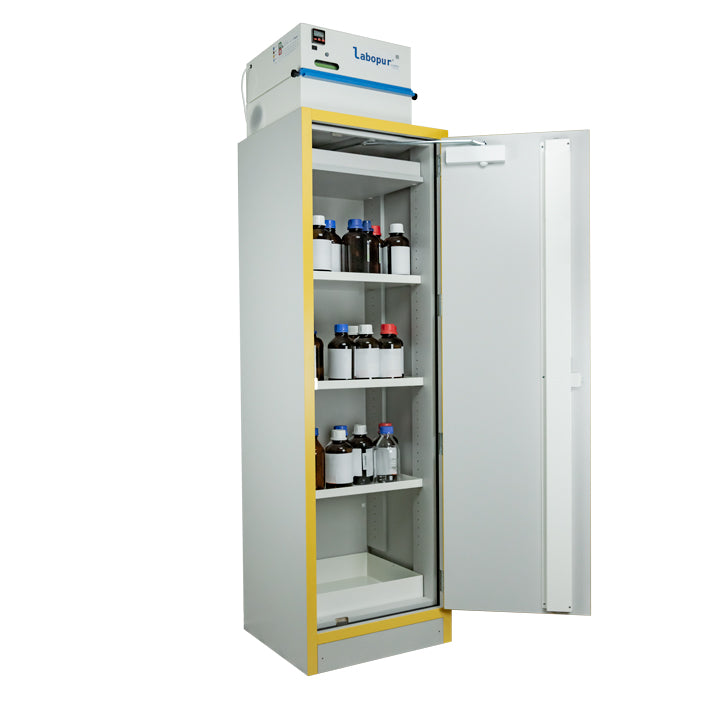

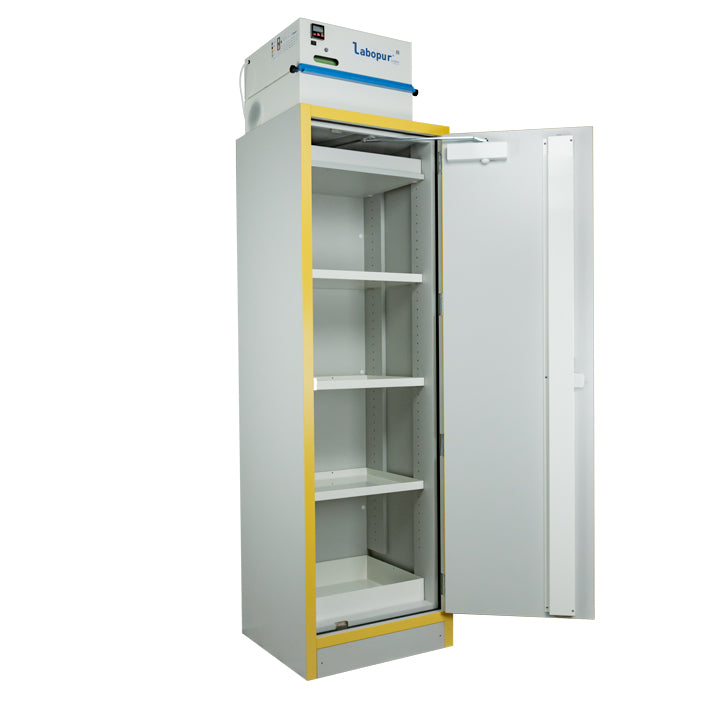

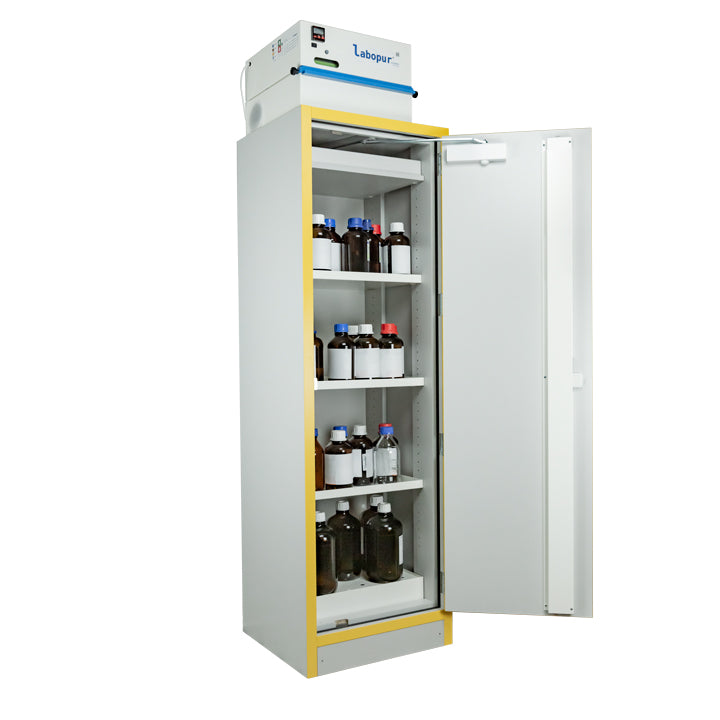

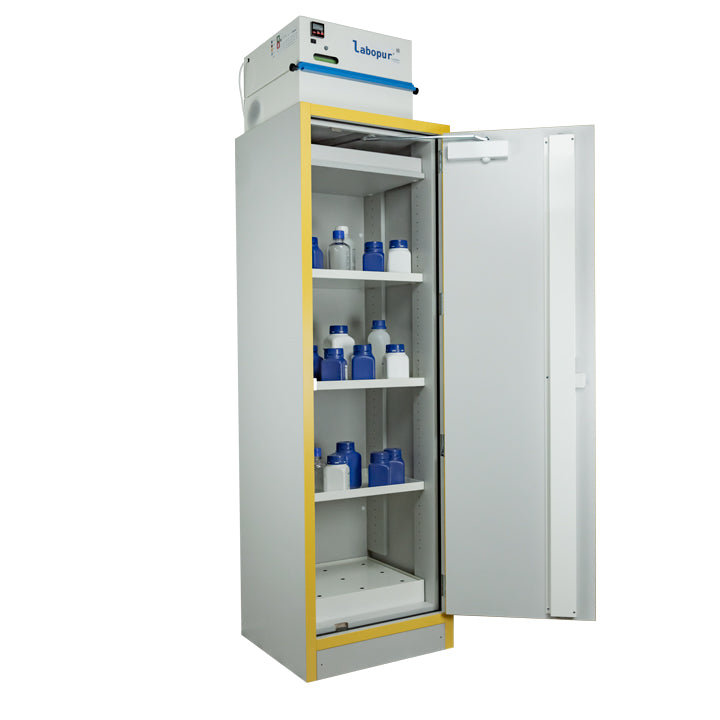

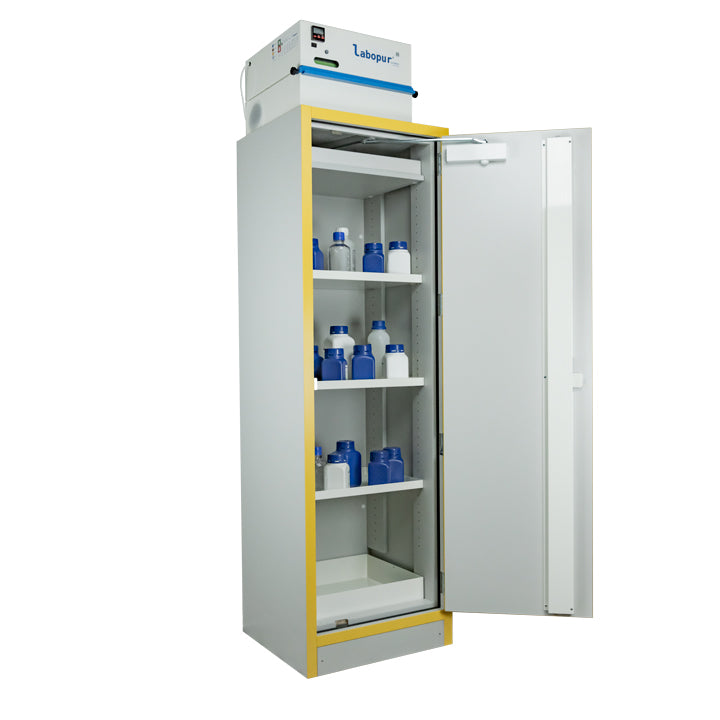

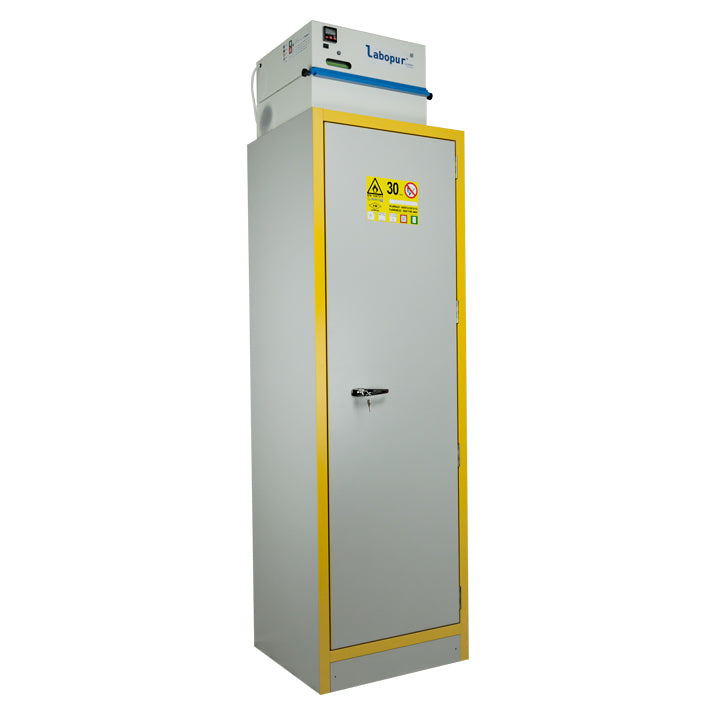

RANGE 3030X - Secure 30-minute cabinet with filter and ventilation function
ADVANTAGES
• 30 minutes fire-resistant and made in France
• Compliant with EN 14470-1 and FM 6050
• Storage of flammable materials
• Tested and approved according to FM 6050
• Standardized labeling included in delivery
• Available in 2 versions: with glass doors or solid doors
• Suitable for transport with pallet trucks
• Fan compliant with CE standard
• Activated carbon filter, adsorption capacity and filter system certified according to NF X 15-211
• No changes to the building structure are required
• Simple and aesthetically pleasing installation
• Light control allows monitoring of the proper functioning of the fan.
• Front-facing inspection window allows immediate view of the filter
• Activated carbon filter tested according to standard NF X 15-211
• Easy replacement of the activated carbon filter
TECHNICAL DATA
Reference AF34
Compliant with EN 14470-1, FM 6050
Construction material of the safety cabinets: melamine
Door color light grey RAL 7035
Number of doors: 2
Type of doors: hinged doors
hinges on the right
Doors are self-closing.
Diameter of openings (mm) 100
Number of compartments / drawers: 1
Shelves 3
Retention capacity (L) 20
External dimensions HxWxD (mm) 2210 x 605 x 550
Internal dimensions HxWxD (mm) 1581 x 491 x 419
Shipping dimensions HxWxD (mm) 2410 x 1200 x 800
Electrical voltage (volts) 220-240
Flow rate (m³/h) 86
Time counter Yes
Sampling Yes
Load capacity 30
Storage capacity (L) 130
Power rating (W) 20
Fan noise level 43.00
Weight (kg) 132.00
Code number 94036000
