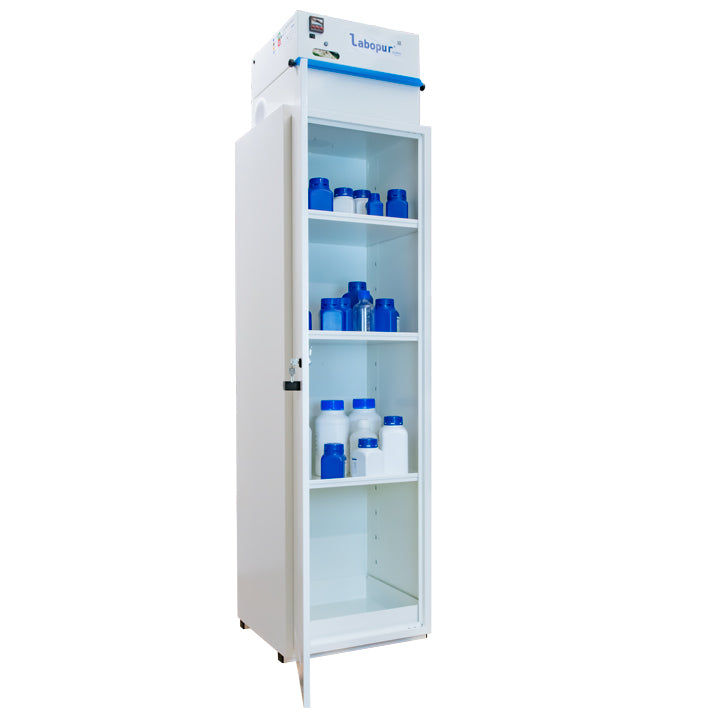

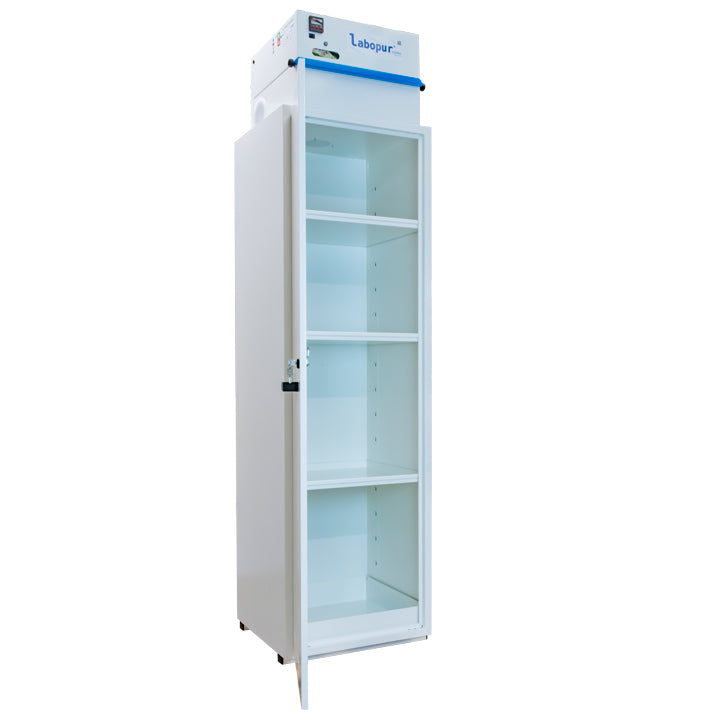

RANGE 14.X - Filter and ventilation-proof cabinet with 1 steel door
ADVANTAGES
• CE certified
• NF X 15-211 compliant
• Storage of flammable, corrosive and toxic substances
• Light control to monitor the proper functioning of the fan
• Front inspection window for immediate filter view
• Adsorption capacity and filter system of the activated carbon filters certified according to NF X 15-211
• Complies with Articles R. 5132-66 and R. 5132-68 of the Health Law
• Compliant with INRS recommendations
• Available in 2 versions: glass doors or solid doors
• Activated carbon filter tested according to standard NF X 15-211
• Easy replacement of the activated carbon filter
• Simple and aesthetically pleasing installation
• Standardized labeling included in delivery
• No construction work required
• Fan compliant with CE specifications
TECHNICAL DATA
Reference AFP3X
CE conformity
Construction material of the safety cabinets: steel 10/10
Door color white RAL 9010
Number of doors: 1
Type of doors: hinged doors
hinges on the right
Doors are manually locked.
Number of compartments / drawers: 1
Shelves 3
Drip tray 1
Retention capacity (L) 41
External dimensions HxWxD (mm) 2135 x 560 x 545
Internal dimensions HxWxD (mm) 1795 x 555 x 480
Shipping dimensions HxWxD (mm) 2340 x 1200 x 800
Load capacity 50
Storage capacity (L) 150
Power rating (W) 20
Fan noise level 43.00
Weight (kg) 75.00
Code number 94032080
