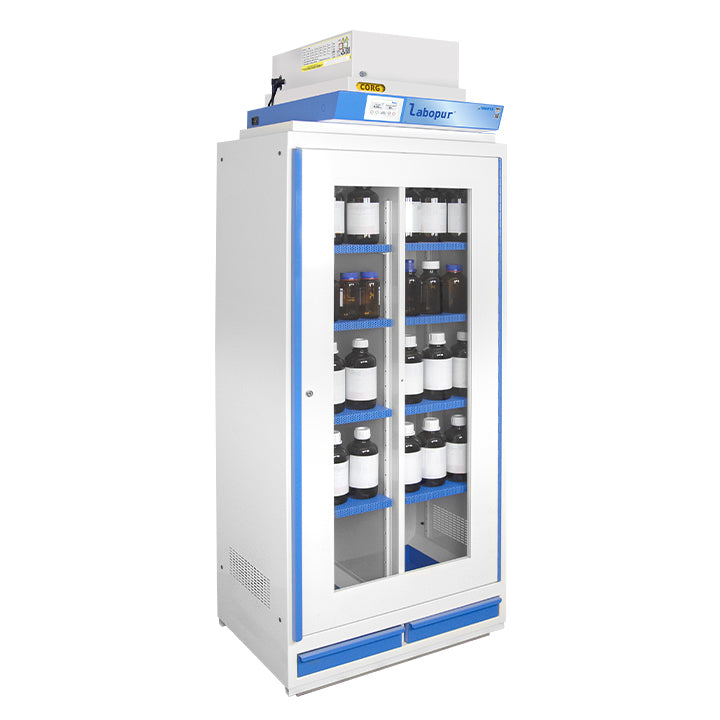

RANGE 12+ - Steel filter ventilation cabinet - one door - two compartments
ADVANTAGES
• CE certified
• NF X 15-211 compliant
• Storage of flammable, corrosive and toxic substances
• The adsorption capacity and filter system of the activated carbon filters are certified according to NF X 15-211.
• Complies with Articles R. 5132-66 and R. 5132-68 of the Health Law
• Compliant with INRS recommendations
• Available in various configurations: 1, 2, 3 or 4 chambers
• Easy replacement of the activated carbon filter
• Viewing window on the front for immediate filter check
• Standardized labeling included in delivery
• No changes to the building structure are required
• Fan compliant with CE specifications
• Activated carbon filter tested according to standard NF X 15-211
TECHNICAL DATA
Reference AF22+
Number of doors: 1
Number of compartments / compartments: 2
Shelves 8
Drip tray 2
Retention capacity (L) 35
External dimensions HxWxD (mm) 1940 x 800 x 650
Internal dimensions HxWxD (mm) 1660 x (2 x )380 x 500
Load capacity 40
Storage capacity (L) 140
Power rating (W) 63
Fan noise level 60.00
Weight (kg) 0.00
Code number 94032080
