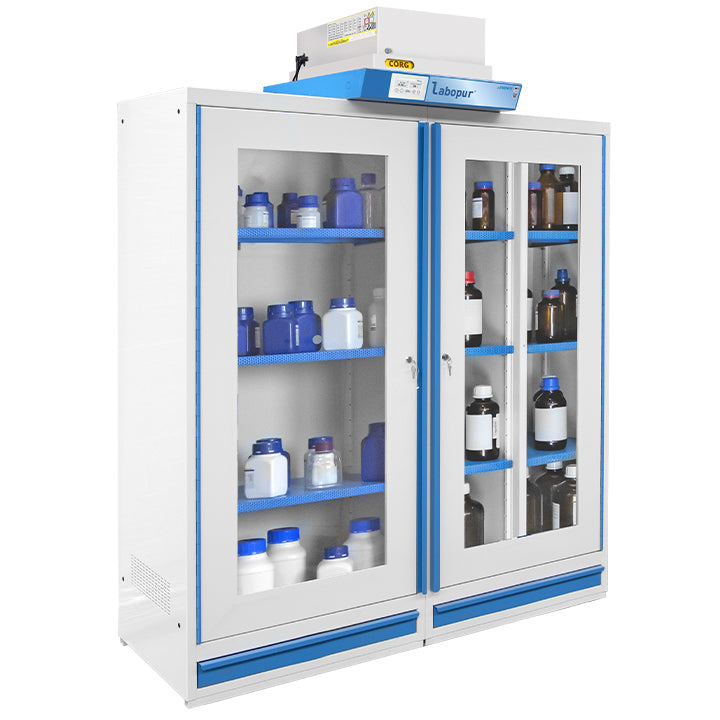

RANGE 12+ - Steel filter ventilation cabinet - two doors - three compartments
ADVANTAGES
• CE certified
• NF X 15-211 compliant
• Storage of flammable, corrosive and toxic substances
• The adsorption capacity and filter system of the activated carbon filters are certified according to NF X 15-211.
• Complies with Articles R. 5132-66 and R. 5132-68 of the Health Law
• Compliant with INRS recommendations
• Available in various configurations: 1, 2, 3 or 4 compartments
• Perforated shelves
• Viewing window on the front for instant filter view
• Activated carbon filter tested according to standard NF X 15-211
• Light control to monitor the proper functioning of the fan
• Standardized labeling included in delivery
• No changes to the building structure are required
• The fan complies with CE specifications
TECHNICAL DATA
Reference AF43+
Number of doors: 2
Number of compartments / drawers: 3
Shelves 4

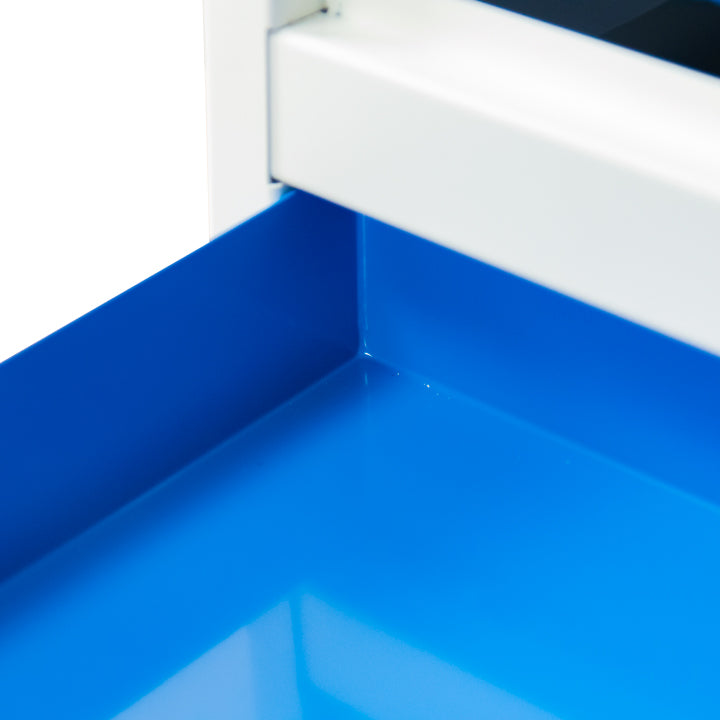

Drip tray 3
Retention capacity (L) 50
External dimensions HxWxD (mm) 1940 x 1600 x 650
Internal dimensions HxWxD (mm) 1660 x (1 x )780+(2 x )380 x 500
Load capacity 60
Storage capacity (L) 260
Power rating (W) 63
Fan noise level 60.00
Weight (kg) 0.00
Code number 94032080
