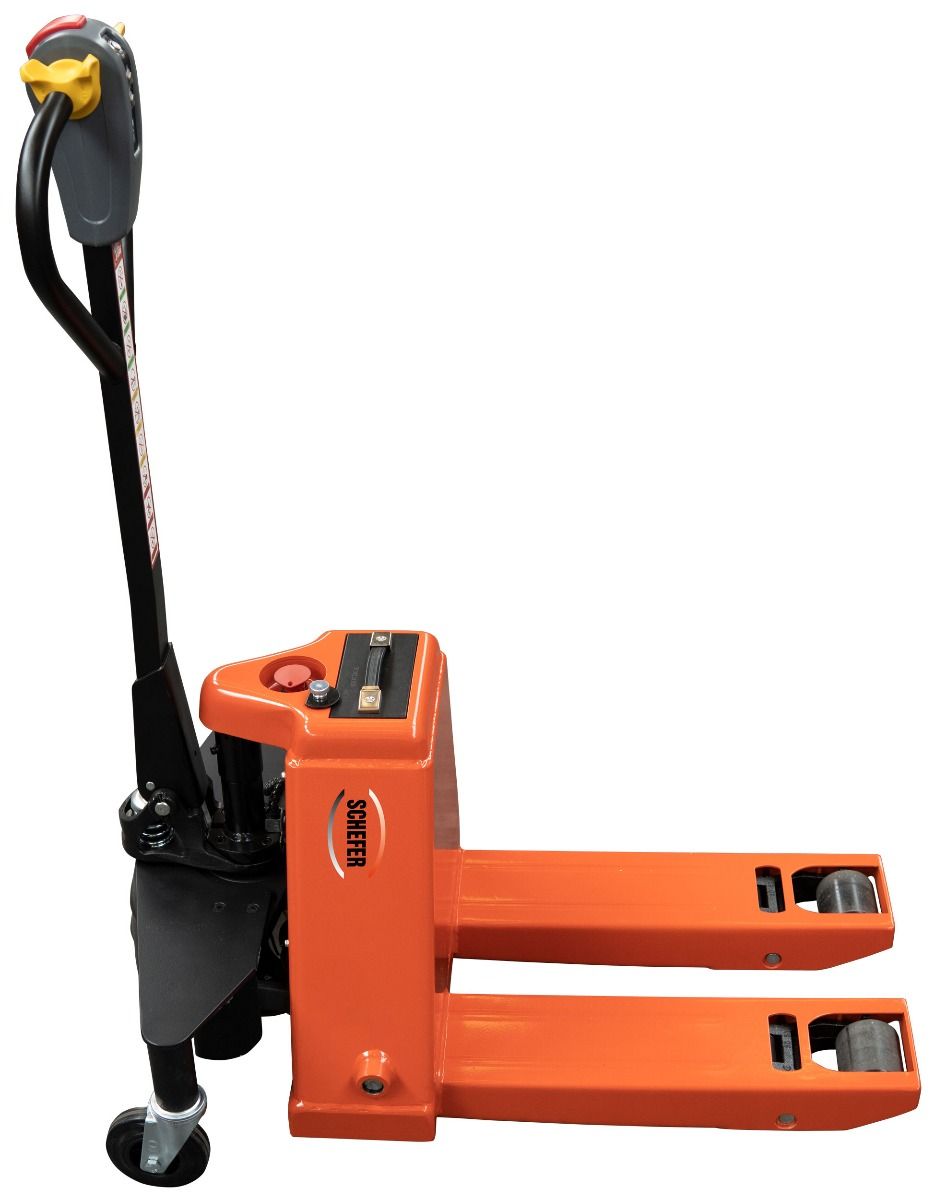

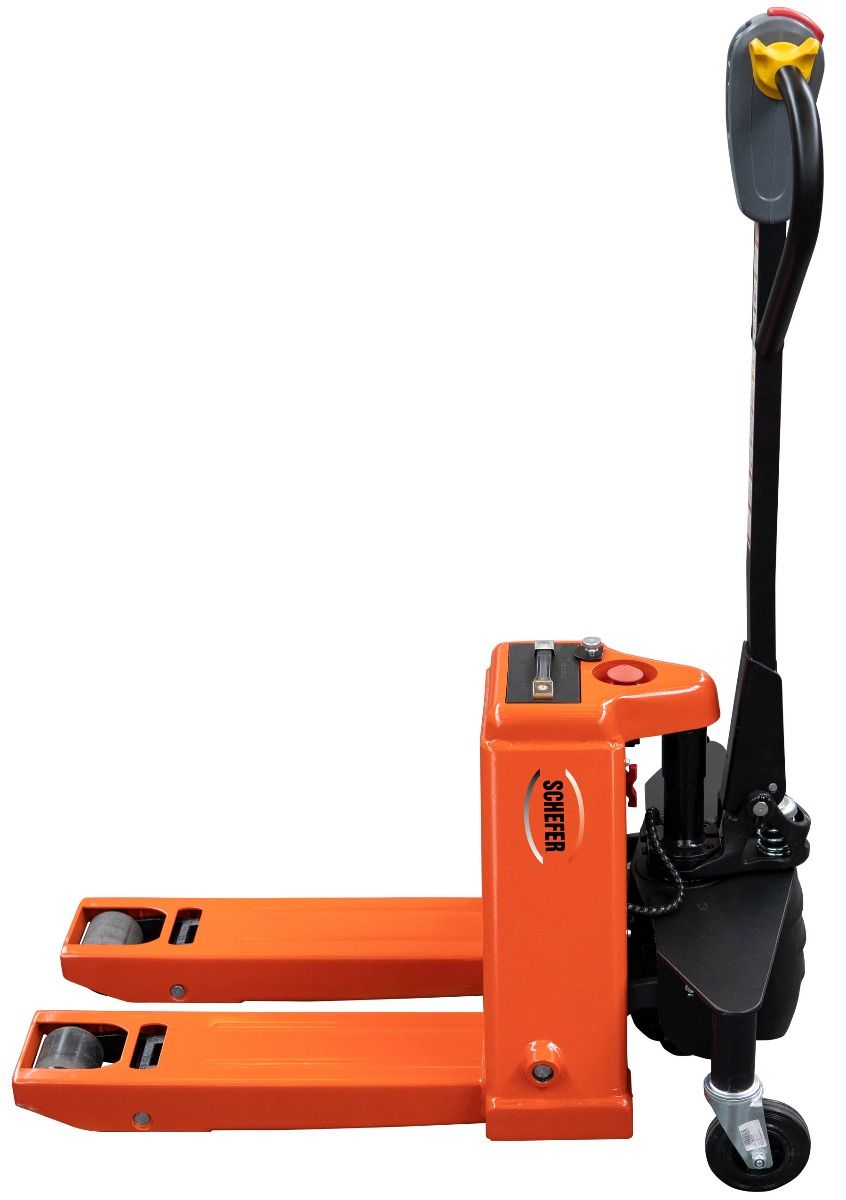

Changing 48 volt forklift batteries made easy – with the Semibatt battery changing trolley from Schefer.
The low weight and the specially designed, yet compact dimensions make the Semibatt extremely maneuverable.
With its electric lifting device and electric drive motor, heavy loads or longer distances can be easily handled.

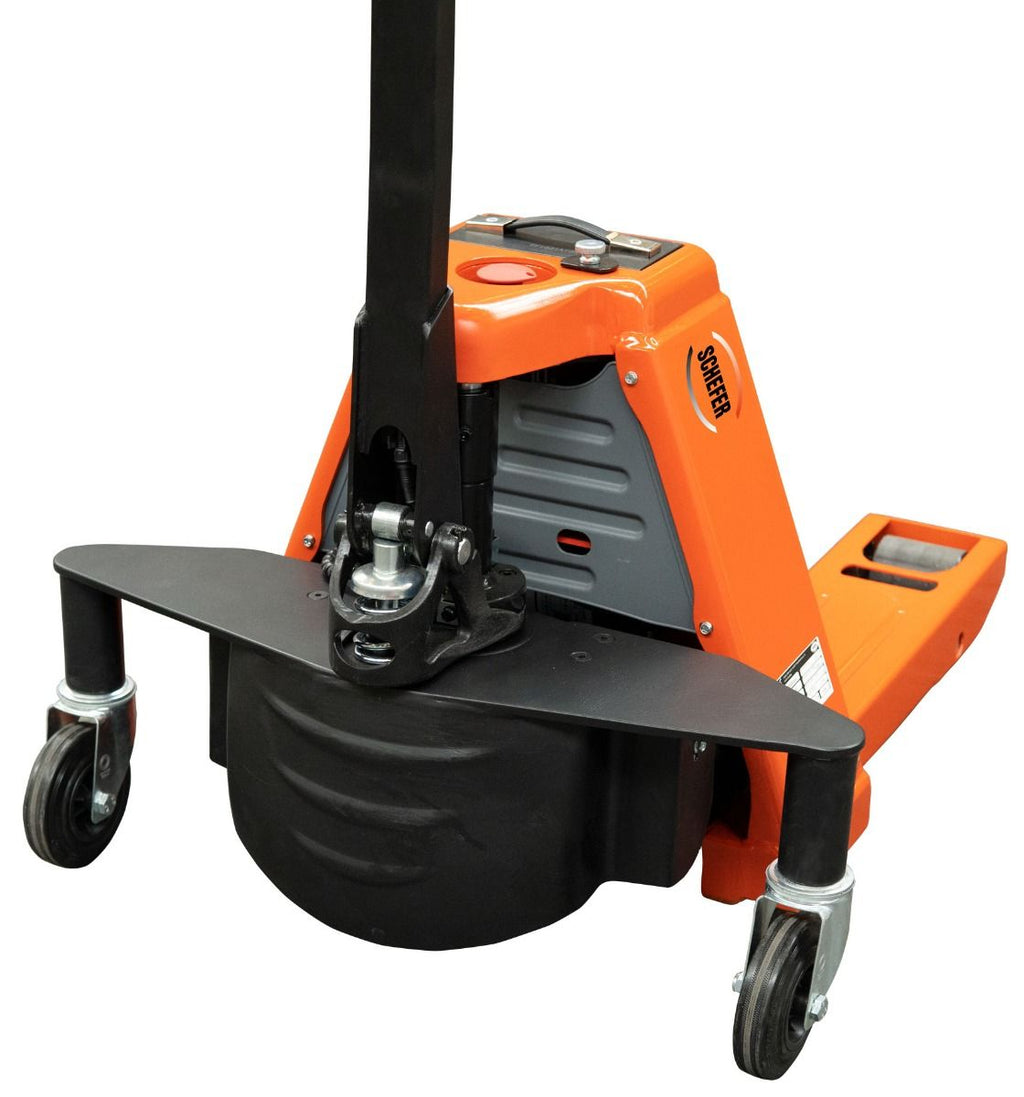

The standard side stabilizing wheels ensure safe cornering.
The drive technology is powered by a modern 48V/10 Ah lithium ion battery.
Comes standard with emergency stop switch, discharge indicator, electromagnetic brake and external charger.
The Semibatt from Schefer is specially designed to accommodate a platform with lateral centering aid.
In this combination, the Semibatt system with platform precisely encompasses the forklift battery on the sides.
Once secured, the forklift battery can be lifted and moved to the next charging station.
The insert frame should be inserted now at the latest.
The insert frame raises the forklift battery by a certain number of centimeters.
Equipped in this way, the system works regardless of uneven ground or worn forklift tires.
The entire process can be performed by one person.
The battery platform (FSTYPE3) and the insert frames (WB5ZE5-S or WB5ZE6-S) are only available in combination with the Semibatt battery changing trolley.
Temperature range: 0-45 C
Load capacity, kg: 2000
Load center, mm B: 290
Steering angle drawbar: 90
Weight (with battery), kg: 114
Fork width, mm J: 160
Fork length, mm H: 580
Wheel type: Polyurethane
Drive wheel X, mm: 140x55 P
Fork rollers Y, mm: 80x90 P
Number of wheels: 1X 2Y
Stroke, mm E: 105
Drawbar height max., mm A: 1310
Fork height min., mm F: 85
Total length, mm G: 990
Total width, mm N: 720
Total fork load carrying width, mm Q: 450
Ground clearance, mm C: 11
Speed loaded, km/h: 4
Gradeability loaded, %: 6
Brake: electromagnetic
Drive motor, kW: 1.0
Lifting motor, kW: 0.8
Battery, V/Ah: 48/10 Lithium
Battery weight +/-5%, kg: 5
Fork thickness, mm D: 55
Charger: external
