Key features
Max. power (LTP) [kVA/kW] 60.0/48.0
Continuous power (PRP) [kVA/kW] 54.0/43.2
Nominal voltage [V] 400/230
Frequency [Hz] 50
Rated current 3~ (PRP) [A] 78
Power factor [cos ϕ] 0.8
Main switch [Pole] 4
Sockets: 1x CEE 400V / 63A
1x CEE 400V / 32A
1x CEE 400V / 16A
1x 230V / 16A
Terminal block
Dimensions and weight
Dimensions L x W x H [mm] 2650 x 1110 x 1660
Weight approx. [kg] 1482
Tank capacity [l] 260
autonomy
Runtime at 75% load [h] 31.9
Sound power
Sound power level LWA [dB(A)] 94
Sound pressure level LPA (7 m) [dB(A)] 69
Installation data
Air volume [m³/min] 2.97
Exhaust gas volume at PRP [m³/min] 8.3
Exhaust gas temperature 760
Max. permissible exhaust back pressure [kPa] 22
Motor
FPT brand
Model F34TEV1PV.S550
Emissions standard Stage V
Number of cylinders, engine and arrangement: 4
Cooling system water-cooled
Engine displacement [cm³] 3400
Compression ratio 17:1.0
Engine power (COP) [kW] 54
Engine power (PRP) [kW] 54
Engine power (LTP) [kW] 55
Speed [rpm] 1500
Electronic/CR speed control
Starting system: electric start
On-board voltage [V] 12
Battery capacity [Ah] 100
Fuel: Diesel
Specific fuel consumption at 75% PRP [g/kWh] 171
Oil quantity [l] 9.5
Coolant quantity [l] 5.1
Consumption at 75% load PRP [l/h] 8.15
Fuel consumption at 100% load PRP [l/h] 13.6
Generator brand MeccAlte ECP 32-2M/4C Generator type synchronous Insulation class class H Voltage regulation electronic Protection class [IP] 23 Number of poles 4 Frequency [Hz] 50 Frequency tolerance [%] ±1 Voltage stability at speed deviation -5% +30% [%] 1 Power factor [cos ϕ] 0.8 Efficiency at 75% load [%] 90.7 Voltage regulator DSR THD Full load LL/LN [%] 2.1/2.1 THD No load LL/LN [%] 2.7/2.7 THF [%] <2 Short-circuit current [%] >300
Features
Soundproofed hood – extra quiet
Engine compliant with emissions standard Stage V

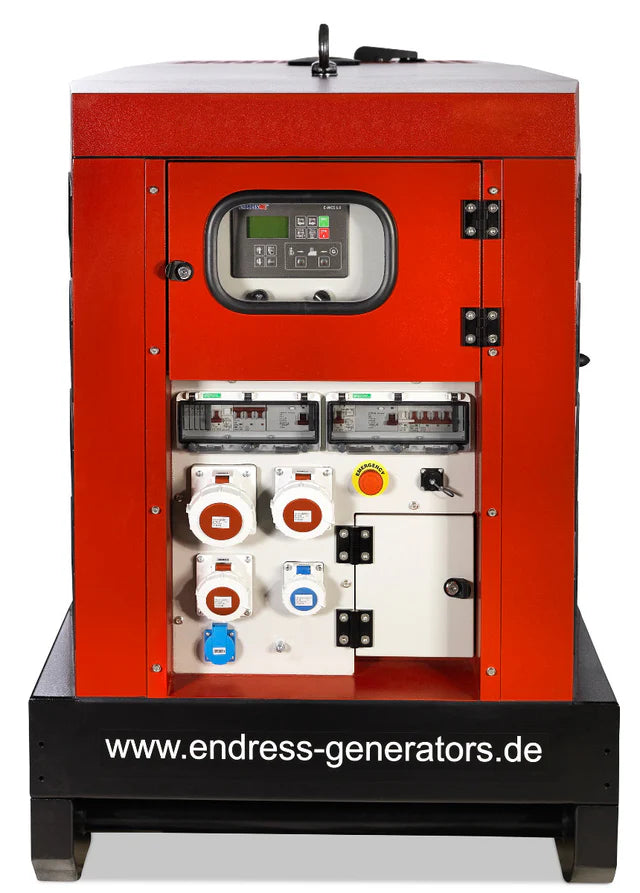

Manual/automatic control panel in IP 54
Base frame with continuous forklift pockets and impact protection
Galvanized hood for increased corrosion protection
Large steel tank for long operating times

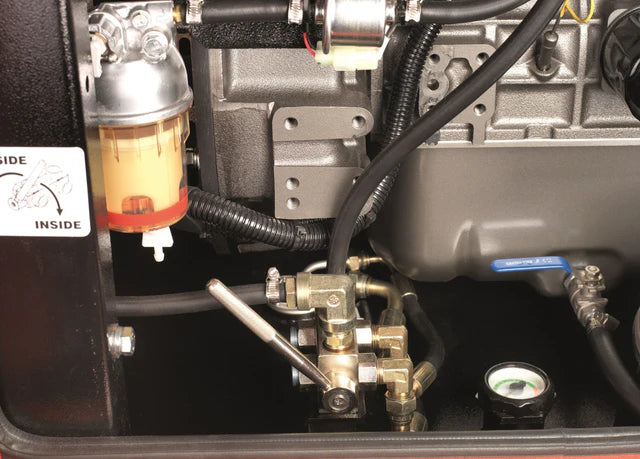

Outlet for external refueling including three-way fuel tap
Liquid collection tray to protect the environment
Standard preparation for coolant preheating
Battery master switch
Manual oil extraction pump
Remote start connection
Diesel filter with water separator
Connection for 230 V / 16 A battery charging
Terminal block
Protection from hot engine parts
document case
