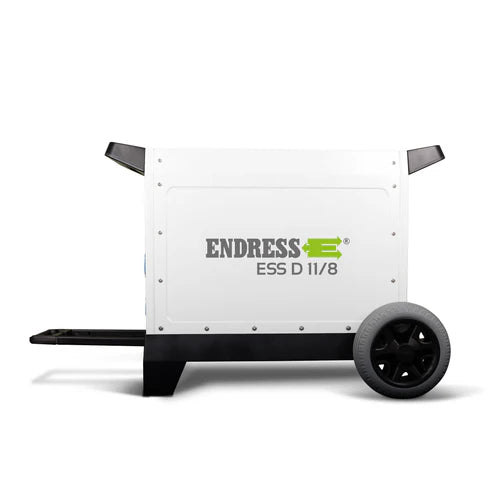

Three-phase power up to 13 kW with a capacity of 8 kWh is now also available in a mobile version. Simply extend the handle and, thanks to the permanently installed wheel set, take the power wherever it is needed.
How does that work? With the ENDRESS ESS D 1 1/8 !
The ESS D 11/8 is the ideal power source for indoor and outdoor use. Thanks to its IP65 protection rating , the device is dustproof and protected against water jets. A rustproof alloy and integrated plastic further protect the energy storage unit from external influences.

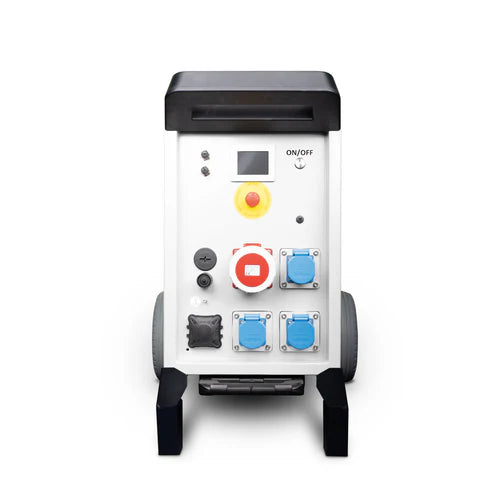

There are no restrictions when connecting appliances, as the ESS D 11/8 is equipped with both a CEE 400 V / 16 A socket and three standard 230 V / 16 A sockets. With a total power output of over 1,000 W, you can operate one or more devices for up to 7 hours.
Once the lithium-ion batteries are depleted, they can be recharged in just 2 hours by connecting them to a 400V outlet. Charging also works seamlessly via the standard mains power supply (5 hours at 230V) or with a balcony solar power system. The ESS D 11/8 is conveniently operated via touchscreen.
In short: The ESS D 11/8 is an 80kg lightweight, mobile energy storage device with alternating and three-phase current for continuous load and high power.
- Whisper-quiet, clean and maintenance-free
- Household and three-phase current for continuous load and high power
- Protection class IP65
Technical data
|
|
| Battery capacity |
8.9 kWh |
| Net capacity |
8 kWh |
| Cell technology |
Lithium-ion NMC |
| Charging methods |
230 V, 400 V |
| Maximum discharge power |
13 kW |
| Continuous discharge power |
11 kW |
| Maximum charging power |
4.4 kW |
|
|
|
|
| Weight approx. [kg] |
80 kg |
| Dimensions L x W x H [mm] |
944 x 357 x 596 |
| electrical outlets |
1 x CEE 400 V / 16 A
3 x 230 V / 16 A
|
| Temperature range charge |
0°C to +40°C |
| Temperature range discharge |
-10°C to +45°C |
| Protection class |
IP65 (dust and water jet protection) |
| Security features |
All-pole disconnection, over- and under-temperature shutdown, over- and under-voltage shutdown, redundant overcurrent shutdown, patented overcurrent protection per battery cell, insulation monitoring |
| conformity |
RoHS, CE |
| Certification |
EN 62477-1, EN 62040-1, UN38.3 |
