Power section
Continuous power output at 25°C [kVA] 15
Peak power at 25°C [kVA] 37.5
Nominal voltage [V] 400/230
Output rated current in island mode [A] 17.5
Output rated current in combination [A] 100
Protection class [IP] 54
Battery system
Nominal capacity [kWh] 30
Battery cycles 6000
Operating temperature range -10°C to 50°C
Charging time approx. 3.6
Aggregat
Weight approx. [kg] 850
Dimensions L x W x H [mm] 1200 x 800 x 1750
Remote start input Potential-free contact (CPC)
Input sockets: 1x CEE 400 V / 125 A
Sockets 2 x 230 V / 16 A
1 x CEE 400 V / 32 A
1 x CEE 400 V / 63 A
1 x CEE 400 V / 125 A
Monitoring LCD Display Battery Capacity
discharge current
Charging current
Battery temperature
Tension
Features

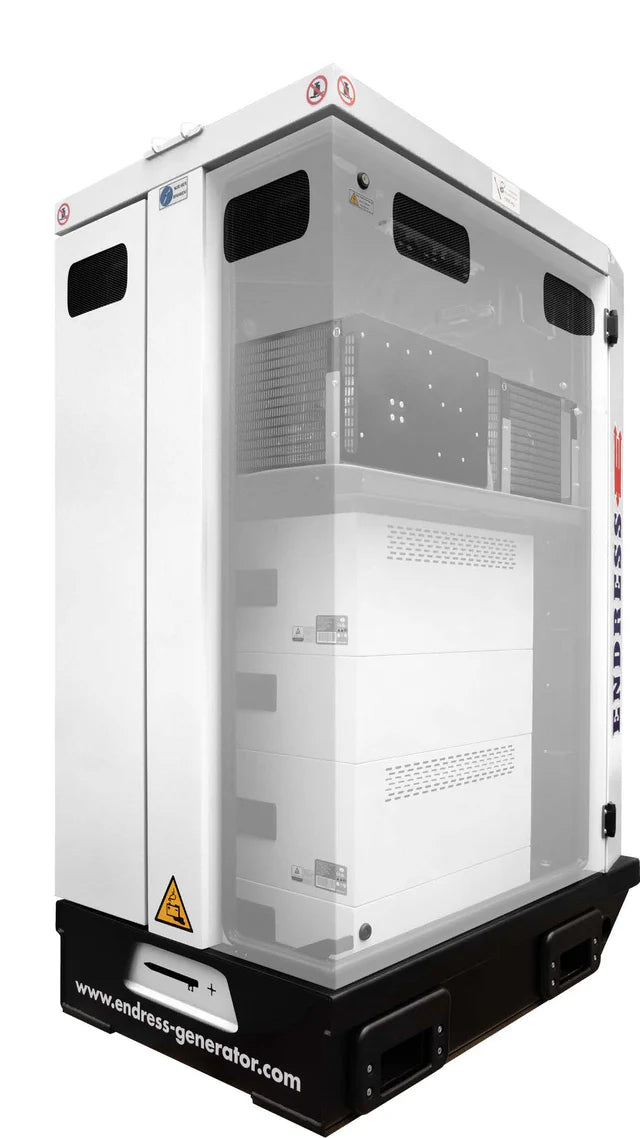

Innovative battery storage system with lithium-ion batteries

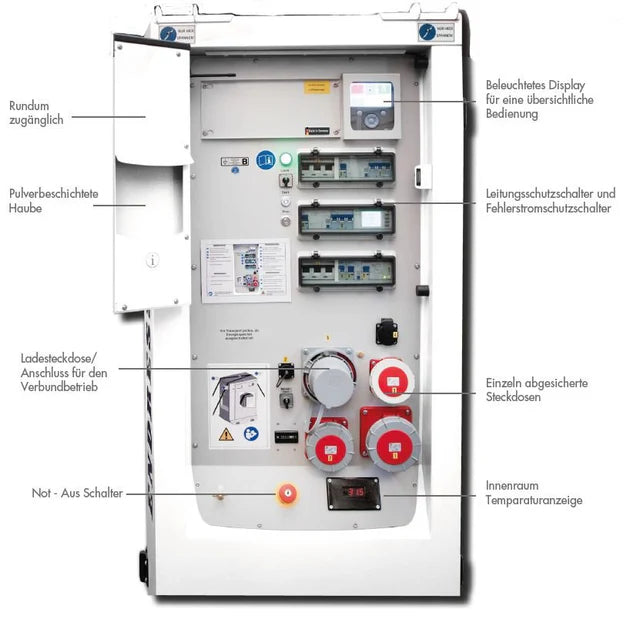

Safe and easy operation thanks to a clear control panel
Can be connected in parallel to increase capacity
crane loading eye
Base frame with continuous forklift pockets
Sophisticated cooling – air intake via air filter element from above for a dust-free interior.
Operating temperature range -10°C / +50°C
Panel with IP54 protection rating
Euro pallet dimensions (W 120cm x D 80cm)
Accessible from all sides through large maintenance doors
Protective measure: RCD (residual current device)
