If the animal is doing well, then the human is doing well too!
According to the Animal Welfare Ordinance for Livestock Husbandry, animals in intensive livestock farming must be adequately supplied with food, water, air and warmth.
To ensure animal welfare in the event of a power outage, a functioning and quickly deployable emergency power supply is necessary.
ENDRESS PTO generators offer a cost-effective emergency power supply. They are simply attached to existing agricultural tractors.
This not only saves you the investment in an additional drive motor, but also eliminates the regularly occurring maintenance costs of the motor thanks to our solution.
6 good reasons for an ENDRESS PTO generator:
- The drive is provided via a standard shaft connection on the tractor.
- The generator's diesel engine can be eliminated.
- No engine maintenance/wear
- Significant savings on the purchase price compared to a standard diesel generator.
- Small footprint
- Mobile use

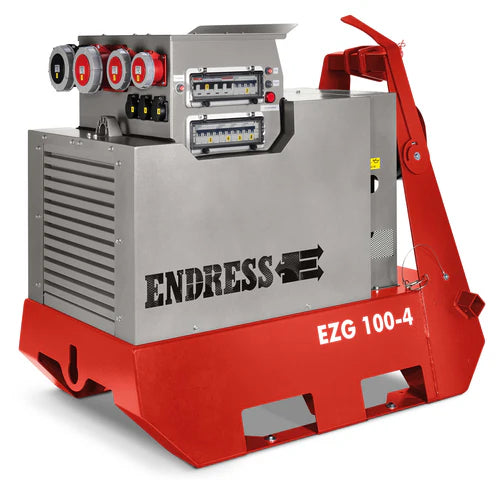

PTO generator EZG 100/4 II/TN-S
|
variant
|
feed-in operation |
|
generator
|
|
Continuous power output [kVA/kW]
|
100.0/80.0 |
|
Nominal voltage [V]
|
400/230 |
|
Voltage regulation
|
Generator PRO22S D/4 100KVA |
|
Rated current [A]
|
144.3 3~ |
|
Personal protection
|
Insulation monitoring |
|
Frequency [Hz]
|
50 |
|
Generator protection class [IP]
|
44/54 |
|
Recommended tractor power approx. [HP]
|
200 |
|
Rated PTO speed
|
750 |
|
Category 3-point suspension
|
3 |
|
Weight approx. [kg]
|
560 |
|
Dimensions L x W x H [mm]
|
1130 x 740 x 1007 |
|
socket combination
|
3 x 230 V/16 A
1 x CEE 400 V/16 A
1 x CEE 400 V/32 A
1 x CEE 400 V/125 A
1 x CEE 400 V/125 A, 1 h
|
