- Ideal for industry and crafts
- Clear design and high-quality workmanship
- Foot-operated upper beam, leaving hands free for material guidance
- Self-lubricating plain bearings
- Standard with removable top and bottom segments
- Spring damper, which facilitates the bending of sheet metal up to 2.0 mm
- Wide opening between upper and lower beam of up to 50 mm
Epple Machines Bending Machines
Bending machines from Epple Maschinen cover a wide range of applications – from compact devices for the ambitious home or craftsman up to High-performance machines such as for the Sheet metal processing on an industrial scale are needed.
Precise edging – made easy
The folding machine plays a key role in sheet metal processing. It can be used to produce robust metal plates Precise bending to achieve perfectly fitting edges. Whether simple angle pieces, sturdy fasteners, or large-format, tailor-made metal components: folded sheets are used in a wide variety of variations. And as a rule, they have always passed through a bending machine. Epple Maschinen offers a extensive range of folding machines that can be optimally integrated into the various workflows.

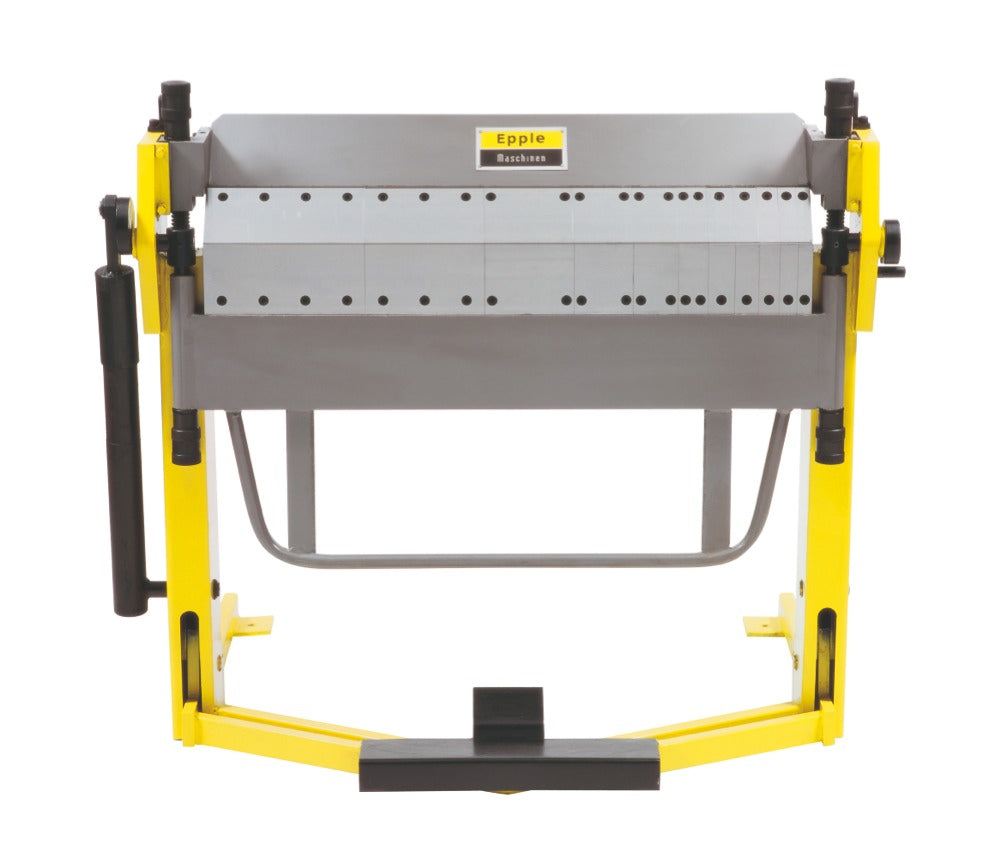

Mechanical folding machines
For occasional bending work, the mechanically based folding machine is a cheap and effective solution. Sheet metal pieces are Lever mechanism with muscle power bent into the desired shape. Depending on the model, sheets with thicknesses of 1.5 to 2.5 millimeters (with a material hardness of up to 48 Rockwell) can be processed over a length of up to 2,020 millimeters. All mechanical folding machines from Epple Maschinen allow a maximum Bending angle of 135 degrees . Intelligent features such as the Foot-operated upper scale , which leaves the hands free for material handling, or self-lubricating plain bearings for consistently smooth operation are standard on all models. The consistent use of Spring dampers also reduce physical strain even when processing thicker sheets. Epple Maschinen mechanical folding machines: AKB 1.020-2.0, AKB 1.020-2.0 G, AKB 2.020-2.0.
Electric folding machines
If edging is a frequently recurring routine task in the company, the use of a motor-driven bending machine recommended. For bending lengths of 2,000 to 3,050 millimeters – even on an industrial scale – electric bending machines from Epple Maschinen are the tool of choice. Powerful electric motors allow (depending on the model) the bending of sheet metal Up to a thickness of 5.0 millimeters , with a maximum bending angle of 130 or 135 degrees, and a throughput of up to 2,000 millimeters. The electric bending machines from Epple Maschinen are also characterized by clever product features that increase performance and improve operating comfort. A clearly laid-out control panel is standard on all models, as are the foot-operated upper scale and self-lubricating plain bearings. Products: AKB 2.020-3.100 E, E-AKB 2.050-3.100 E E-Line
Electromagnetic bending machine
Completely new possibilities for sheet metal processing are provided by magnetic folding machine by Epple Machines . Metals up to 1.6 millimeters thick (max. 48 Rockwell hardness) can be processed over a length of 1,250 millimeters. Effortless and extremely precise edging . Further equipment highlights of the device are a multi-stage segment division into frequently used bending lengths from 25 to 1,250 millimeters, a non-slip clamp across the entire width and the option of degree-precise bending angle adjustment up to 180 degrees . Finally, the magnetic folding machine with a weight of only 175 kilograms a true lightweight and is therefore also suitable Ideal for mobile use , for example on construction sites. Get the magnetic folding machine MAKB 1,250-1.6.
Sheet metal processing at the highest level
Like all machines from Epple Maschinen, our folding machines are the strictest demands on processing quality, robustness and performance During development, we were guided by the practical requirements of professional use and paid the utmost attention to ease of use and ergonomics To get a better idea of the performance of our bending machines, it is worth taking a look at the detailed product videos in the news section – or visiting one of the numerous trade fairs where we are represented with our bending machines.
Technical data
| Bending length |
max. 1,020 mm |
| Sheet thickness (hardness ≤ 48 Rockwell) |
max. 2.0 mm |
| Bending angle |
max. 135°
|
| passage |
50 mm |
| Dimensions (L x D x H) |
1,340 x 620 x 1,180 mm |
| Weight |
320 kg
|
| EAN |
4260364291193 |
