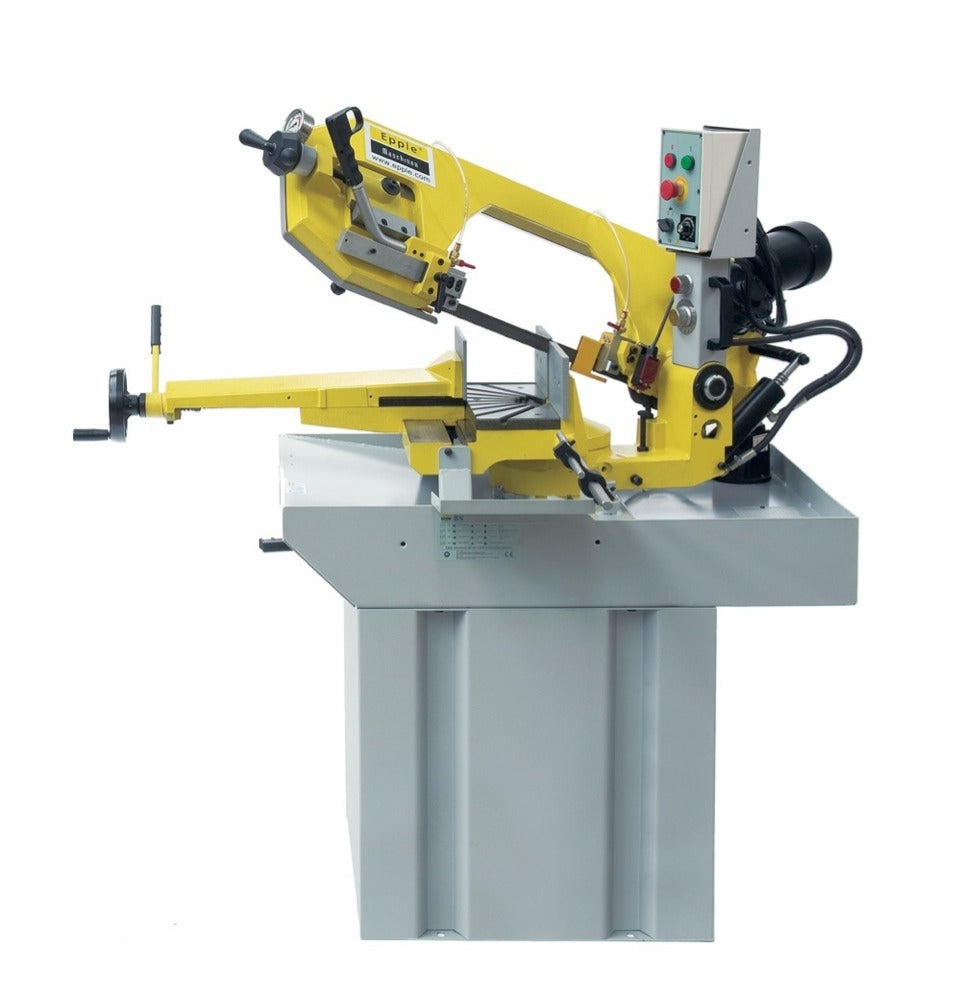

Metal band saw with infinitely variable cutting speed, hydraulic lowering of the saw arm, coolant system and cutting capacity of 225 mm
- Stepless speed control
- Frequency converter
- Coolant collecting tray and coolant system
- Lowering of saw arm continuously adjustable
- Saw arm can be swivelled 60° to the right and 45° to the left
- Material stop
- Analog saw blade tension indicator for optimal cuts to protect the saw blade
- Coolant unit with dosing and shut-off valve as standard
- quick-release vice
- Clear, ergonomic control panel
- Robust base frame for tough everyday use
- Automatic limit switch
Technical data
| Cutting performance round |
225 mm |
| Cutting performance square |
245 x 150 mm |
Miter cut 45°
|
around 130 mm
flat 140 x 100 mm |
Miter cut 60°
|
around 90 mm
flat 90 x 110 mm |
| Miter cut -45° |
around 150 mm
flat 145 x 215 mm |
| miter |
from - 45° to + 60° |
| Cutting speed |
20 - 90 m/min |
| Saw blade length |
2,480 x 27 x 0.9 mm |
| Engine power |
400 V / 50 Hz / 1.5 kW |
| Dimensions (L x D x H) |
1,380 x 705 x 1,500 mm |
| Table height material feed |
980 mm |
| Weight |
300 kg |
| EAN |
4260364290639 |
