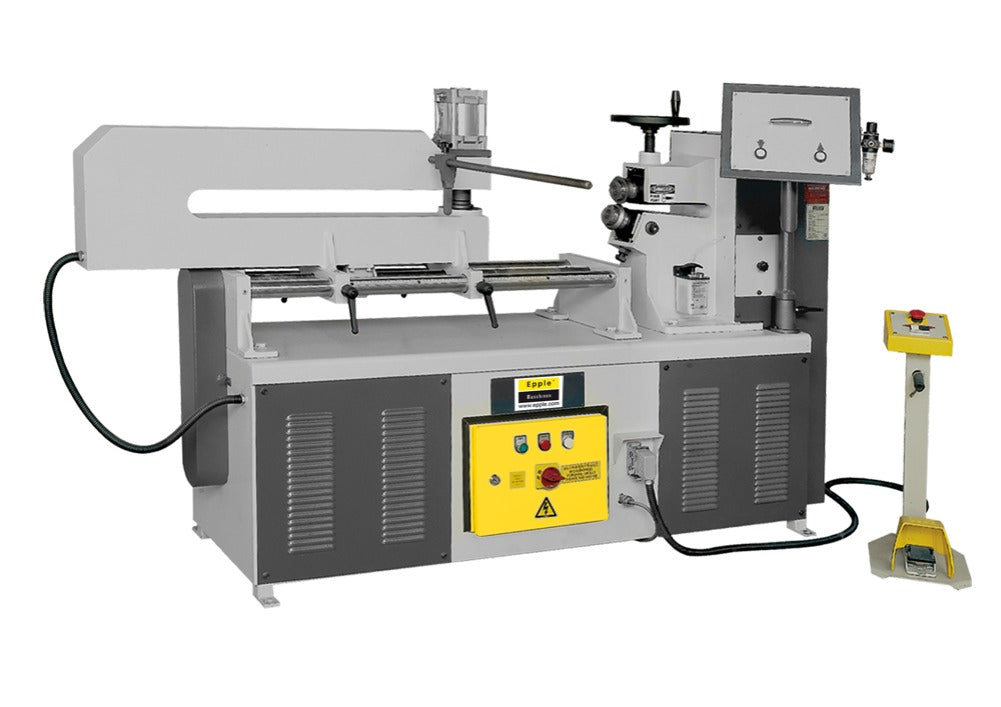

Circular shears for materials with a maximum sheet thickness of 3.5 mm (St 37)
Electric circular shears for cutting various materials.
- Workpiece clamping hydraulic, knife adjustment manual
- Extremely stable and robust welded construction
- Knife made of special steel K2379, bronze bearing
- Knives are hardened, adjustable and resharpenable
- Gear motor with braking system
- Hydraulically driven sheet centering system
- Very good price-performance ratio
Technical data
| Sheet thickness (St 37) |
max. 3.5 mm |
| Min. workpiece |
200 mm |
| Max. workpiece |
1,200 mm |
| Cutting speed |
6.1 m/min |
| Engine power |
400 V / 50 Hz / 2.2 kW |
| Discharge |
750 mm |
| Neck width |
250 mm |
| Dimensions (L x W x H) |
2,000 x 600 x 1,400 mm |
| Weight |
750 kg |
| EAN |
4260364294521 |
