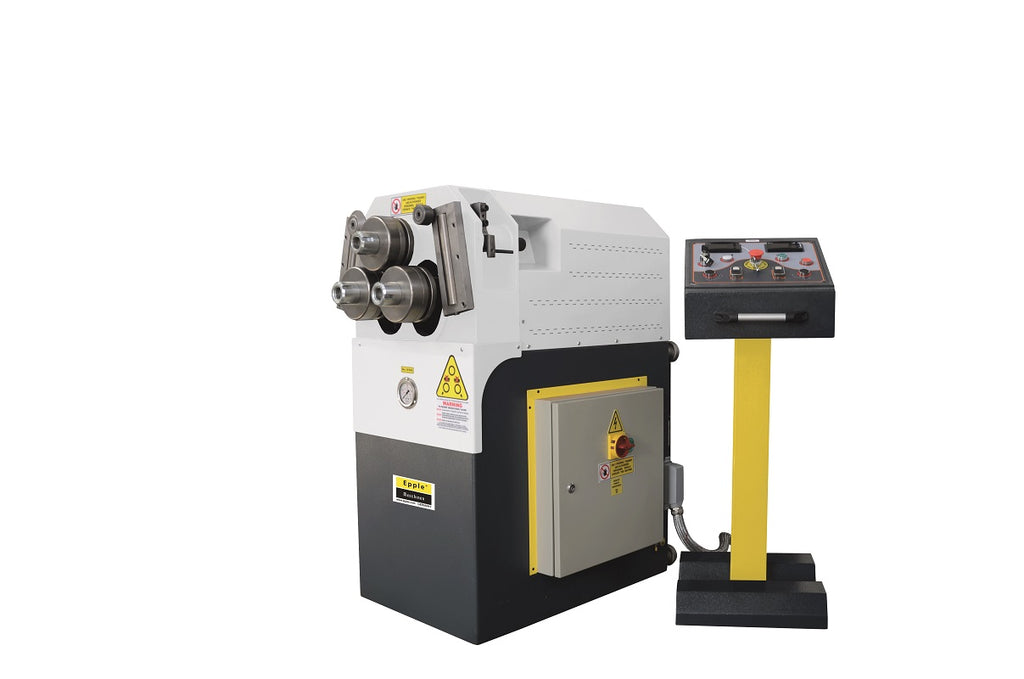

Profile roller with foot operation, horizontal and vertical working option
The E-PW 40 H model is particularly suitable for smaller diameters and has 2 additional guide rollers.
- Heavy duty
- Hydraulic adjustment of the upper roller
- 3 driven rollers
- Horizontal and vertical working options (machine can be folded)
- Hardened standard rollers
- Shafts are hardened and ground
- Lateral straightening rollers, continuously adjustable for spiral bending
- Equipped with brake motor
- Control panel with foot control
Technical data
| axle diameter |
35 mm |
| upper roller diameter |
137 mm |
| lower roller diameter |
137 mm |
| Machine can be folded for horizontal use |
Yes |
| Speeds |
7 m/min |
| Engine power |
400 V / 50 Hz / 1.1 kW |
| Dimensions (W x D x H) |
1,050 x 530 x 1,250 mm |
| Weight |
350 kg |
| EAN |
4260364299533 |
