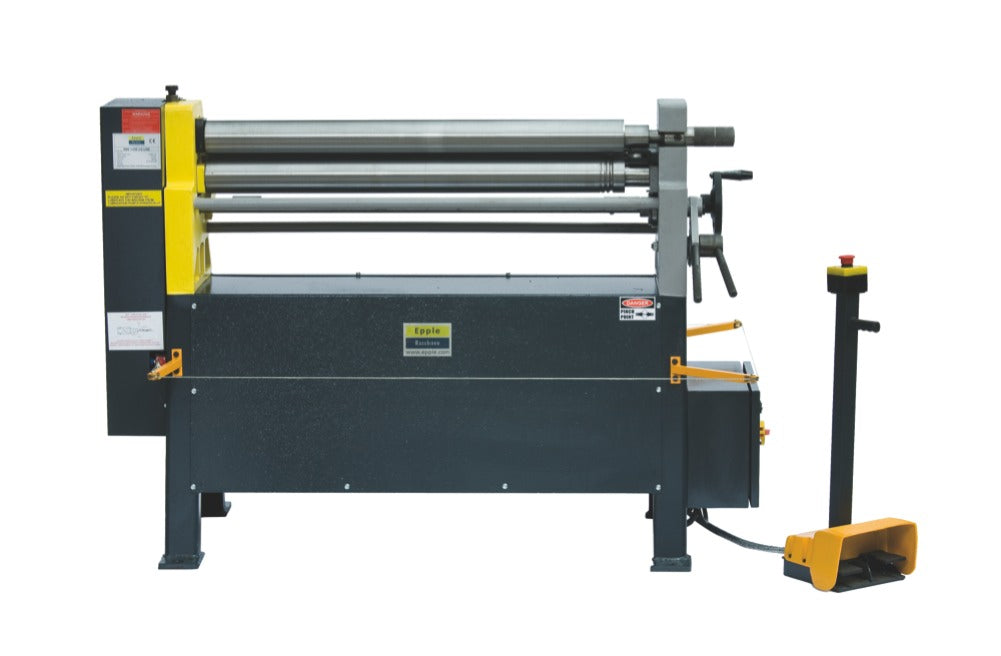

Three-roll bending machine with electric motor, for sheet thickness max. 3.0 mm, a roll length of 1,050 mm and hardened rolls
- Heavy, stable cast iron construction
- Rollers made of SAE-1050 quality steel
- Asymmetric 3-roller system with swiveling top roller and eccentric lock
- Lower roller adjustment with adjusting lever and eccentric
- Rear roller adjustment via handwheel
- Bottom and rear roller with wire insert groove
- With conical bending device
- The foot control leaves both hands free for material handling
- Electric motor 400 V / 1.1 kW / 1.5 kW
- Foot pedal for forward and reverse
- Safety device with emergency stop switch
Technical data
| Roller length |
max. 1,050 mm |
| Sheet thickness (St 37) |
max. 3.0 mm |
| Roller diameter |
90 mm
|
| Minimum bending diameter |
135 mm |
| Engine power |
400 V / 50 Hz / 1.1 kW
|
| Dimensions (L x D x H) |
1,630 x 700 x 1,200 mm |
| Weight |
455 kg |
| EAN |
4260364291490 |
