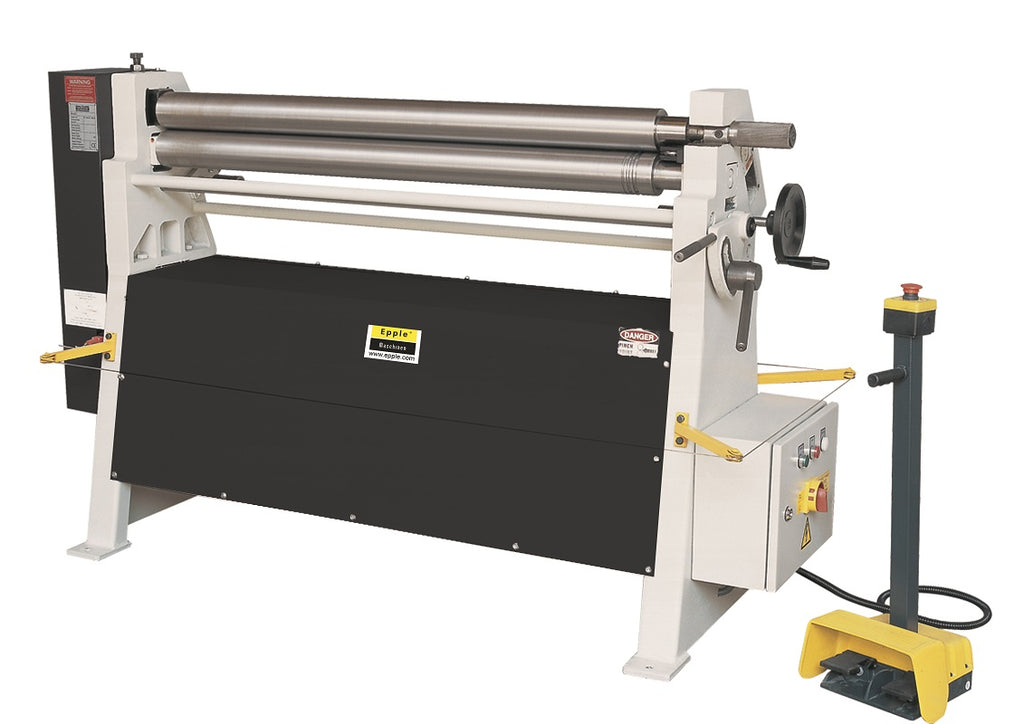

Three-roll bending machine with electric motor, for sheet thickness 1.5 mm and a roll length of 2,050 mm
- 3-roller system (asymmetric) with swiveling top roller
- Rear roller adjustment hydraulically supported
- Upper and lower rollers easily adjustable
- Lower roller adjustment with adjusting lever and eccentric
- Rear roller adjustment via handwheel
- Bottom and rear roller with wire insert groove
- The foot control leaves both hands free for material handling
- Safety device with emergency stop switch
Technical data
| Roller length |
2,050 mm |
| Sheet thickness |
1.5 mm |
| Roller diameter |
90 mm
|
| Roller speed |
6 m/min |
| Engine power |
400 V / 50 Hz / 1.5 kW |
| Wire insert grooves Ø |
4 / 7 / 10 mm |
| Dimensions (L x D x H) |
2,070 x 430 x 1,130 mm
|
| Weight |
715 kg |
| EAN |
4260364296327 |
