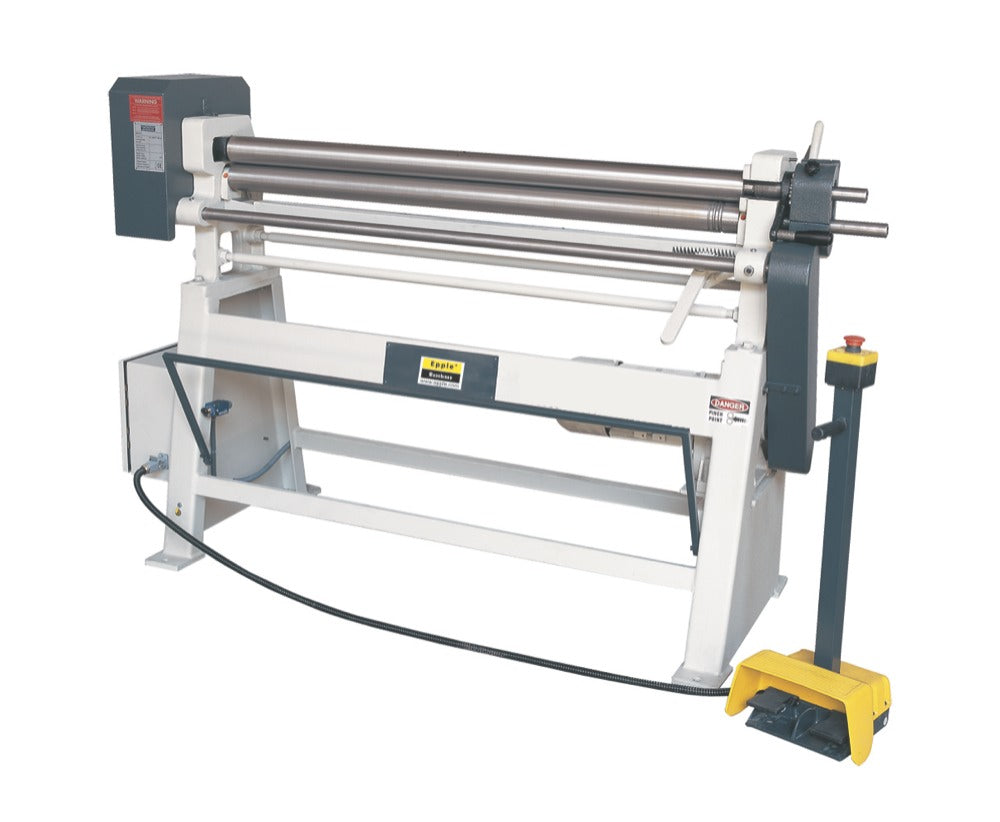

Three-roll bending machine with electric motor, for sheet thickness max. 1.5 mm, a roll length of 1,270 mm and hardened rolls
- Heavy, stable cast iron construction
- Rollers made of SAE-1050 quality steel
- Asymmetric 3-roller system with swiveling top roller and eccentric lock
- Lower roller adjustment with adjusting lever and eccentric
- Rear roller adjustment via hand lever
- Bottom and rear roller with wire insert groove
Technical data
| Roller length |
max. 1,270 mm |
| Sheet thickness (St 37) |
max. 1.5 mm |
| Roller diameter |
75 mm
|
| Minimum bending diameter |
110 mm |
| Engine power |
400 V / 50 Hz / 1.5 kW |
| Dimensions (L x D x H) |
1,830 x 700 x 1,160 mm
|
| Weight |
400 kg |
| EAN |
4260364291445 |
